Galaxy UD-2512LC
1.Printhead: dx5 printhead (F186000)
2.Printing media: vinyl, polyester,flex,back-lit film, PS Board, KT Board, PVC Foam Board etc
3.Printing Width 2.5m,Other size 1.6m,1.8m,2.1m,3.2m are available.
Advantage for UD printer:
1. Full aluminum platform, high quality and long life.
2. Self-developed automatic cleaning and capping system which make the operation and maintenance convenient.
3. X,Y axis AC servo motors, which is stable and durable..
4. Bearing and rail with less noise, low resistance and no vibration.
5. Individual color purging minmizes the waste of the ink
6. 3 way intelligent heater improve the printing quality
7. Adopt USB2.0 output system,which is faster and more flexible.
Specification:
Model | UD-2512LC | |
Print Head | DX5 | |
Number of Print Head | 2 Head | |
Max Printing Width | 2500mm | |
Print Speed (m2/h) | Print mode | Standard output(m2/h) |
Draft | 4 PASS 36 | |
Standard | 6 PASS 24 | |
Quality | 8 PASS 18 | |
High Quality | 8 PASS 18 | |
Backlit | 12 PASS 12 | |
Ink | Type | Solvent Ink / ECO Solvent Ink |
Color | 4 Color (C,M,Y,K) | |
Capacity | 1L per Main Tank of Each Color | |
Ink Supply System | Auto Ink Supply System | |
Media | Width | Maximum 2,580mm |
Type | Vinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board… | |
Auto Media Feeding System | Equipped Max media weigh 40kg | |
Auto Cleaning System | Anti-clogged flash function and capping system | |
Pre-heating & Drying System | Equipped | |
Clamp | Equipped | |
Print Interface | USB2.0 | |
Print Head Height | 2-10mm from media | |
Rip Software | Ultraprint, Maintop, Photoprint, Shiraz, Wasatch | |
Input Power | AC220v, 50HZ/60HZ | |
Machine Dimension | L3,780 x W990 x H1,260mm / 242KG | |
Package Dimension | L3,890 x W1,100 x H845mm / 443KG | |
Requirement | Temperature: 20-28 degree, Humidity: 40% - 60% | |
Photo for Reference:

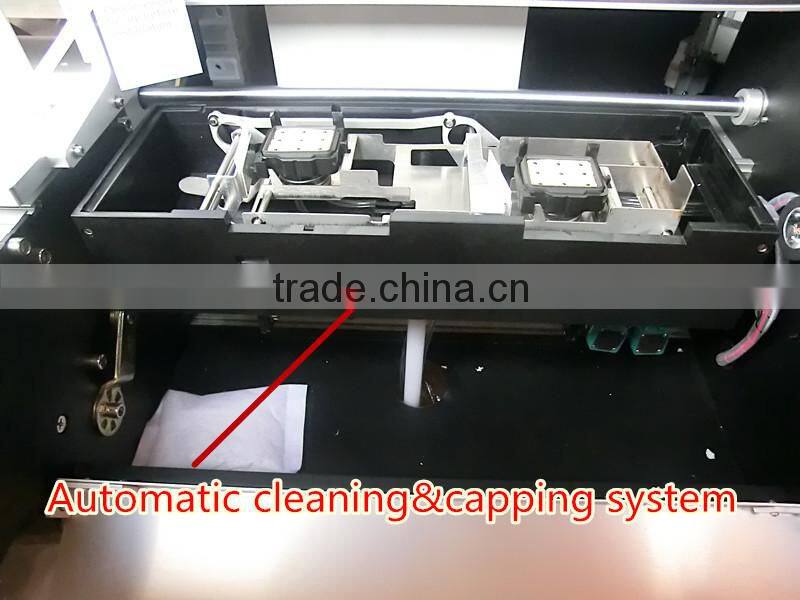

New design,automatic cleaning&capping system.

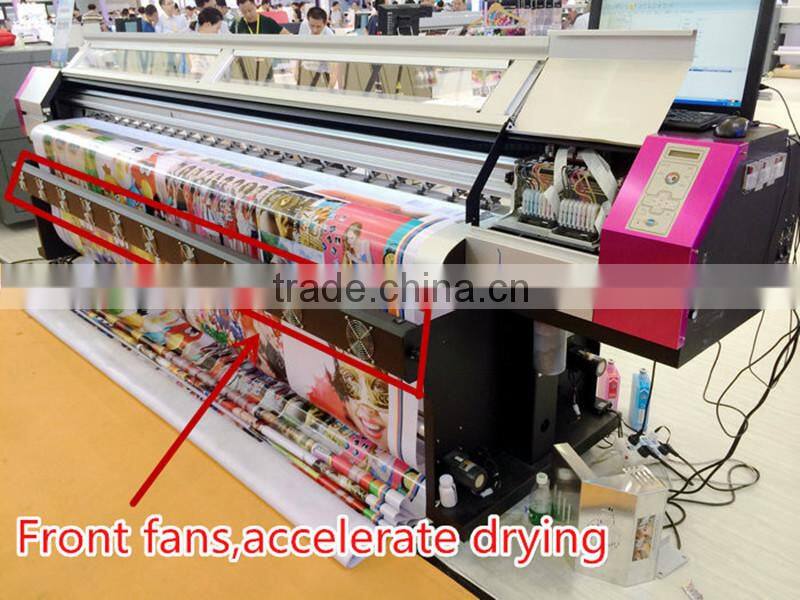

10 fans,accelerate drying of the printing!
Strong structure,ensure the stability of printing!
Continous ink system
strong&accurate media feeding&take-up system

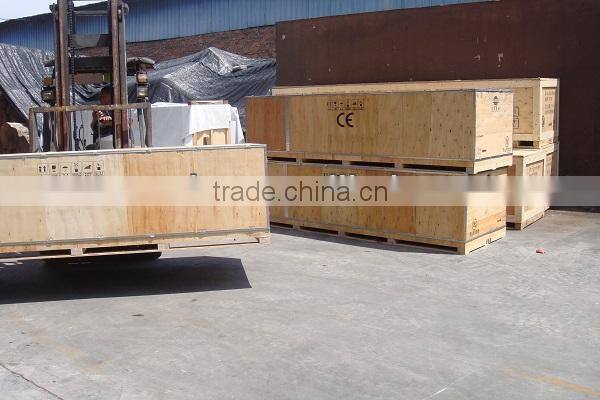

Packing:
The printer package in a wood box which is being protected .
Machine always be packed in the safe wooden box to against damagad . Tracking Number would be noticed to you.
