8kw Air-cooled Diesel Generator Set Price

                                               8kw air-cooled diesel generator set price

Technical Parameters for 8kw air-cooled diesel generator set price:

1. Generator Model: CL-8AG;

2. Output power：8KW/15KVA,

3. Rated Voltage: 400/230V;

4. Dimension （L X W X H）mm：1040*660*740;

5. Weight：245Kg;

6. Power factor: Cos=0.8(lagging);

7. Output socket: Single-phase socket or three-phase socket;

8. Bore*stroke(mm*mm): 86×72;

9. Compressed ratio: 20:01.

10. Cooling way: Air cooled;

11. Starting way: DC 12V electric;

12. Engine structure: 2-cylinder, four cycle, DI;

13. Engine Model: R2V820;

14. Lubricating capacity(L):1.7;

15. Rotating Speed:3000/3600RPM;

16. Displacement: 812L;

17. Oil used: SAE10W30(CD grade above);

18. Fuel used: 0#(summer) -10#(winter) -35#(cold winter) light diesel.

19. Fuel consumption under full loading (L/H):3.0;

20. Fuel tank capacity(L): 25;

21. Continuous running time (H): 8.3;

22. The regulation of rotating speed: Electronic speed.

23. Start motor capacity(V-KW): 12V 8.3kW;

24. Battery capacity(V-AH): 12V 45AH;

26. Alternator configuration: Brush, single bear 2 poles self-excited constant voltange with AVR;

27. Insulation Class: H degree.

Panel type for 8kw air-cooled diesel generator set price

Intelligent

Silent Type for 8kw air-cooled diesel generator set price

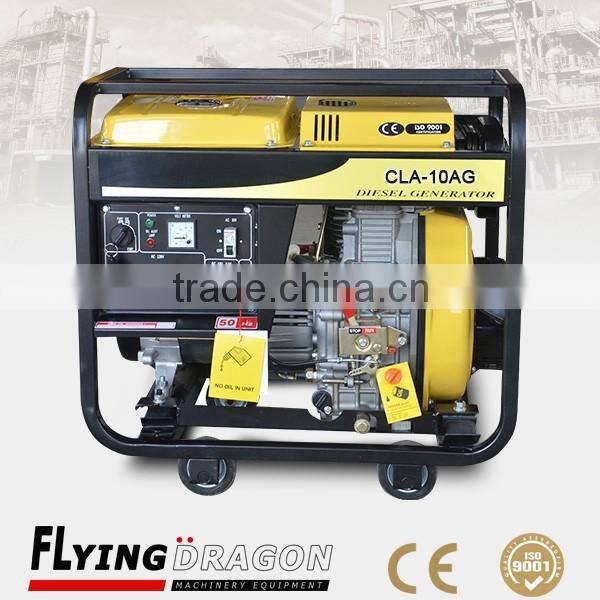

Open Type for 8kw air-cooled diesel generator set price

Packing Details of 8kw air-cooled diesel generator set price:
Packed with carton;

Delivery Details for 8kw air-cooled diesel generator set price:
7 working days after receiving the deposit.
