4KW Air-cooled Diesel Electric Generator, 5kva Home Use Mini Power Palnt

                                     4KW air-cooled diesel electric generator, 5kva home use mini power palnt

Technical Parameters for 4KW air-cooled diesel electric generator, 5kva home use mini power palnt:

1. Generator Model: CL-4AG;

2. Output power：4KW/5KVA,

3. Rated Voltage: 400/230V;

4. Dimension （L X W X H）mm：755*520*625(open type) 960*555*780(silent type);

5. Weight：103kgs(open type) 175kgs(silent type);

6. Power factor: Cos=0.8(lagging);

7. Output socket: Single-phase socket or three-phase socket;

8. Bore*stroke(mm*mm): 78*62;

9. Compressed ratio: 20:01.

10. Cooling way: Air cooled;

11. Starting way: DC 12V electric;

12. Engine structure: 2-cylinder, four cycle, DI;

13. Engine Model: 186F;

14. Lubricating capacity(L):1.7;

15. Rotating Speed: 3000/3600RPM;

16. Displacement: 296L;

17. Oil used: SAE10W30(CD grade above);

18. Fuel used: 0#(summer) -10#(winter) -35#(cold winter) light diesel.

19. Fuel consumption under full loading (L/H): 2.27

20. Fuel tank capacity(L): 12.5;

21. Continuous running time (H): 5.5;

22. Starting way: DC12V starting with electricity;

23. The regulation of rotating speed: Electronic speed.

24. Start motor capacity(V-KW): 12V 1.4kW;

25. Battery capacity(V-AH): 12V 30AH;

26. Alternator configuration: Brush, single bear 2 poles self-excited constant voltange with AVR;

27. Insulation Class: H degree.

Panel type for 4KW air-cooled diesel electric generator, 5kva home use mini power palnt:

Intelligent

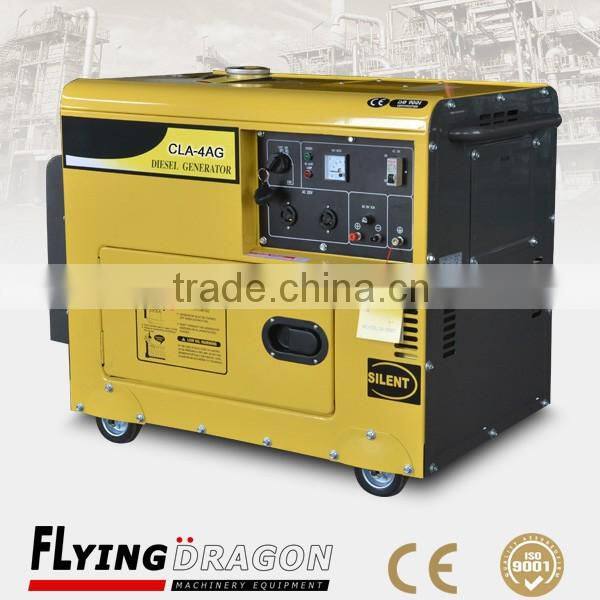

           Silent type for 4KW air-cooled diesel electric generator, 5kva home use mini power palnt

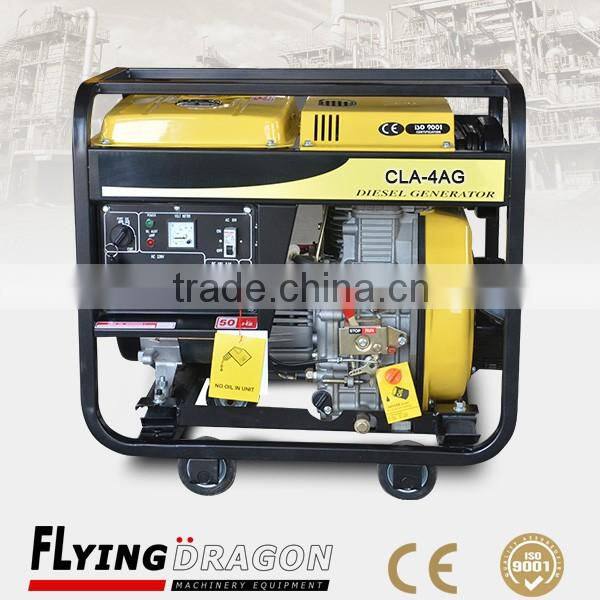

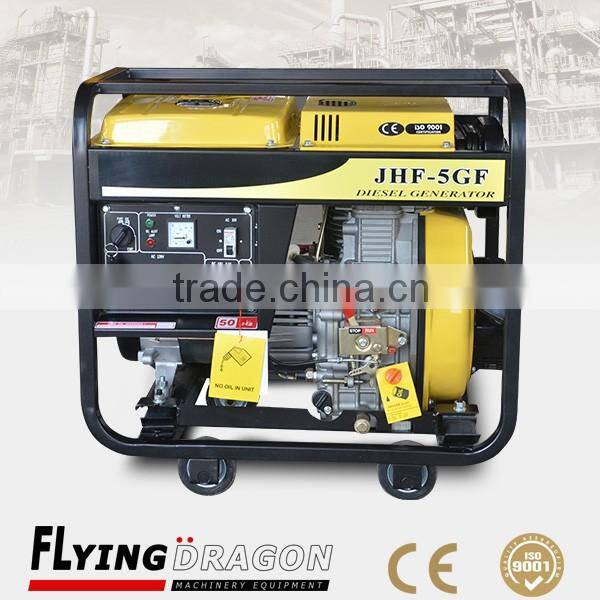

       Open type for 4KW air-cooled diesel electric generator, 5kva home use mini power palnt

Packing Details of 4KW air-cooled diesel electric generator:
Packed with carton;
Delivery Details for 4KW air-cooled diesel electric generator:
7 working days after receiving the deposit.
