Home > Products > air-cooled diesel generator > long time running safety and reliable household use electric power plant 10 kw air cooled mobile gensets

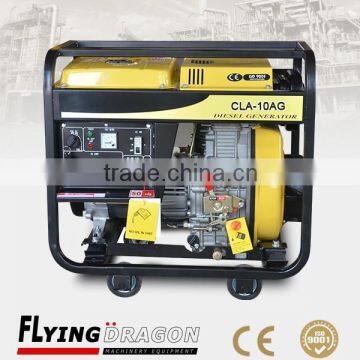

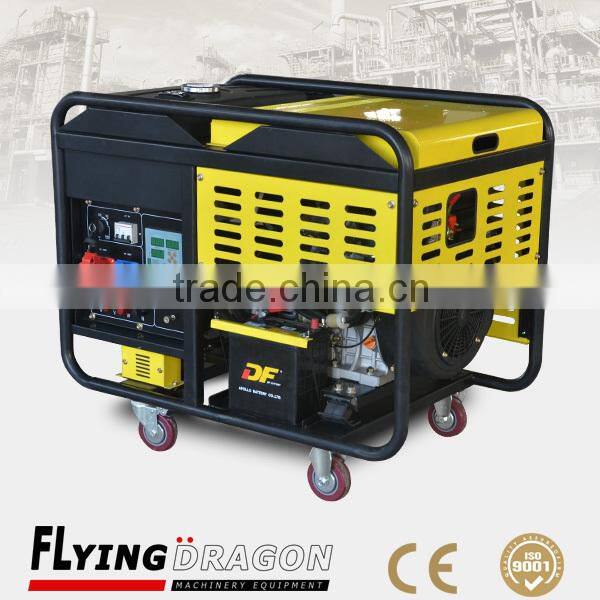

long time running safety and reliable household use electric power plant 10 kw air cooled mobile gensets
- 400 Set / Sets per Month
- SHANGHAI NINGBO QINGDAO
- T/T Credit Card
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | CHENLONG | Model Number: | CLA-10AG |
| Output Type: | AC Three Phase | Speed: | 1500 RPM OR 1600RPM | Frequency: | 50HZ OR 60HZ AC |
| Rated Power: | 10KW/12.5KVA | Rated Voltage: | 380V/230V | Rated Current: | 18A |
Product Description
Specification
Electric power plant portable 10 kw
Easy to transport
Ideal household standby power
Air cooled system
ISO and CE approved
long time running safety and reliable household use electric power plant 10 kw air cooled mobile gensets
The main parameters list for electric power plant portable 10 kw
| Item no | CLA-10AG |
| Out power | 10KW/12.5KVA |
| Rated voltage | 400V/230V |
| Rated current | 18A |
| Rated frequency | 50HZ AC or 60HZ AC |
| Power factor | Cos=0.8(lagging) |
| Insulation pretection | H |
| Alternator configuration | Brush, single bear 2 poles self-excited constant voltange with AVR |
| Panel type | Intelligent |
| Output scoket | Singl-phase scoket or three-phase scoket |
| Noise(7m)db(A) | 82 |
| Dimension(L*W*H)(mm) | 870*630*700 |
| Weight(kgs) | 195 |
| Engine model | R2V870 |
| Engine structure | 2-cylinder, four cycle, DI |
| Bore*stroke(mm*mm) | 88*72 |
| Total displacement(ml) | 875 |
| Compressed ratio | 20:01 |
| Cooling way | Air cooled |
| Lubricating way | Pressure & splashing |
| Starting way | DC 12V electric |
| Fuel used | 0#(summer) -10#(winter) -35#(cold winter) light diesel |
| Oil used | SAE10W30(CD grade above) |
| Lubricating capacity(L) | 1.7 |
| Start motor capacity(V-KW) | 12V 1.4kW |
| Battery capacity(V-AH) | 12V 45AH |
| Fuel consumption under full loading (L/H) | 4.2 |
| Fuel tank capacity(L) | 25 |
| Continuous running time (H) | 6 |
Package of long time running safety and reliable household use electric power plant 10 kw air cooled mobile gensets
Usually, it is with plywood case.
Pack size: 1070mm*830mm*1000mm
Load capacity: 28sets in 20GP container, 56 sets in 40GP container
Shipping of electric power plant portable 10 kw
We ship the goods by sea after receiving the balance.
Service of long time running safety and reliable household use electric power plant 10 kw air cooled mobile gensets
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12 months or 1000 hours warranty service
- Spare parts offered
- OEM service buyer label offered
- 24/7 on-line technical serivce
Products show
What's the frequency of the diesel generator sets?
50HZ AC or 60HZ AC.
What's your voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks, Train station, Metallurgical & Mining, Municipal Engineering and so on.
What's your payment & delivery time?
T/T, L/C, West union.
Generally, we delivery the goods within 7 working days after receiving your deposit.
What's your warranty?
12 months or 1000 hours of warranty time for all of our products, not include the wearing-parts, daily consumable and human error of operating & maintenace, but we can offer the cheaper spare parts than other factory.
