Help CenterKJS-6x1600 Metal Slitting Machine TYPE
Related Products
-
KJS-4x1600 Metal Slitting Machine TYPEUS$ 2,000 - 80,000MOQ: 1 Set -
KJS-3x1300 Metal Slitting Machine TPEUS$ 2,000 - 80,000MOQ: 1 Set
-
Metal Slitting MachineUS$ 2,000 - 80,000MOQ: 1 Set
-
Sheet Metal Straightening Machine/ Straightener/levelerUS$ 2,000 - 80,000MOQ: 1 Set
-
1.5 1250mm CUT TO LENGTH SLITTING LINEUS$ 2,000 - 80,000MOQ: 1 Set
Specifications
1.Good and stable quality2.Over ten years experience
3.14 months guarantee
4.CE verified & ISO 9001:2008
Specifications
The metal slitting machine/steel slitting machine,
automatically controlled by PLC,
with high speed & high precision
Metal slitting machine/steel slitting machine/ metal slitter,

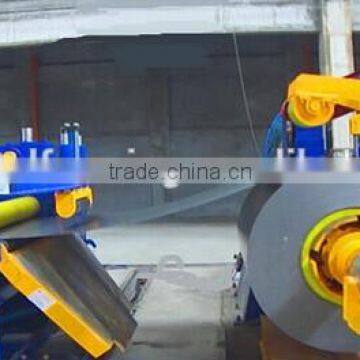

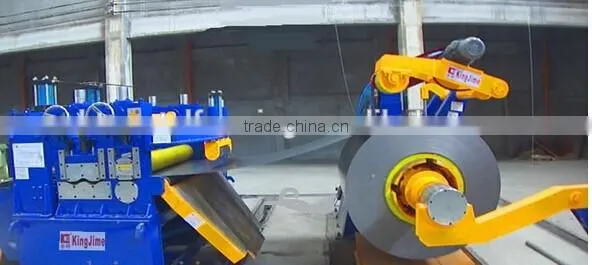

The whole production line can do uncoiling, slitting and recoiling works. It slit the steel coil into narrower coils with any needed widths. The whole line mainly includes coil loading car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler, coil unloading car, hydraulic system , electrical control system, etc. It is mainly applied for processing cold/hot rolled carbon steel, silicon steel,stainless steel, and all the other kinds of metal materials with surface spreading.
Slitting line models for middle and thick board:
| Model | Applied Coil Specification | NO. of Slitting | Tolerance | Speed (m/min) |
||
| Material thickness | Strip width | Coil weight | ||||
| KJS-3x1300 | 0.25-3mm | 1300mm | 15 tons | 30-12 | ±0.1mm | 50-120 |
| KJS-4x1600 | 0.5-4mm | 1600mm | 20 tons | 30-6 | ±0.1mm | 30-100 |
| KJS-6x1600 | 0.6-6mm | 1600mm | 25 tons | 20-6 | ±0.1mm | 30-100 |
| KJS-8x2200 | 2-8mm | 900-2200mm | 30 tons | 10-3 | ±0.1mm | 0-30 |
| KJS-10x2200 | 3-10mm | 1000-2200mm | 30 tons | 10-5 | ±0.1mm | 0-25 |
| KJS-12x2200 | 3-12mm | 1000-2200mm | 35 tons | 1-5 | ±0.1mm | 0-20 |
Machine parts in the working line
1. coil car
2. decoiler
3. peeler entry table
4. Straightener.
5. Shearing machine
6. loop table
7. coil guide and pinch roll
8. Slitting machine
9. scrap winder (both sides)
10. Loop table
11. separator and tension table
12. Deflector roll and exit threading table
13. Recoiler
14. Over arm separator in the recoiler.
15. Exit coil car for recoiler
16. Hydraulic system
17. pneumatic system
18. electrical control system
