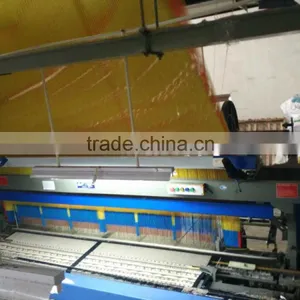

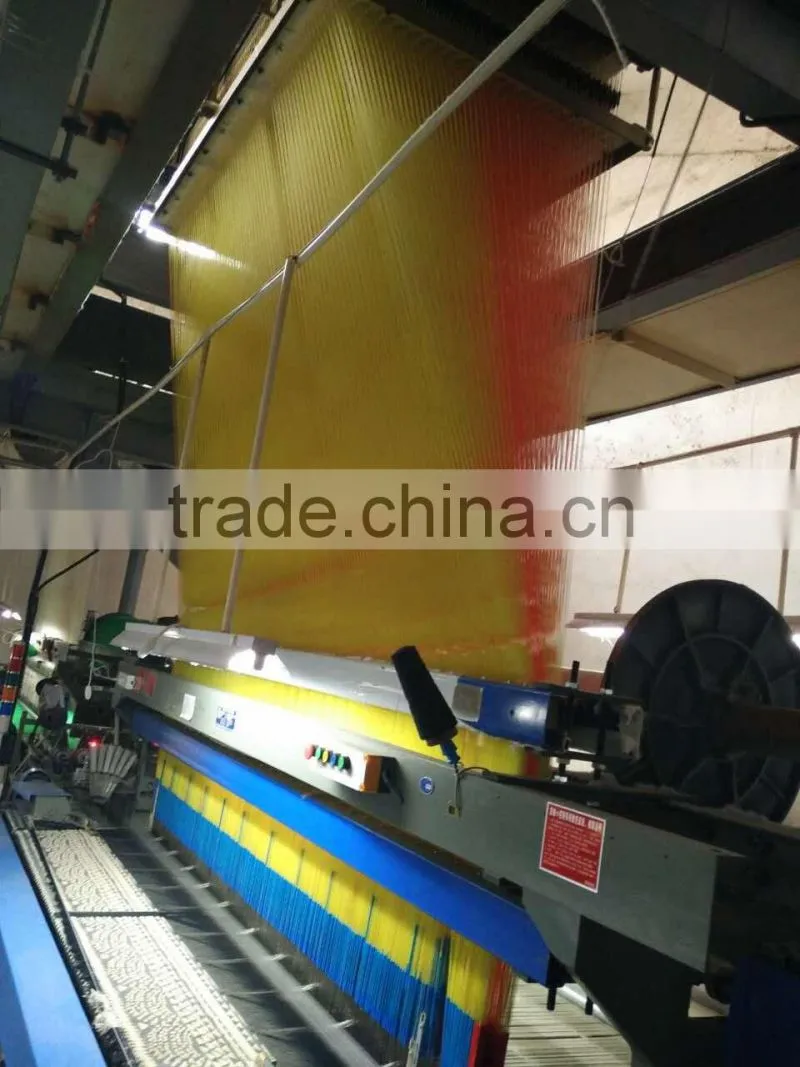

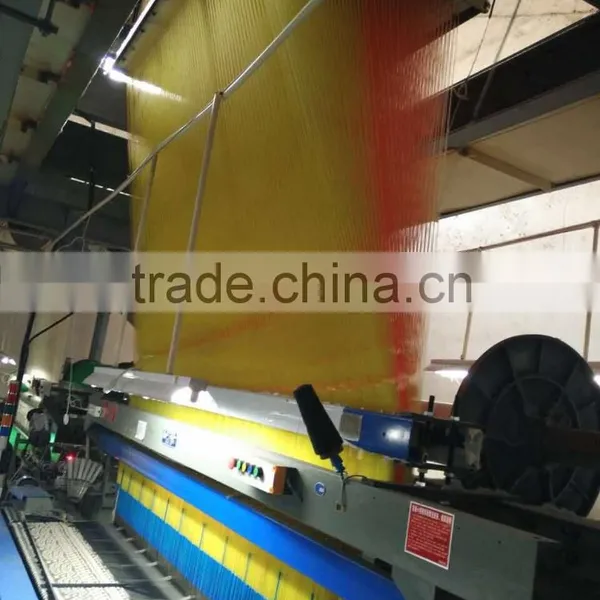

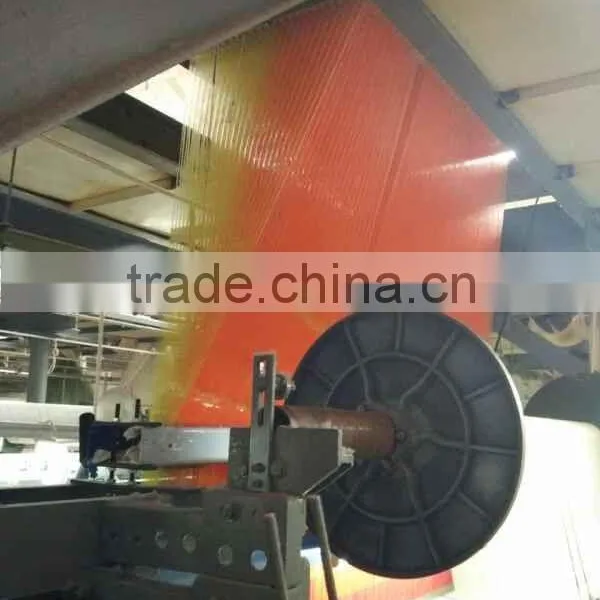

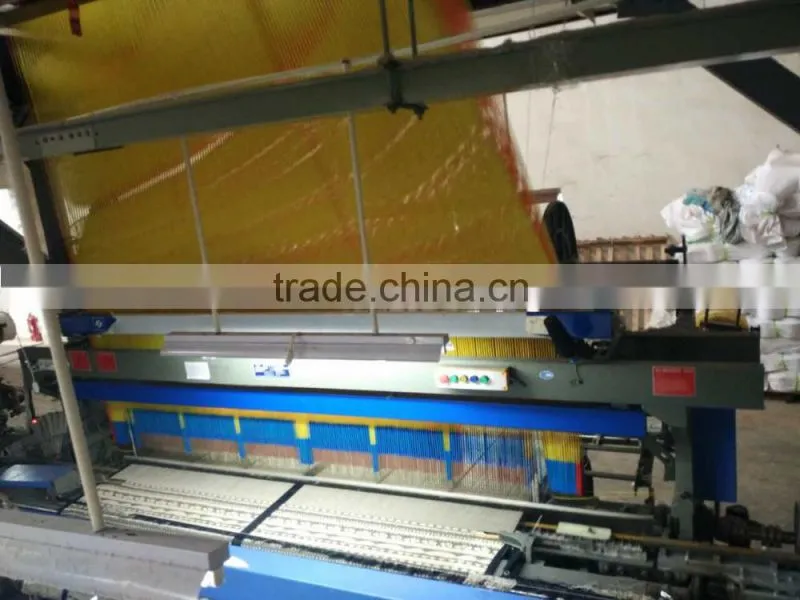

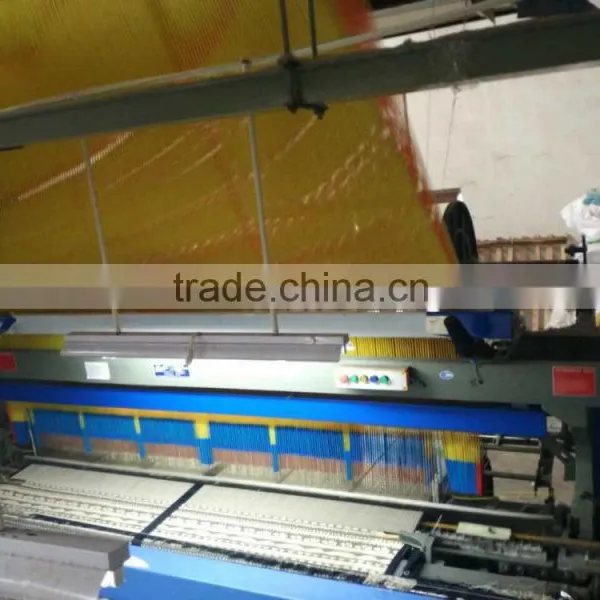

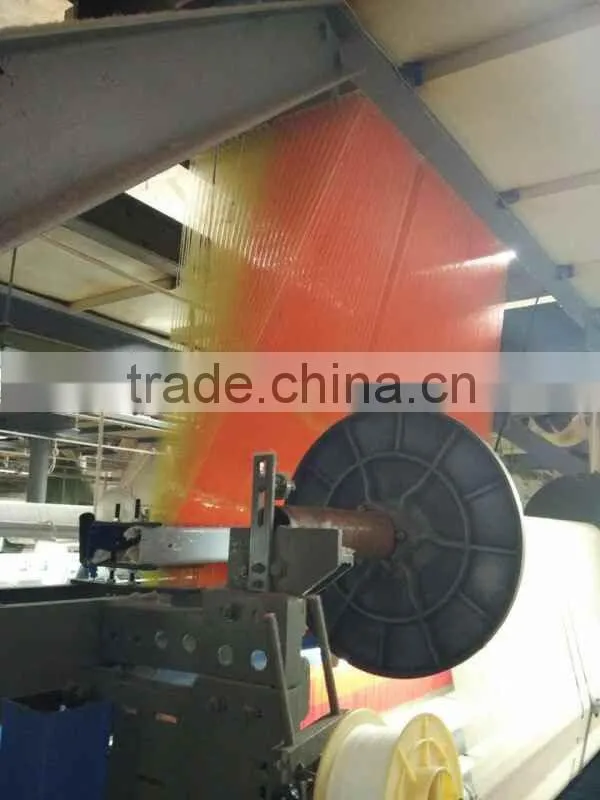

Harness Set for Towel Loom
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GOODFORE
Model Number:
JLM-001
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solenoid/ Electromagnetic Valve for Carpet MachineUS$ 4 - 4MOQ: 100 Pieces -
Solenoid/ Electromagnetic Valve for B0nasUS$ 2.5 - 2.5MOQ: 100 Pieces
-
Pican0l Let-off Motor EncoderUS$ 100 - 100MOQ: 10 Pieces
-
OMP-F-4-R Weaving MachineryUS$ 14,000 - 15,000MOQ: 1 Set
-
Pican0l Omniplus800-F-4-P Weaving Machine, Air-jet LoomUS$ 3,400 - 3,500MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
GOODFORE
Model Number
JLM-001
Use
Weaving Machinery
Type
Other, harness set
Our main products are as jacquard parts, dobby parts, display, Sensors, encoder, and kinds Breadboards, harness installation, frame, heald wire, dropper, cams, HS918 intelligent sectional warping machine, beam, and etc. They are widely applied in rapier, jacquard, air-jet,projectile, water-jet, gripper machine of STAUBLI,BONAS,MULLER,GROSSE, PICANOL,SOMET,TUSDAKOMA,TOYOTA, SULZER,DONNIER ,IRO, BENNINGER,and etc.
We are devoted to absolute sincerity cooperation and determined to make progress. We would like to work together with you to describe the blueprint of textile industry.
TECHNICAL SPECIFICATIONS |
||
| parameters | ||
| Description of the Jacquard machine | ||
| 1 | Jacquard machine type and hooks | Staubli CX960-4056 |
| 2 | Gantry height“H” | 3500 mm aprox |
| 3 | The large shed | 150 mm aprox |
| 4 | The small shed | 80 mm approx |
| Weaving machine | ||
| 1 | Loom Type | Gunne PZ 180 |
| 2 | Nominal reeds width | 175 cm |
| 3 | Speed | 200 rpm |
| 4 | Electrical drive or module drive of the colors | |
| 5 | Transmission side | Right |
| 6 | Distance from ground to comb board frame"S" | 150 cm aprox |
| 7 | Distance between fixing hole at two side of comb board"F" | 170 cm |
| 8 | Kind of woven fabric | Polyester,Acrylic ,Wool |
| 9 | Yarn type and thickness | 36/2 Nm or 450-600 Denier |
| 10 | Distance from Shed opening to Ground "J" | 100 cm approx |
| 11 | Distance from shed front point to first line heald wire"K" | 20 cm approx |
| Drawing in specifications | ||
| 1 | Repeat of pattern | 3 |
| 2 | Hooks of every pattern | 1288 ( because in velvet used for each harness two hook we has 2576/ 1288 harness for every pattern total 3864 harness) |
| 3 | Selvedge quantity and hooks quantity for every selvedge | woven on cam |
| 4 | Ends quantiy for every selvedge | woven on cam |
| 5 | Total Nbr of ends (with selvedges) | 3864 ends / 169 cm |
| 6 | Yarn density(without selvedge) | |
| 7 | Width without selvedges | 169 cm |
| 8 | width with selvedges"M" | 174cm |
| 9 | Reed eyes/cm | 57/ cm |
| 10 | Yarn quantity for every reed eye | 4 pile with harness( 4 warp which woven by cam) |
