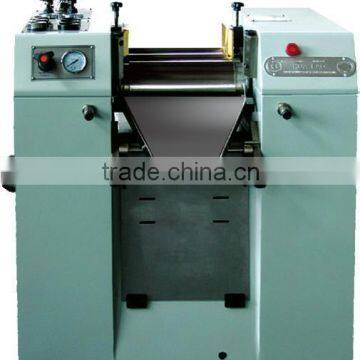

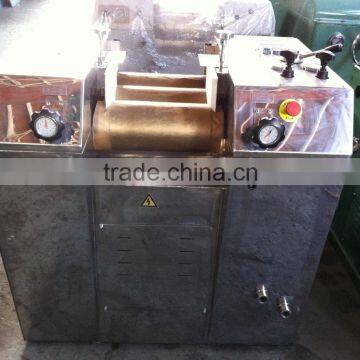

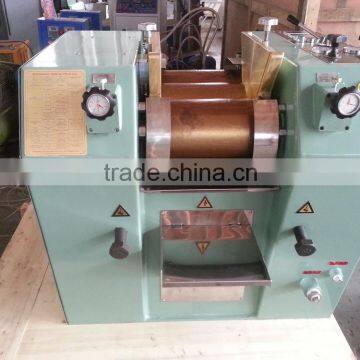

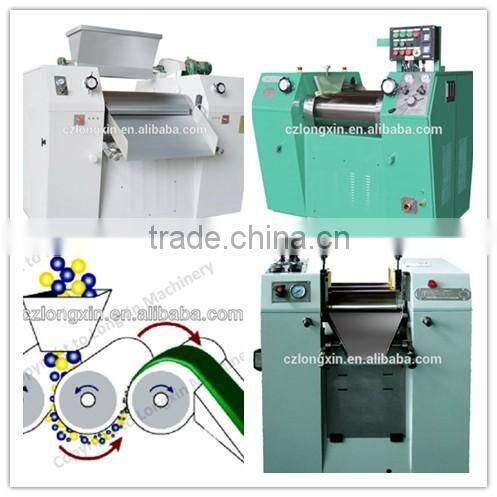

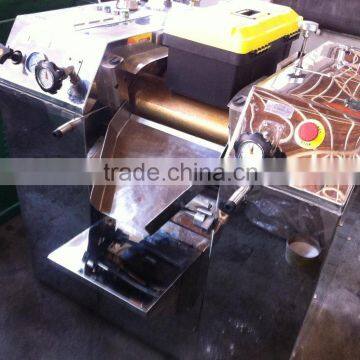

Longxin flat hydraulic three roller mill series wll use special grade Alloy steel,which could reach unbelieveable hardness.This series will use proportional value adjusting the roller pressure&gap,thus the whole machine woll be more stable,&longer life.This machine could be PLC automatic control(Opt)
| Model | YSP150 | YSP260 | YSP400-800 | YSP400-1000 |
| Roller diameter(mm) | 150 | 260 | 315 | 400 |
| Length of roller working surface(mm) | 300 | 650 | 900 | 1000 |
| Distance from discharge hole to ground(mm) | 620 | 650 | 690 | 690 |
| Output(L/h) | 25~40 | 180~250 | 250~350 | 300~400 |
| Low spped roll rotating speed | 26 | 58 | 51 | 32 |
| Medium speed roll rotating speed | 61 | 153 | 154 | 128 |
| High speed roll rotating speed | 141 | 408 | 460 | 400~450 |
| Main moter power (kW) | 3 | 22 | 30~37 | 55 |
| Total pressure of hydraulic system | 6.3 | 6.3 | 6.3 | 6.3*2 |
| Pressure power | 0.375 | 1.5 | 1.5 | 1.5*2 |
| Machine weight | 520 | 2000 | 3200 | 5200 |
| Overall dimension | 950*950*1080 | 1558*1280*1200 | 2050*1360*1500 | 2650*1750*2295 |
| Packing dimension | 1100*1100*1400 | 1800*1400*1700 | 2200*1600*1800 | 2800*1900*1900 |
Packaging details: standard wooden case
Our factory named Changzhou Longxin Machinery Co.,Ltd.Our factory was founded in 2001.We have accumulated so much experience in this industry.Our main products are manual three roll mill,hydraulic three roll mill,computer CNC three roll mill,bead mill,nano ceramic sand mill,planeetary mixer etc.Our machines are widely used in ink,coating,electronic paste,pesticide,power battery,nano material,daily chemical,leather plastic,pencil,food,dye,silicone rubber,and guar gum etc.We believe that our product can give you an edge over your competitor.
We have a professional R&D team,they have obtained maore than 20items of patent,including 5 invetion patent.We can customize the professional assembly line per your need.
Quality is our culture.Our company regard the quality and credit as our soul.Excellent quality and credit has been proved by time.Our company has owned the certification of BV,CE and ISO9001:2008.
You can see,we have achieved dominating position in some domestic market.So you be rest assured about our product and service.
- OEM Manufacturing welcome:product, packaging.
- Welcome to our factory to test our machine working performance
- We will reply you for your inquiry in24 hours
- After sending,we will track the products for you once every two days,until you get the products.when get the goods,test them,and give me a feedback.If you have any question,you can contact us,we will give you the solution asap.
