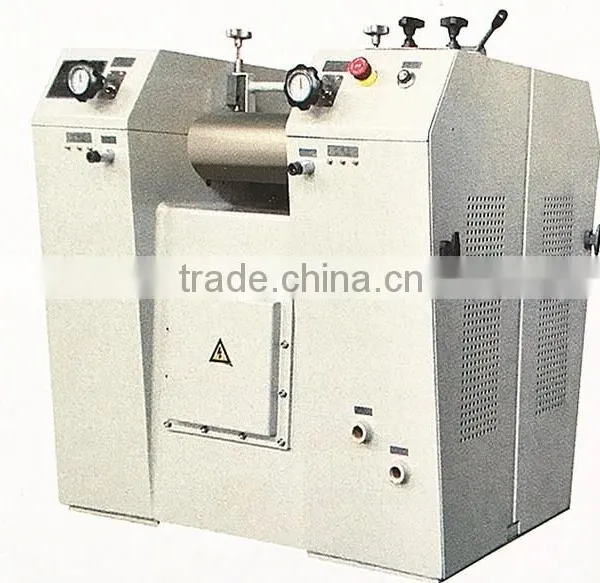

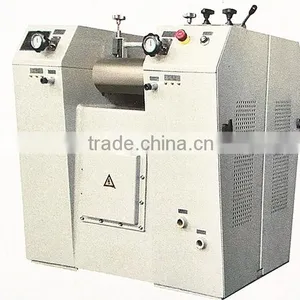

YSP Series Hydraulic Three Roller Mill
- 30 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Type: | Grinder | Product Type: | Paint |
Place of Origin: | Jiangsu, China | Brand Name: | Longxin | Model Number: | YSP150 |
Voltage: | Customized | Power(W): | 3kw | Dimension(L*W*H): | 950*950*1080 |
Weight: | 520kg | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Changzhou Longxin Machinery Co.Ltd owns various honorary status,including high-tech enterprise,national special ultra-fine power techology researching center,micro-nano material perparation engineered and industrialized testing site,and vice chairman unit of Chinese Ink Association .Longxin machinese are with certification of T ü V,BV,CE,and ISO9001:2008.
Our factory mainly produces "Longxin"&"Huabao" brand machinese of manual three roll mill,hydraulic three roll mill,computer CNC three roll mill,bead mill,nano ceramic sand mill,planetary mixer etc.Our machines are widely used in ink,coating,electronic paste,pesticide,power battery,nano material,daily chemical,leather plastic,pencil,food,dye,silicone rubber,and guar gum etc.
Our products are exported to United States,Brazli,India,Russia,Japen,Singapore,southeaat Asia and other countries and regions,and enjoy high reputation from all walks of life. Our consistent principle is "Quality First,Excellent Service,Customers Satisfaction".Sincerely welcome friends both at home and abroad to cooperate with us and create a bright future of chemical industry together!
Overview
Longxin flat hydraulic three roll mill series will use special grade Alloy steel,which could reach unbelievable hardress .This series will use proportional valva adjusting thr roller pressure&gap,thus the whole machine will be more stable,& longer life.
This machine could be PLC automatic control.
Applications
All kinds of ink,Gesase,Electronic paste,plant gum,Soap,etc.YSH Three Roller Mill speciallized in grinding&dispersing power
type material like peanut,guar gum,etc.
Technical Paraweters
Model | YSP150 | YSP260 | YSP400-800 | YSP400-1000 |
Roller diameter(mm) | 150 | 260 | 315 | 400 |
Length of roller working surface(mm) | 300 | 650 | 900 | 1000 |
Distance from discharge hole to ground(mm) | 620 | 650 | 690 | 690 |
Output(L/h) | 25~40 | 180~250 | 250~350 | 300~400 |
Low speed roll(r/min) | 26 | 58 | 51 | 32 |
Medium speed roll(r/min) | 61 | 153 | 154 | 128 |
High speed roll(r/min) | 141 | 408 | 46 | 400~450 |
Main motor power(KW) | 3 | 22 | 30-37 | 55 |
Total pressure of hydraulic system(Mpa) | 6.3 | 6.3 | 6.3 | 6.3*2 |
Pressure power(KW) | 0.375 | 1.5 | 1.5 | 1.5*2 |
Machine weight(kg) | 520 | 2000 | 3200 | 5200 |
Overall dimension L*W*H(mm) | 950*950*1080 | 1558*1280*1200 | 2025*1360*1500 | 2650*1750*2295 |
Packing dimension L*W*H(mm) | 1100*1100*1400 | 1800*1400*1700 | 2200*1600*1800 | 2800*1900*1900 |
1,Before you purchase our products,we will select a suitable model for youand offering you a reasonble solution,after delivery,
we will arrenge commissioning and maintencance.We will teach you the processing of handing the machine,help you reduce the unexpected risk.
2,Make analysis and treatment of customer's information (including guidance,part posting and serviceman's visit )and reply customer within 8 hours normally.
3,If the machin has problem and need doorstepmaintenmance,we will send serviceman to the site within 24 hours an deal with trouble quickly.
4,Make summaey and filing of after-sale service information once every week and feedback to concerned department in time.
5,Make supervision and examination of service quality and attitude of servicrmen.
