Help CenterJ23-63Model: J23-63 Rated Pressure :630KN Slide Travel :100mm Travel TimeT OPEN BACK INCLINABLE PRESS
Related Products
Specifications
heavy weightGood commponets

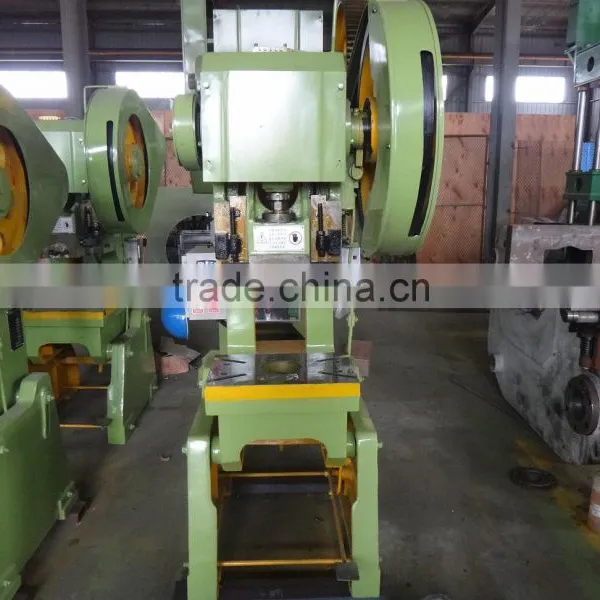

J23 series press
Model: J23-63
Rated pressure :630KN
Slide travel :100mm
Travel times : 40min
Max.die set height : 310mm
Die set height adjustment : 80
Disstance from slide block centre to the frame : 310mm
Worktable dimensions : F-B 570mm
L-R 860mm
Dimensions of slide block bottom surface : F-B 340mm
L-R400mm
Size of the handle hole :Diameter 50mm
Deph 80mm
Inclinable angle of body :30mm
Motor : Type Y132M-4 Power 7.5KW
Overall dimension :Length 1940mm width 1520mm Height 3870mm
Weight :5600KG
Pallet
