Help CenterYS260 Hydraulic Triple Roll Mill for UV Ink
Related Products
-
YS Full Hydraulic Three Roller Mill With TechnologyUS$ 2,000 - 80,000MOQ: 1 Set -
Ink & PigmentUS$ 500 - 50,000MOQ: 1 Set
-
YS260 Hydraulic Three Roll Mill for Grinding ChocolateUS$ 3,980 - 59,870MOQ: 1 Set
-
UV InkUS$ 500 - 50,000MOQ: 1 Set
-
YS400-1000 Hydraulic Three Roll Mill for Guar GumUS$ 45,000 - 50,000MOQ: 1 Set
Specifications
hydraulic triple roll mill1 Wear-resistant rolls
2 outstanding cooling capacity
3 safe and easy operation
4 factory price
This machine adapts three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machinesuch as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content,convenient to operate and safe in use. Because the hydraulic system adapts plate type structure, its arrangement is more reasonable.The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property. It is an idealequipment to grind high quality paste material.Siemens PLC is used for control, analogous drawing and touch screen are available (optional).
| Model | YS260 | |
|---|---|---|
| Roller diameter (mm) | 260 | |
| Length of roller working surface (mm) | 650 | |
| Distance from discharg hole to ground (mm) | 650 | |
| Roll rotating speed | Low speed roll | 58 |
| Medium speed roll | 153 | |
| High speed roll | 408 | |
| Main motor power (KW) | 22 | |
| Tptsl pressure of hydraulic system (Mpa) | 6.3 | |
| Pressure power (KW) | 1.5 | |
| Machine weight (kg) | 2000 | |

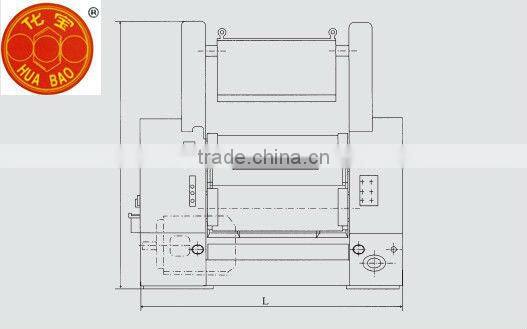

| Overall dimension LxWxH (mm) | 1558x1280x1200 | |
| Packing dimension LxWxH (mm) | 1800x1400x1700 | |
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
