Specifications
vertical bead millNSK,ABB,Siemens, best components
China National Research Center
factory built in 1967
CE,ISO,SGS
sand mill,bead mill, ball mill.horizontal bead mill,vertical bead mill, cheap bead mill .
Established in 1967,is China National special ultra-fine power engineering &researching center and micro-nano fabrication engineering&industrial testing base.

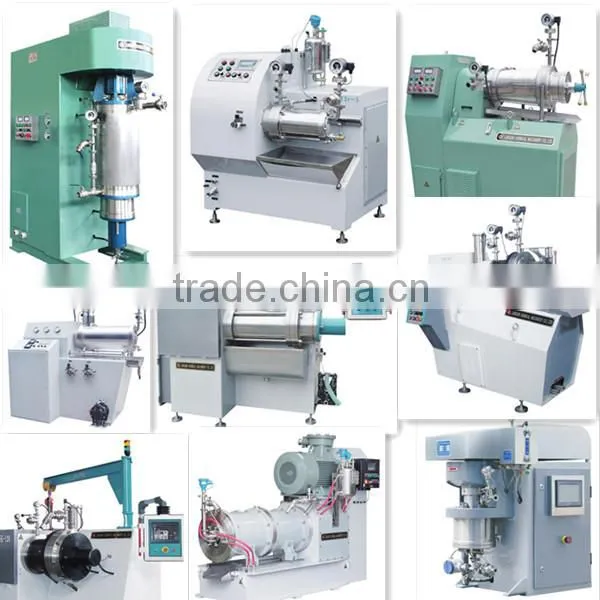

Bead mill series:
1.WST wet dispersing nano bead mill,
2.WSK high viscosity superfine versatile bead mill,
3.WSJ horizontal internal cooling full function bead mill
4.WSZ high viscosity horizontal bead mill,
5.WSS horizontal bead mill,
6.WSH high viscosity vertical bead mill,
7. WHD super fine bead mill,
8.WSV vertical internal cooling bipyramid bead mill.
Note:different model cheap bead mill for different viscosity raw material and for different fineness result.
bead mill ,horizontal bead mill ,vertical bead mill, cheap bead mill for coat,paint,ink,pigment,pesticides,medicine, dye,cosmetic,sensitive film, foods, electronic paste,
battery industry:cathode materials of the lithium iron phosphate batteries,
digital consumptive materials:digital jet printing ink,
mineral pigment:titanium pigment,calcuim carbonate,ferric oxide,
ceramic materials:alumina oxide,zirconia,silicon carbide,
rare-earth materials:zirconia,indium oxide,cerium oxide,etc,
pharmaceutical preparation,
cosmetic:pearl power.
Above machines are just part of our cheap bead mill ,including horizontal bead mill, and vertical bead mill.
♥Strong versatility,easy operation,PLC is used for control cheap bead mill,alalogous drawing and touch screen are available.
♥Self-cleaning,high-precision sepatating ring,and grinding media with 0.2-2.5mm are acceptable.
♥Mechanical sealing and sealing lips of cheap bead mill are all imported from Germany,solving the problem of material leakage,BORGMANN brand.The longest life of mechanical seal of cheap bead mill is 18 years.
♥Internal circulated cooling/heating integrated system is suitable for temperature-sensitive material.
♥Grinding cylinder is made of highly wear-resistant alloy material,and the inner layer of cheap bead mill can be changed alone, the cost of maintance will be min.
♥A magnetic filter with magnetic flux of 80000 gauss eliminates metal impurities contained in the paste to be milled,ensures product purity and equipment safety during the next process.
♥In order to satisfy the user's special requirements, cheap bead mill is optional for serveral materials,such as pure zirconium bead, zirconia bead,steel bead, glass bead,composite materials,which have lots of excellent characteristic such as resistant,zero pollution,high abrasion resistance.
♥ volume of piston type milling chamber is variable,can change energy density and barrel pressure to attain best dispersion and milling results.
Countless benefits are only for more convenience and efficiency while you operate cheap bead mill.
Parts of our supplier for cheap bead mill:
Parts of our clients of cheap bead mill :
You can get one year warranty for cheap bead mill,besides,engineer can be sent to your factory to install cheap bead mill and train your staff, but the buyer should pay for the round air ticket and arrange the hotal,what’s more,we will send some free set of bead mill spear parts for you to change.
| Model | Volume(L) | Medium size(mm) | Motor power(kw) | Capacity Max(L/H) |
| WST-5 | 5 | 0.3-0.6 | 11 | -- |
| WST-15 | 15 | 0.3-0.6 | 30 | -- |
| WST-30 | 30 | 0.4-1.0 | 22 | 180-250 |
| WST-50 | 50 | 0.4-1.0 | 30-37 | 400-500 |
| WST100 | 100 | 0.4-1.0 | 55 | 1000-1500 |
| WSJ-20 | 20 | 0.8-2.0 | 18-22 | 80-130 |
| WSJ-30 | 30 | 0.8-2.0 | 22-30 | 100-180 |
| WSJ-50 | 50 | 0.8-2.0 | 30-45 | 150-300 |
| WSK-80 | 9 | 0.8-2.0 | 22-37 | 80-120 |
| WSK120 | 13 | 0.8-2.5 | 37-45 | 120-150 |
| WSK180 | 15 | 0.8-2.5 | 45-55 | 180-250 |
| WSK280 | 20 | 1.6-2.5 | 55-75 | 280-450 |
| WSZ-8 | 8 | 2.0-2.2 | 30-37 | 40-60 |
| WSZ-14 | 14 | 2.0-2.2 | 37-45 | 60-90 |
| WSZ-25 | 25 | 2.0-2.2 | 55-75 | 100-180 |
| WSS-20 | 20 | 0.8-1.6 | 15 | 50-90 |
| WSS-30 | 30 | 0.8-1.6 | 18.5 | 80-120 |
| WSS-40 | 40 | 0.8-1.6 | 22 | -- |
| WSS-50 | 50 | 0.8-1.6 | 30 | 100-150 |
| WSS-80 | 80 | 0.8-1.6 | 37 | -- |
| WSS100 | 100 | 0.8-1.6 | 45 | -- |
| WSS200 | 200 | 0.8-1.6 | 75 | -- |
| WSH-14 | 14 | 2.0-2.2 | 30-37 | 60-80 |
| WSH-30 | 30 | 2.0-2.2 | 45-55 | 80-120 |
| WHD-12 | 1.2 | 0.2-0.8 | 5.5 | 300 max |
| WHD100 | 11 | 0.2-0.8 | 22-30 | 1200 max |
| WHD200 | 25 | 0.2-1.2 | 45-55 | 3000 max |
| WHD400 | 35 | 0.2-1.4 | 90-100 | 6000 max |
| WHD800 | 80 | 0.2-1.4 | 250 | 12000 max |
| WSV-9.8 | 9.8 | 0.8-2.0 | 22 | 80-110 |
| WSV-11 | 11 | 0.8-2.0 | 22 | 90-150 |
| WSV-14 | 14 | 0.8-2.0 | 30 | 100-180 |
Note:"--" indicates the data is statistical.
Thank you for reading our website,and welcome to be our agent!
Pls contact your personal technicist Lisa for choosing most suitable bead mill for ink etc,horizontal bead mill or vertical bead mill.Our bead mill are cheap bead mill with high quality.
