Changzhou Longxin Machinery Co.Ltd owns various honorary status,including high-tech enterprise,national special ultra-fine power techology researching center,micro-nano material perparation engineered and industrialized testing site,and vice chairman unit of Chinese Ink Association .Longxin machinese are with certification of T ü V,BV,CE,and ISO9001:2008.
Our factory mainly produces "Longxin"&"Huabao" brand machinese of manual three roll mill,hydraulic three roll mill,computer CNC three roll mill,bead mill,nano ceramic sand mill,planetary mixer etc.Our machines are widely used in ink,coating,electronic paste,pesticide,power battery,nano material,daily chemical,leather plastic,pencil,food,dye,silicone rubber,and guar gum etc.
Our products are exported to United States,Brazli,India,Russia,Japen,Singapore,southeaat Asia and other countries and regions,and enjoy high reputation from all walks of life. Our consistent principle is "Quality First,Excellent Service,Customers Satisfaction".Sincerely welcome friends both at home and abroad to cooperate with us and create a bright future of chemical industry together!

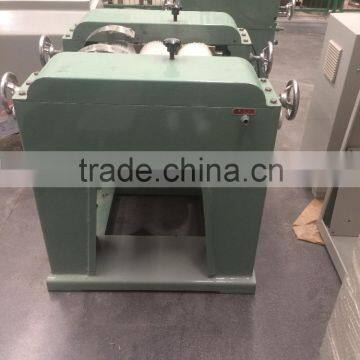

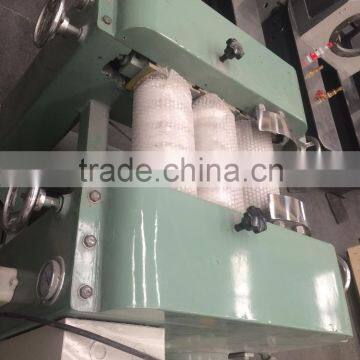

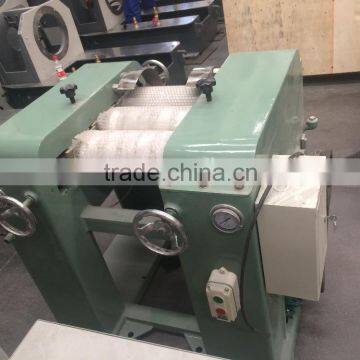

SG series three roll mill is welded by high quality steel plate.The transmission gear adapts oil-immersed type and the operative
handwheel is transmitted by gear.It features beautiful appearance,convenient to operate,long life and so on.Particularly it is suitable for grinding the product that has high disperive viscosity and fine size.
Character
Longxin SG series Three Roller Mill machine is a new generation product.
1.Chain gears driving,Oil tank gear box,fewer noise,longer life time.
2.Hydraulic piston driving,pressure guage.
3.SUS304 Stainless steel discharge hopper.
Technical Paraweters
| Model | SG6/S150 | SG9/S260 | SG16/SM405 | SG16L/SM405L |
| Roll diameter(mm) | 150 | 260 | 405 | 405 |
| Length of roller working surface(mm) | 300 | 675 | 810 | 1000 |
| Distance from discharge hole to ground | 660 | 580 | 820 | 820 |
| Output | 25~40 | 60~80 | 120~150 | 130~200 |
| low speed roll | 34 | 23 | 14 | 14 |
| Medium speed roll | 78 | 64 | 43 | 43 |
| High speed roll | 181 | 183 | 130 | 130 |
| Main motor power(KW) | 2.2~3 | 7.5 | 15~18.5 | 22 |
| Overall dimension L*X*H (mm) | 920*880*1150 | 1690*1330*1300 | 2150*1795*1600 | 2350*1750*1600 |
| Machine weight(kg) | 500 | 2000 | 5300 | 5800 |
| Packing dimension L*X*M | 1000*1000*1400 | 1800*1450*1600 | 2250*1850*1950 | 2450*1850*2000 |
