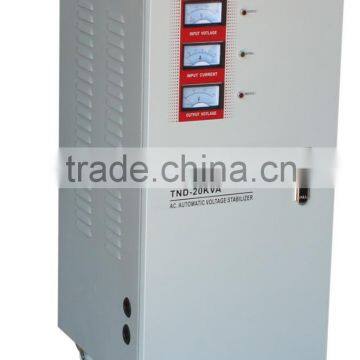

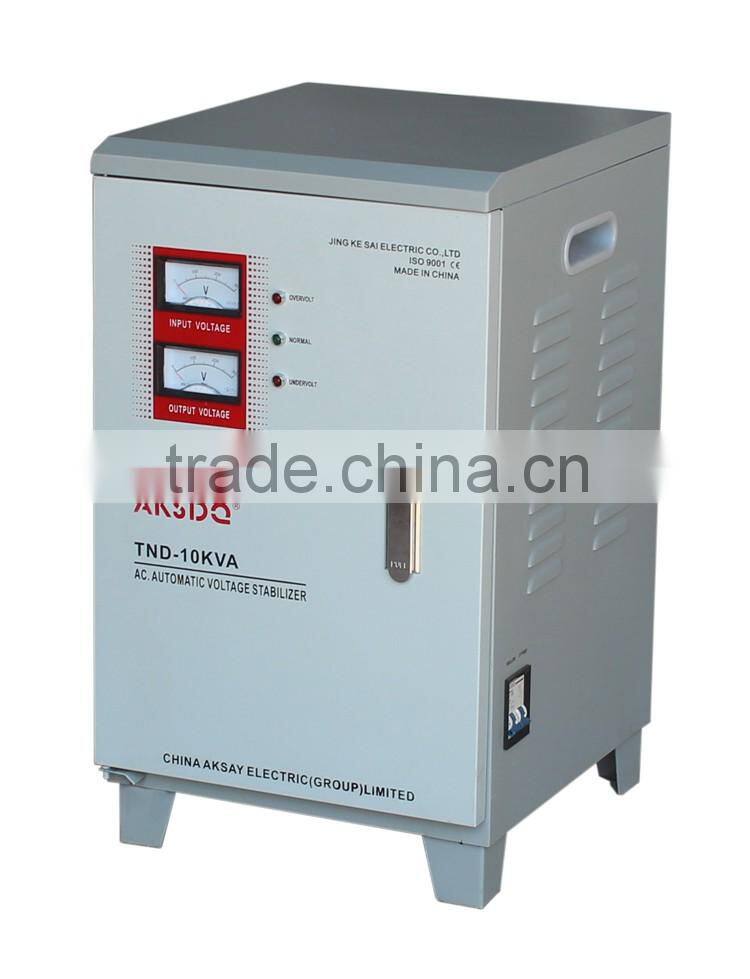

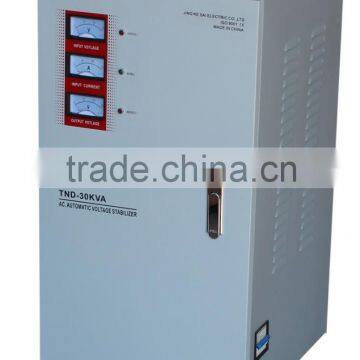

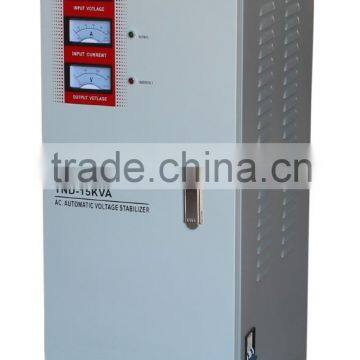

SVC 10Kva Automatic Single Phase Copper Coil Servo Motor Digital Voltage Stabilizer For Computer
- 8000 Set / Sets per Month
- NINGBO or SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | AKSDQ | Model Number: | SVC |
Usage: | SVC | Phase: | Single Phase | Current Type: | AC |
Product Description

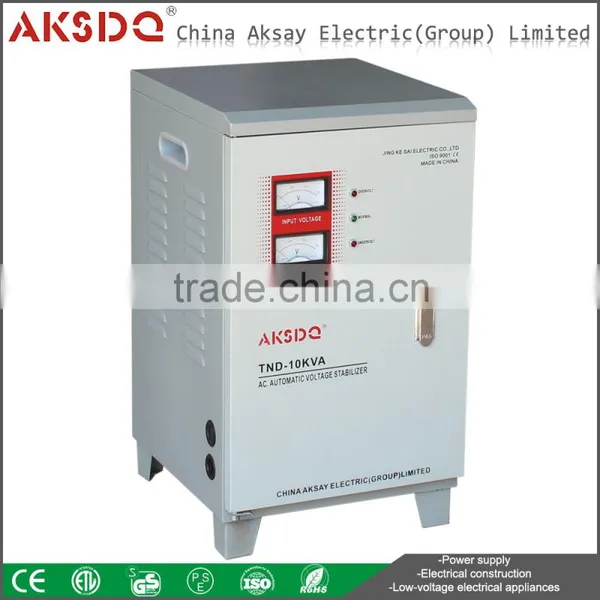

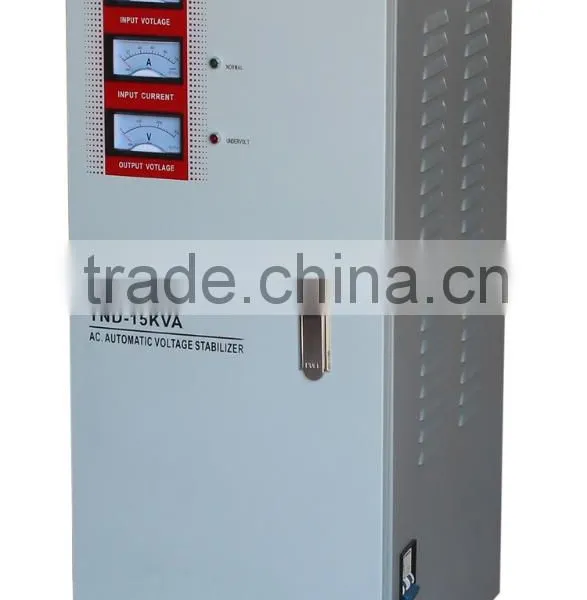

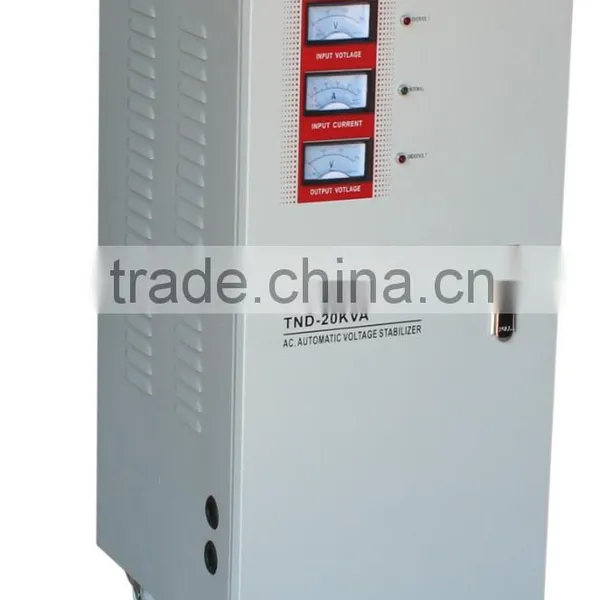

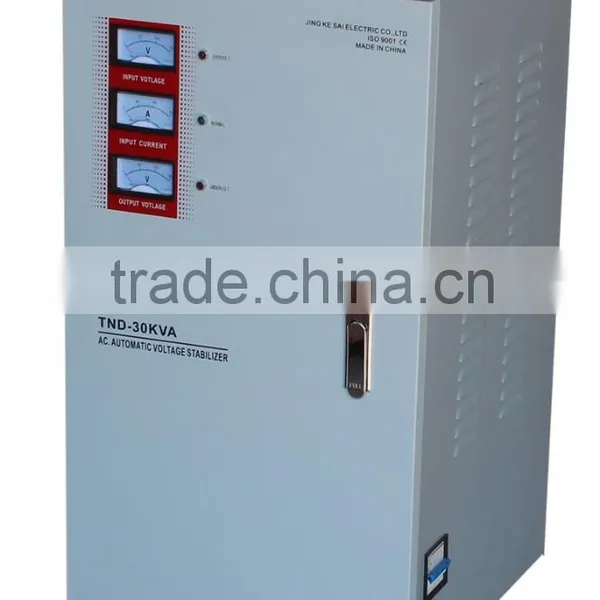

SVC 10Kva Automatic Single Phase Copper Coil Servo Motor Digital Voltage Stabilizer For Computer
General:

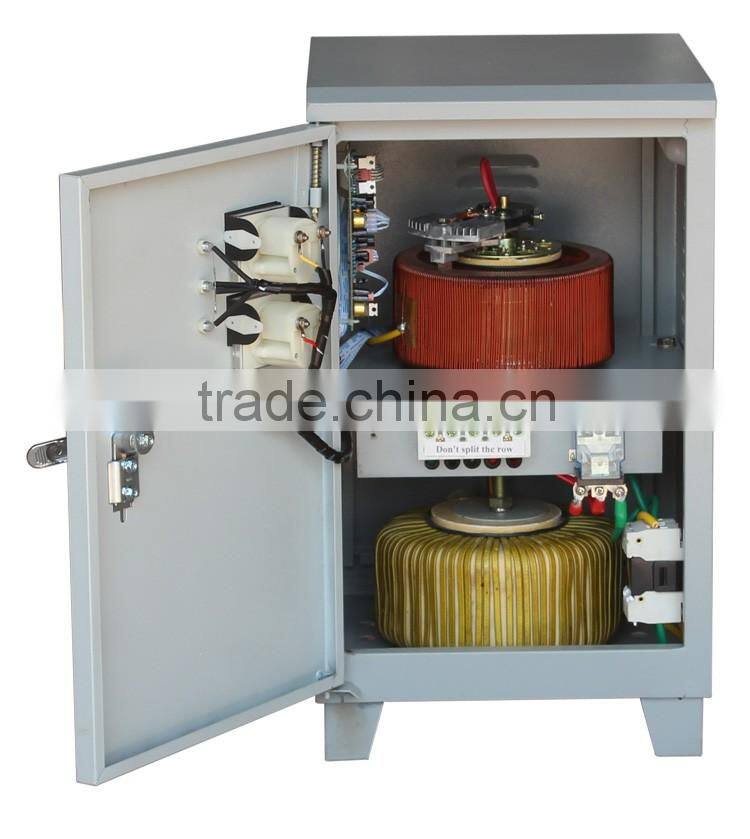

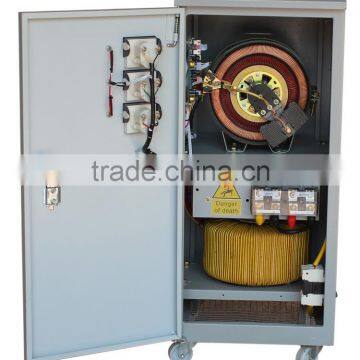

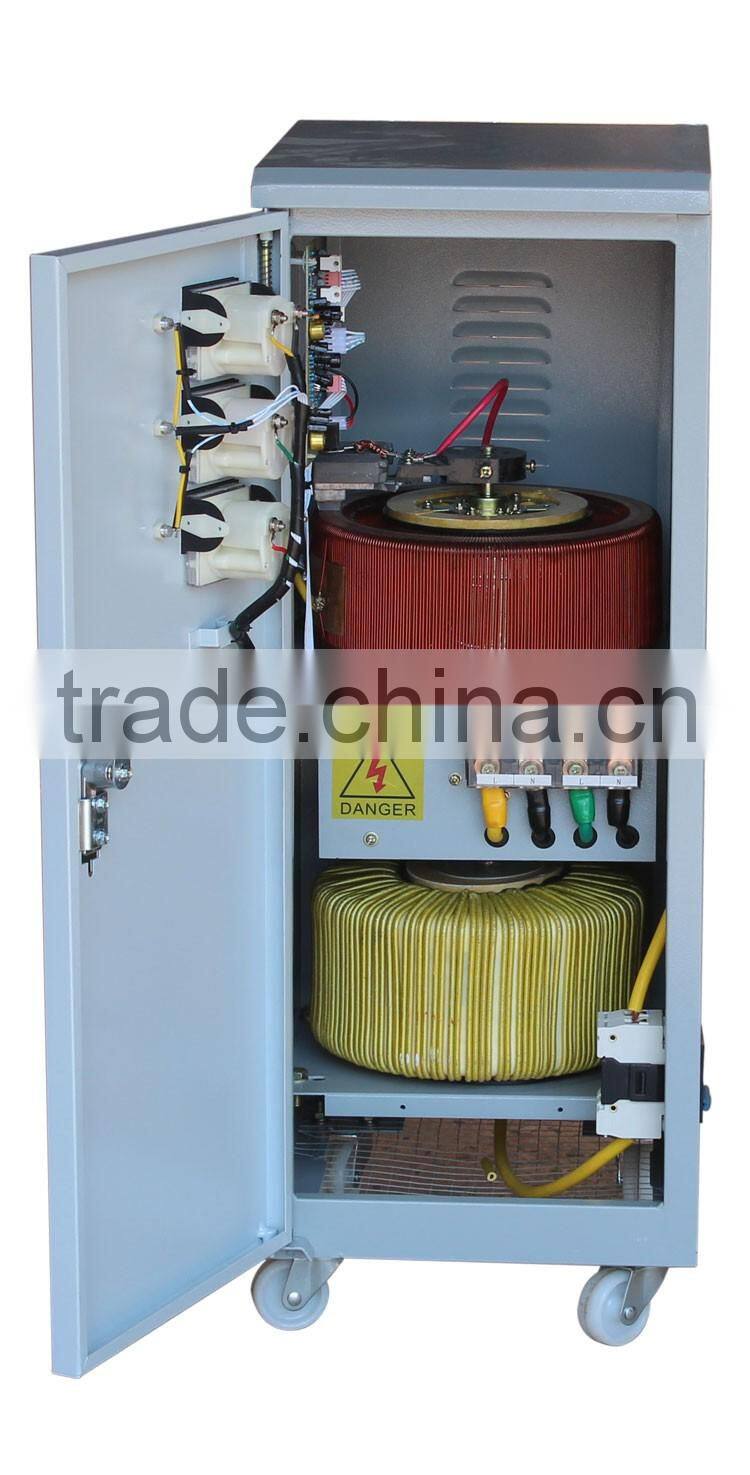

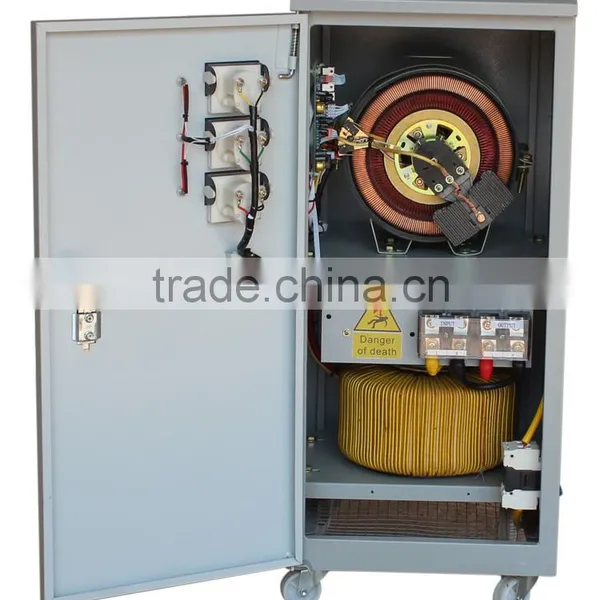

SVC single-phase high accuraty full automatic AC voltage stabilizers Series is key series of our products, It is made of contact type selfcouping voltage regulator, servo motor, automatic controlcircuit and so on. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carton brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
Having the advantages such as wide varieties, complete specifications, beautiful appearance,etc. and the characte ristics such as undistorted waveform,high efficiency, reliable performance, long-term operation,etc., and also being provided with the protective functions such as timedelay, over-voltage, etc., the series of stabilizers, of the gen eral type, are the ideal voltage stabilizer soruces which can be widely can be applied o any occasions requiring power to assure the normal operation of your power driven equipment.
Specifications
1.SVC fully AC automatic voltage regulator
2.Servo motor type
3.Over voltage protection
4.Do the manostat for your request
SPECIFICATION &PERFORMANCE:
Input Voltage | Phase voltage 160~250V, line voltage 277V~430V |
Output Voltage | Phase voltage 220V, line voltage 380V |
Regulation Accuracy | ±3% |
Frequency | 50Hz/60Hz |
Adjust Time | < 1s(when input voltage changes 10% ) |
Efficiency | > 95% |
Relative Humidity | ≤95% |
Ambient Temperature | -5°C ~+ 40°C |
Waveform Distortion | No Additional Waveform Distortion |
Load Power Factor | 0.8 |
Electric Intensity | 1500V/min |
Insulation Resistance | ≥2MΩ |
Three-phase four wire | ||||
| ||||
Spec.(KVA) | Products size D×W×H(CM) | PackageD×W×H(CM) | Weight(KG) | Qty |
SVC- 1.5 | 40×36×17 | 52×48×28 | 18 | 1 |
SVC- 3 | 42×38×19 | 54×50×31 | 23 | 1 |
SVC- 4.5 | 42×38×19 | 54×50×31 | 27 | 1 |
SVC- 6 | 37×28×68 | 48×40×78 | 39 | 1 |
SVC- 9 | 35×33×78 | 48×45×90 | 48 | 1 |
SVC- 15 | 43×38×73 | 55×51×90 | 85 | 1 |
SVC- 20 | 43×51×91 | 64×55×106 | 124 | 1 |
SVC- 30 | 43×51×91 | 64×55×106 | 197 | 1 |
SVC- 45 | 65×43×95 | 78×55×110 | 260 | 1 |
SVC- 60 | 77×55×100 | 90×67×115 | 260 | 1 |
SVC- 80 | 77×55×100 | 90×67×115 | 290 | 1 |
SVC- 100 | 77×55×100 | 90×67×115 | 350 | 1 |
Wenzhou Jingkesai Electric Co.,Ltd is the branch of China Aksay Electric (Group) Limited. We are a manufacturer of voltage stabilizers, transformers, and regulators with well equipped testing facilities and strong trchnical force.
Regarding the quality as our life from beginning, our company has gained ISO9001 certificate for international qualified quality system and what's more,the products have obtained CB,CCC & CE approval.
FAQ
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
2. How's the delivery time ?
A. Usually it will takes about 15-35 days for production, we try to ensure quality, while reasonable to complete the production.
3. Tell me the standard of package?
A. Sturdy wooden export packaging, always.
4. Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
5. Would you accept to use our logo ?
A.If you have good quantity, it absolute no problem to do OEM/ODM.
6. We want to know month capacity?
A. We have a monthly production plan and production orders. Monthly production plan to ensure our inventory so that we have enough energy to complete the orders.
7. Where is your market?
A. Our products are popular in North America, Europe, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, and so on. We hope you can join us and make mutural benifit from our cooperation.
8. What kinds of certificate do you have ?
A. CE, RoHS, ISO9001, and test reports.
