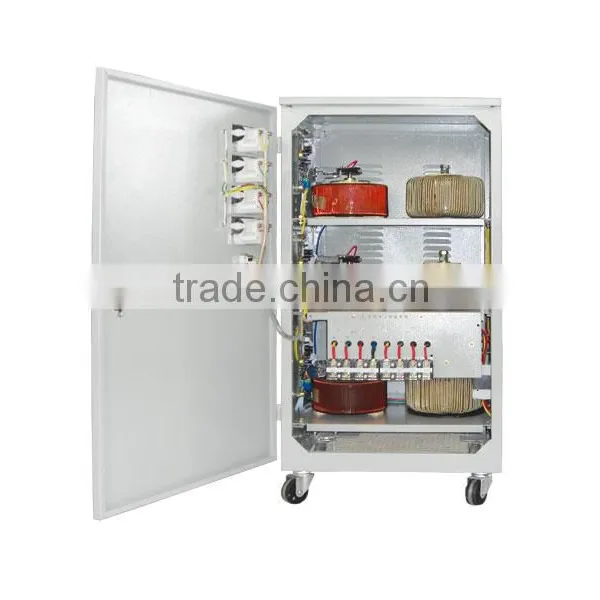

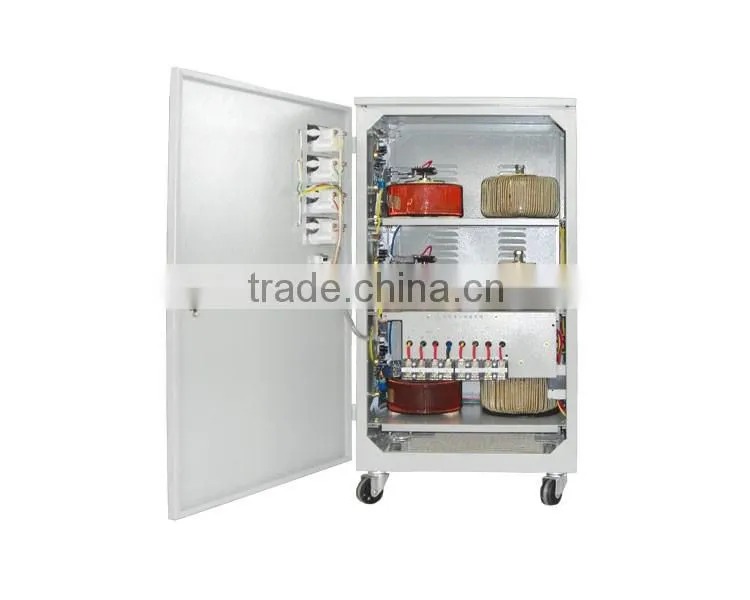

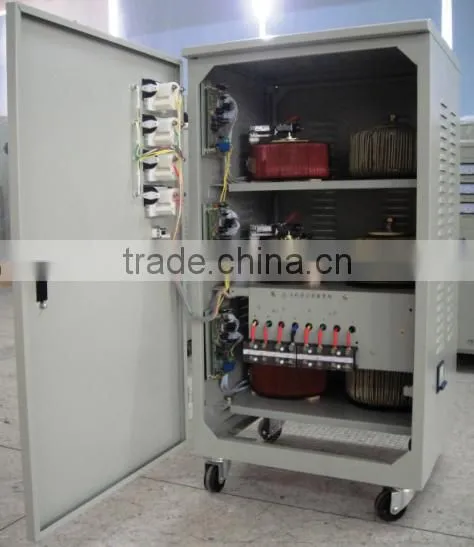

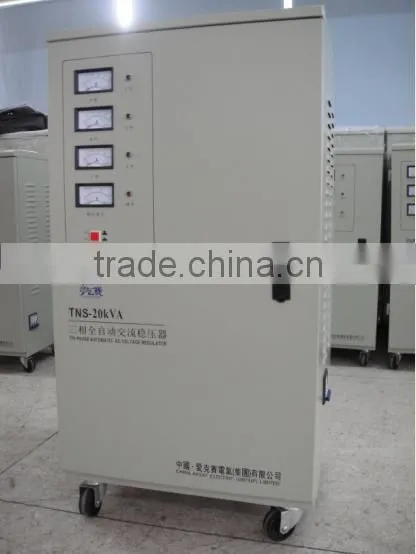

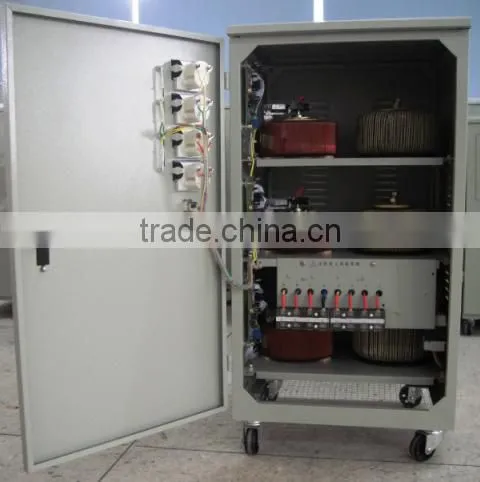

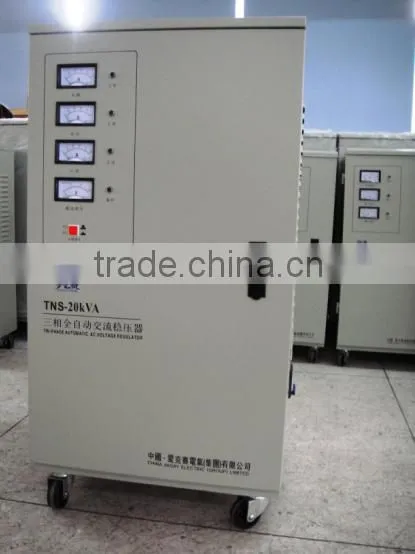

Manufacturer SVC TNS 20KVA Three Phase Servo Motor Type Voltage Stabilizer Price
Advinced Features
Specifications
1)ISO 9001:2008 and CE certification
2)three phase voltage stabilizer & regulator
3)over & under voltage , delay and by pass
Application:
For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc, such as TV-SET,HI-FI,DVD, FAX, Copy machine, Satellite decoder, Printer, Scanner, Air Conditioner, Computer, Test Equipment, Fridge and Freezer, Lighting , Equipment Etc..
Feature:
Automatic voltage regulation
Wide Input Voltage Range, stable output
Large Capacity, high efficiency
High precision
Perfect protections against brownouts & over voltage
Short circuit protection
Selectable delay time
No Additional Waveform Distortion
Global Voltage Customization
Performance:
Input |
Phase |
Three phase |
Voltage |
260-430V AC |
|
Frequency |
50HZ/60Hz; |
|
Adjusting time |
< 1s (when input voltage has a change of 10%) |
|
Output |
Voltage |
380V±3% AC |
Frequency |
50/60HZ |
|
Loading power factor |
0.8 |
|
Protection |
Over Volt. |
yes |
Overheating protection |
yes |
|
Over load /short Circuit |
yes |
|
Delay |
3~8sec |
|
Efficiency |
AC-AC |
>90% |
Environmental |
Operating Temperature |
-5°C~+40°C |
Storage Temperature |
-10~+50°C |
|
Humidity |
20% to 90% |
|
Others |
Waveform distortion |
No additional waveform distortion |
Insulation resistance |
≥3MΩ |
Model & Spec
Three-phase four wire | ||||
| ||||
Spec.(KVA) |
Products size D×W×H(CM) |
PackageD×W×H(CM) |
Weight(KG) |
Qty |
SVC- 1.5 |
40×36×17 |
52×48×28 |
18 |
1 |
SVC- 3 |
42×38×19 |
54×50×31 |
23 |
1 |
SVC- 4.5 |
42×38×19 |
54×50×31 |
27 |
1 |
SVC- 6 |
37×28×68 |
48×40×78 |
39 |
1 |
SVC- 9 |
35×33×78 |
48×45×90 |
48 |
1 |
SVC- 15 |
43×38×73 |
55×51×90 |
85 |
1 |
SVC- 20 |
43×51×91 |
64×55×106 |
124 |
1 |
SVC- 30 |
43×51×91 |
64×55×106 |
197 |
1 |
SVC- 50 |
65×43×95 |
78×55×110 |
260 |
1 |
SVC- 60 |
77×55×100 |
90×67×115 |
260 |
1 |
SVC- 80 |
77×55×100 |
90×67×115 |
290 |
1 |
SVC- 100 |
77×55×100 |
90×67×115 |
350 |
1 |
Regarding the quality as our life from beginning, our company has gained IOS9001 certification for international qualified quality system and what's more, the products have obtained CB, CCC & CE approval. Our products have passed ISO9001 quality management system certification and ISO14001 environment system certification.
Industry, Agruculture, Transportation, Posts and Telecommunications, Military, Railway, Scientific and Cultural fields of large mechanical and electrical equipment, such as metal processing equipment, elevators and medical equipment, computer room controlled equipment, embroidery and textile equipment, air conditioning, radio, television and household appliances lighting ,etc.
Wenzhou Jingkesai Electric Co., Ltd is the branch of China Aksay Electric (Group) Limited. We are a manufacturer of voltage stabilizers, transformers, and regulators with well equipped testing facilities and strong technical force.
Aksay is one of the largest manufacturers and exporters of low voltage electrical equipment in China. Our company founded in 1985 has rich exprience in this line. For these past years, we have made our company larger and modernization, products more outstanding and technolgy higher.
1. What's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
2. How's the delivery time ?
A. Usually it will takes about 15-35 days for production, we try to ensure quality, while reasonable to complete the production.
