STAGE TRUSS for Stage Event Equipment

STAGE TRUSS for Stage Event Equipment thumbnail-1
STAGE TRUSS for Stage Event Equipment thumbnail-2
STAGE TRUSS for Stage Event Equipment photo-1
STAGE TRUSS for Stage Event Equipment photo-2
US$ 30 - 120 MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KLT/COREAT
Model Number:
K44
Contact Supplier Request Quote Chat Now
Guangzhou Coreat Stage Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KLT/COREAT
Model Number K44



Product Description

STAGE TRUSS for stage event equipment

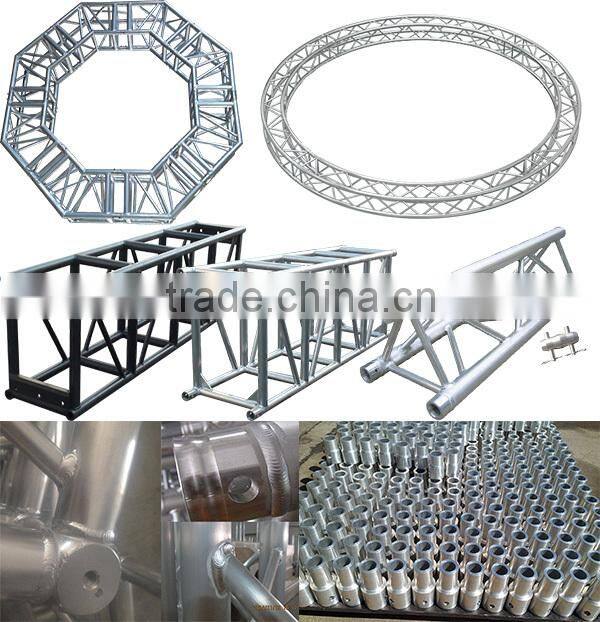

Coreat truss is welded by Aluminum 6082-T6 which is international standard top-quality flight material and the workmanship can reach international standard welding .Has passed load test and can make sure the quality and safety load in hanging.It is light ,rotproofness,durability and connector is easy to set up and dismantle.In order to reduce workforce and materials during making and installation procedure we use conical fast spigot connection on condition that satisfy the requirements in use.As the structure is  fashionable and beautiful and the whole function is in good condition,it is widely used for lighting and speaker hanging in small running performance ,gymnasium,exhibition hall,opera house etc.Other irregular shapes and surface color can be ordered according to the customers' requirement.



Specifications

1. Strong capacity

2. 6082-T6 International Standard Top Quality Flight Aluminium

3. Connection Optional: Spigot, Screw

4. Color: Aluminium or customized color

5. Quickly install and dismantle

6. Good flexibility

7. Long service life

STAGE TRUSS for stage event equipment

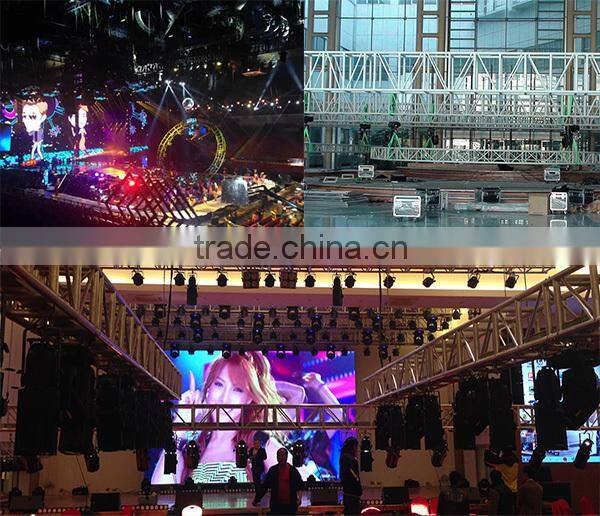

Project pics reference

STAGE TRUSS for stage event equipment





Our Services

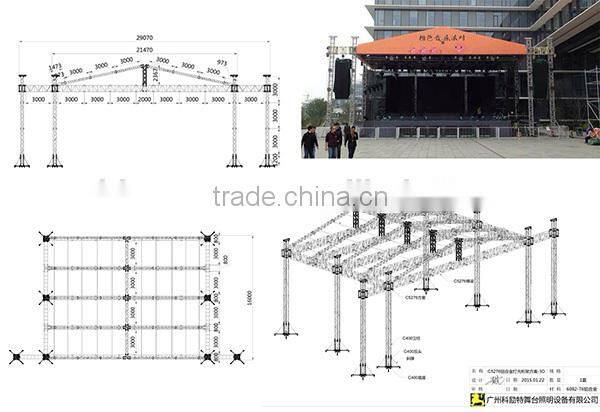

We offer free truss system design service!Tell us your require,and we build your dream!

STAGE TRUSS for stage event equipment

All you have to do is contact us!



Size

STAGE TRUSS for stage event equipment



Model



 Dimension (L*W*T) Main Tube (D*Tmm) Support Tube (D*Tmm) Brace Tube (D*Tmm)

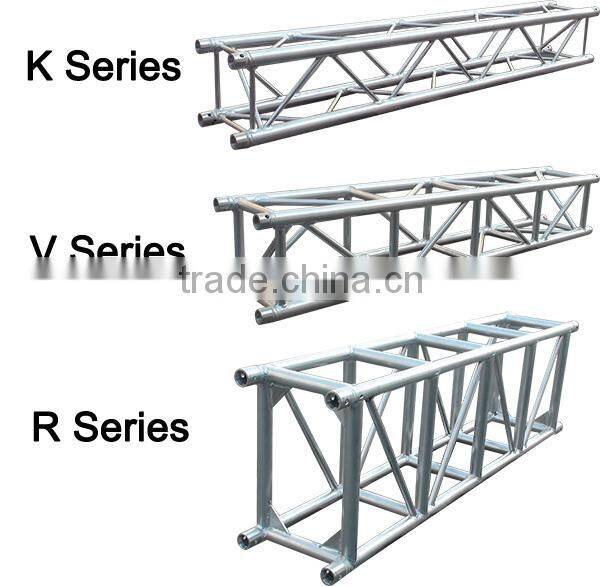

K Series
K24-1 200*200*1000 φ38/2.0 φ16/2.0 φ16/2.0
K24-2 200*200*2000 φ38/2.0 φ16/2.0 φ16/2.0
K24-3 200*200*3000 φ38/2.0 φ16/2.0 φ16/2.0
K31-1 50*300*1000 φ50/2.0 φ19/2.0 φ16/2.0
K31-2 50*300*2000 φ50/2.0 φ19/2.0 φ16/2.0
K31-3 50*300*3000 φ50/2.0 φ19/2.0 φ16/2.0
K33-1 300*300*1000 φ50/2.0 φ19/2.0 φ16/2.0
K33-2 300*300*2000 φ50/2.0 φ19/2.0 φ16/2.0
K33-3 300*300*3000 φ50/2.0 φ19/2.0 φ16/2.0
K34-1 300*300*1000 φ50/2.0 φ19/2.0 φ16/2.0
K34-2 300*300*2000 φ50/2.0 φ19/2.0 φ16/2.0
K34-3 300*300*3000 φ50/2.0 φ19/2.0 φ16/2.0
K44-1 400*400*1000 φ50/3.0 φ38/2.0 φ25/2.0
K44-2 400*400*2000 φ50/3.0 φ38/2.0 φ25/2.0
K44-3 400*400*3000 φ50/3.0 φ38/2.0 φ25/2.0
K44-4 400*400*4000 φ50/3.0 φ38/2.0 φ25/2.0
K54-1 520*520*1000 φ50/3.0 φ38/2.0 φ32/2.0
K54-2 520*520*2000 φ50/3.0 φ38/2.0 φ32/2.0
K54-3 520*520*3000 φ50/3.0 φ38/2.0 φ32/2.0
K54-4 520*520*4000 φ50/3.0 φ38/2.0 φ32/2.0
V Series
V34-1 300*300*1000 φ50/3.0 φ25/2.0 φ25/2.0
V34-2 300*300*2000 φ50/3.0 φ25/2.0 φ25/2.0
V34-3 300*300*3000 φ50/3.0 φ25/2.0 φ25/2.0
V34H-1 350*350*1000 φ50/3.0 φ32/2.0 φ25/2.0
V34H-2 350*350*2000 φ50/3.0 φ32/2.0 φ25/2.0
V34H-3 350*350*3000 φ50/3.0 φ32/2.0 φ25/2.0
V44-1 400*400*1000 φ50/3.0 φ38/2.0 φ25/2.0
V44-2 400*400*2000 φ50/3.0 φ38/2.0 φ25/2.0
V44-3 400*400*3000 φ50/3.0 φ38/2.0 φ25/2.0
V44-4 400*400*4000 φ50/3.0 φ38/2.0 φ25/2.0
V44H-1 450*450*1000 φ50/3.0 φ50/2.0 φ25/2.0
V44H-2 450*450*2000 φ50/3.0 φ50/2.0 φ25/2.0
V44H-3 450*450*3000 φ50/3.0 φ50/2.0 φ25/2.0
V44H-4 450*450*4000 φ50/3.0 φ50/2.0 φ25/2.0
V54-1 520*520*1000 φ50/3.0 φ50/2.0 φ32/2.0
V54-2 520*520*2000 φ50/3.0 φ50/2.0 φ32/2.0
V54-3 520*520*3000 φ50/3.0 φ50/2.0 φ32/2.0
V54-4 520*520*4000 φ50/3.0 φ50/2.0 φ32/2.0
R Series
R44H-1 450*450*1000 φ50/3.0 φ50/2.0 φ25/2.0
R44H-2 450*450*2000 φ50/3.0 φ50/2.0 φ25/2.0
R44H-3 450*450*3000 φ50/3.0 φ50/2.0 φ25/2.0
R44H-4 450*450*4000 φ50/3.0 φ50/2.0 φ25/2.0
R46-1 400*600*1000 φ50/3.0 φ50/2.0 φ25/2.0
R46-2 400*600*2000 φ50/3.0 φ50/2.0 φ25/2.0
R46-3 400*600*3000 φ50/3.0 φ50/2.0 φ25/2.0
R46-4 400*600*4000 φ50/3.0 φ50/2.0 φ25/2.0
R56-1 500*600*1000 φ50/3.0 φ50/2.0 φ25/2.0
R56-2 500*600*2000 φ50/3.0 φ50/2.0 φ25/2.0
R56-3 500*600*3000 φ50/3.0 φ50/2.0 φ25/2.0
R56-4 500*600*4000 φ50/3.0 φ50/2.0 φ25/2.0
R57-1 520*760*1000 φ50/3.5 φ50/2.0 φ32/2.0
R57-2 520*760*2000 φ50/3.5 φ50/2.0 φ32/2.0
R57-3 520*760*3000 φ50/3.5 φ50/2.0 φ32/2.0
R57-4 520*760*4000 φ50/3.5 φ50/2.0 φ32/2.0
R67-1 600*760*1000 φ50/3.5 φ50/2.0 φ32/2.0
R67-2 600*760*2000 φ50/3.5 φ50/2.0 φ32/2.0
R67-3 600*760*3000 φ50/3.5 φ50/2.0 φ32/2.0
R67-4 600*760*4000 φ50/3.5 φ50/2.0 φ32/2.0
RS67-1 600*760*1000 φ50/4.0 φ50/2.0 φ32/2.0
RS67-2 600*760*2000 φ50/4.0 φ50/2.0 φ32/2.0
RS67-3 600*760*3000 φ50/4.0 φ50/2.0 φ32/2.0
RS67-4 600*760*4000 φ50/4.0 φ50/2.0 φ32/2.0

Other size can be customized,please contact us for more information.



Color

STAGE TRUSS for stage event equipment



Company Information

Coreat stage & lighting equipmengt Co., Ltd is a professional truss, stage equipment and accessories manufacturer with 6 years experince. Coreat truss is welded by Aluminum 6082-T6 which is international standard top-quality flight material and the workmanship can reach international standard welding .Has passed load test and can make sure the quality and safety load in hanging.It is light ,rotproofness,durability and connector is easy to set up and dismantle. Our factory mainly produces diversified items and sizes of aluminum alloy truss, display truss, large-scale truss, layer/ scaffolding, space truss structure, manual lighting stand, line array speaker  truss, stage truss,  folding stage, stage lift hoist. We also offer truss OEM&ODM service.

       At present, our product C10-4/C20-2 Electric Chain Hoist with international standards has independent researched and developed by our company. The unique design of electric chain hoist is the original technology development and production of our company. And it has been certificated CE by European Community and obtained appearance design and technology patent, there is a great difference with the advantages of domestic production.

STAGE TRUSS for stage event equipment

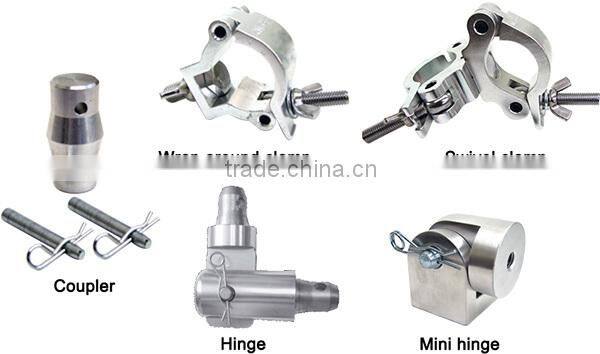

Accessories

STAGE TRUSS for stage event equipment



Packaging & Shipping

Plastic film or as requested

STAGE TRUSS for stage event equipment

STAGE TRUSS for stage event equipment
