Coreat truss is welded by Aluminum 6082-T6 which is international standard top-quality flight material and the workmanship can reach international standard welding .Has passed load test and can make sure the quality and safety load in hanging.It is light ,rotproofness,durability and connector is easy to set up and dismantle.In order to reduce workforce and materials during making and installation procedure we use conical fast spigot connection on condition that satisfy the requirements in use.As the structure is fashionable and beautiful and the whole function is in good condition,it is widely used for lighting and speaker hanging in small running performance ,gymnasium,exhibition hall,opera house etc.Other irregular shapes and surface color can be ordered according to the customers' requirement.
Specifications
1. Strong capacity
2. 6082-T6 International Standard Top Quality Flight Aluminium
3. Connection Optional: Spigot, Screw
4. Color: Aluminium or customized color
5. Quickly install and dismantle
6. Good flexibility
7. Long service life

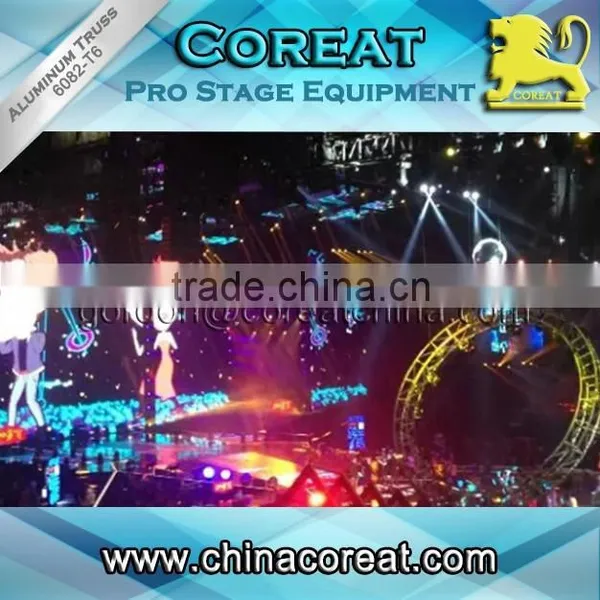

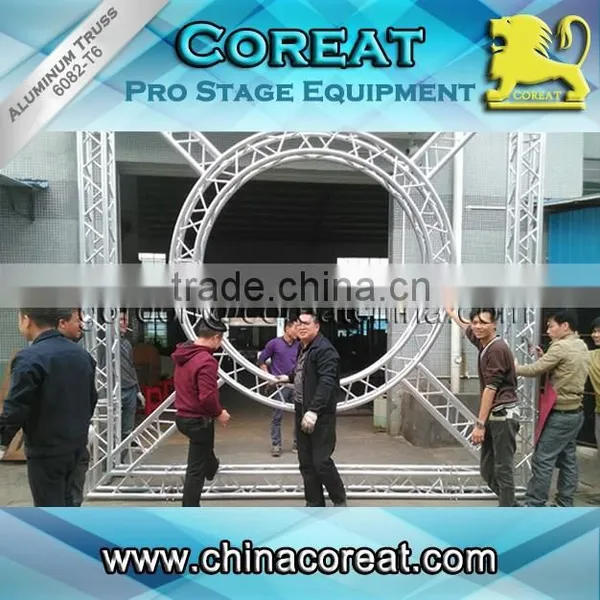

Project pics reference
We offer free truss system design service!Tell us your require,and we build your dream!
All you have to do is contact us!
|
Model
|
Dimension (L*W*T) | Main Tube (D*Tmm) | Support Tube (D*Tmm) | Brace Tube (D*Tmm) |
| K Series | ||||
| K24-1 | 200*200*1000 | φ38/2.0 | φ16/2.0 | φ16/2.0 |
| K24-2 | 200*200*2000 | φ38/2.0 | φ16/2.0 | φ16/2.0 |
| K24-3 | 200*200*3000 | φ38/2.0 | φ16/2.0 | φ16/2.0 |
| K31-1 | 50*300*1000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K31-2 | 50*300*2000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K31-3 | 50*300*3000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K33-1 | 300*300*1000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K33-2 | 300*300*2000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K33-3 | 300*300*3000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K34-1 | 300*300*1000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K34-2 | 300*300*2000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K34-3 | 300*300*3000 | φ50/2.0 | φ19/2.0 | φ16/2.0 |
| K44-1 | 400*400*1000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| K44-2 | 400*400*2000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| K44-3 | 400*400*3000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| K44-4 | 400*400*4000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| K54-1 | 520*520*1000 | φ50/3.0 | φ38/2.0 | φ32/2.0 |
| K54-2 | 520*520*2000 | φ50/3.0 | φ38/2.0 | φ32/2.0 |
| K54-3 | 520*520*3000 | φ50/3.0 | φ38/2.0 | φ32/2.0 |
| K54-4 | 520*520*4000 | φ50/3.0 | φ38/2.0 | φ32/2.0 |
| V Series | ||||
| V34-1 | 300*300*1000 | φ50/3.0 | φ25/2.0 | φ25/2.0 |
| V34-2 | 300*300*2000 | φ50/3.0 | φ25/2.0 | φ25/2.0 |
| V34-3 | 300*300*3000 | φ50/3.0 | φ25/2.0 | φ25/2.0 |
| V34H-1 | 350*350*1000 | φ50/3.0 | φ32/2.0 | φ25/2.0 |
| V34H-2 | 350*350*2000 | φ50/3.0 | φ32/2.0 | φ25/2.0 |
| V34H-3 | 350*350*3000 | φ50/3.0 | φ32/2.0 | φ25/2.0 |
| V44-1 | 400*400*1000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| V44-2 | 400*400*2000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| V44-3 | 400*400*3000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| V44-4 | 400*400*4000 | φ50/3.0 | φ38/2.0 | φ25/2.0 |
| V44H-1 | 450*450*1000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| V44H-2 | 450*450*2000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| V44H-3 | 450*450*3000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| V44H-4 | 450*450*4000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| V54-1 | 520*520*1000 | φ50/3.0 | φ50/2.0 | φ32/2.0 |
| V54-2 | 520*520*2000 | φ50/3.0 | φ50/2.0 | φ32/2.0 |
| V54-3 | 520*520*3000 | φ50/3.0 | φ50/2.0 | φ32/2.0 |
| V54-4 | 520*520*4000 | φ50/3.0 | φ50/2.0 | φ32/2.0 |
| R Series | ||||
| R44H-1 | 450*450*1000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R44H-2 | 450*450*2000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R44H-3 | 450*450*3000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R44H-4 | 450*450*4000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R46-1 | 400*600*1000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R46-2 | 400*600*2000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R46-3 | 400*600*3000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R46-4 | 400*600*4000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R56-1 | 500*600*1000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R56-2 | 500*600*2000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R56-3 | 500*600*3000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R56-4 | 500*600*4000 | φ50/3.0 | φ50/2.0 | φ25/2.0 |
| R57-1 | 520*760*1000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R57-2 | 520*760*2000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R57-3 | 520*760*3000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R57-4 | 520*760*4000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R67-1 | 600*760*1000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R67-2 | 600*760*2000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R67-3 | 600*760*3000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| R67-4 | 600*760*4000 | φ50/3.5 | φ50/2.0 | φ32/2.0 |
| RS67-1 | 600*760*1000 | φ50/4.0 | φ50/2.0 | φ32/2.0 |
| RS67-2 | 600*760*2000 | φ50/4.0 | φ50/2.0 | φ32/2.0 |
| RS67-3 | 600*760*3000 | φ50/4.0 | φ50/2.0 | φ32/2.0 |
| RS67-4 | 600*760*4000 | φ50/4.0 | φ50/2.0 | φ32/2.0 |
Other size can be customized,please contact us for more information.
Guangzhou Coreat Stage Equipment Co., Ltd is a professional manufacturer in possession of research, developing, manufacturing, sales and technical services in pro stage products. Our company team are committed to absorbing international advanced technology and actively innovating and breaking through the old ideas in stage industry, being a new stage equipment manufacturer.
Our Main Products Include Various modern stage machinery , chain hoist, stage truss, exhibition truss, moving stage, combined seating,rotating lighting truss etc. we can also make some special specification obey on clients' s purpose-design.
Plastic film or as requested
