Home > Products > LXXJB Planetary Mixer > Planetary dispersion kneader
Planetary dispersion kneader
- 240 Set / Sets per Month
- Shanghai Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Mixer Type: | Planetary Mixer | Product Type: | Other, Lithium Battery |
Application: | Other, Liquid, Planetary dispersion kneader | Additional Capabilities: | Other, Vacuum resistant | Place of Origin: | Jiangsu, China |
Brand Name: | Huabao TM | Model Number: | LXXJB-300L | Max. Loading Capacity: | 180L |
Voltage: | 380V~440V/3Phases | Power(W): | 18500 | Dimension(L*W*H): | 2000*1200*4600*2pcs |
Certification: | ISO90001:2000 & CE & SGS, GB/T19001-2000 idt ISO9001-2000 & CE & SGS | Warranty: | 1~5 years | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.Planetary dispersion kneader2.CE & ISO & SGS.
3.Silicon disperser mixer.
4.Whole silicone line
1.LXDLH-300Ltr Planetary dispersion kneader :
LXDLH means the Longxin brand planetary power mixer, Huabao TM & Longxin TM belongs to the Longxin company, 300Ltr means the Planetary power mixer buckets Volume is 300Liters, could filling 300*60%=180Liters Material.
2. Planetary dispersion kneader Aplication:
The Vacuum planetary power mixer is a Special Mixer & disperser designed for High Viscous Fluid or Sticky Material.
a,PU Sealant, Silicone sealant, RTV silicone, HTV silicone,etc;
b,Silicone Rubber+ Silicon Dioxide;
c,Oil Ink, Li-ion Battery Paste,etc.
3. Planetary dispersion kneader Feature:

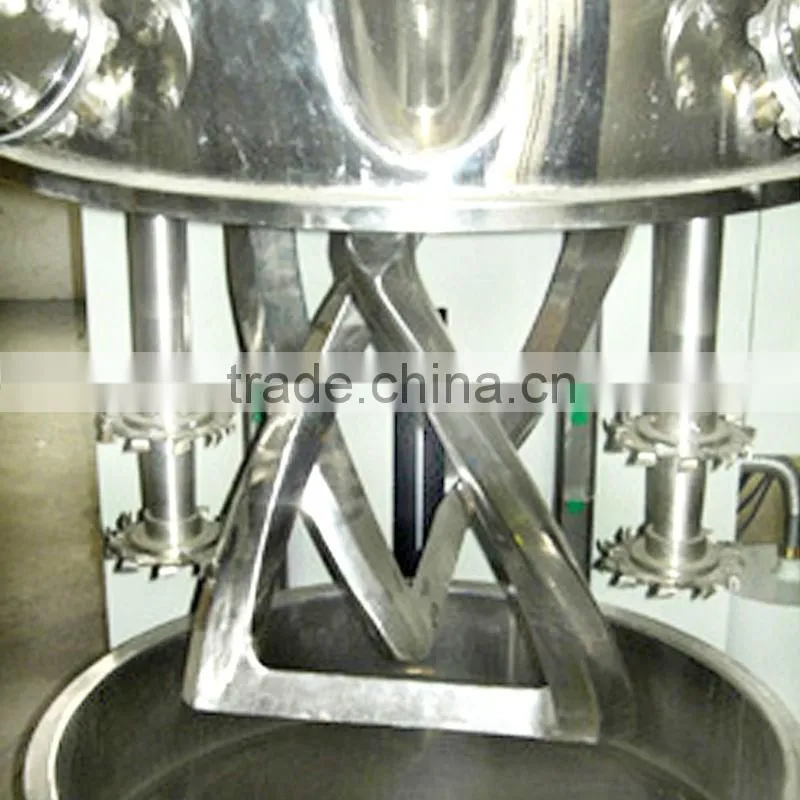

The blades Rotate,Besides moves arround the center axis of the bucket. Material will be fine mixed in a short time. Arm type & Double Column Cylinder type planetary mixer.
4. Planetary dispersion kneader Technical Parameters:
Type | Design Volume L | Feeding Volume L | Heating Power KW | Mixing Power KW | Planet peed r/min | Rotate peed R/min | Normal ischarge method |
LXXJB-2.5 | 2.5 | 1.5 | 1*2=2 | 0.75 | 28 | 75 | Hydraulic Extruding with the Hydraulic discharge machine |
LXXJB-6 | 6 | 3.6 | 1*2=2 | 1.5 | 28 | 75 | |
LXXJB-20 | 20 | 12 | 2*3=6 | 3 | 28 | 75 | |
LXXJB-60 | 60 | 36 | 3*3=9 | 4 | 28 | 75 | |
LXXJB-100 | 100 | 60 | 4*3=12 | 7.5 | 28 | 75 | |
LXXJB-200 | 200 | 120 | 5*3=15 | 15 | 28 | 75 | |
LXXJB-350 | 350 | 210 | 6*3=18 | 22 | 28 | 75 | |
LXXJB-600 | 600 | 360 | 5*6=30 | 37 | 28 | 75 | |
LXXJB-1000 | 1000 | 600 | 7*6=42 | 45 | 28 | 75 | |
LXXJB-2000 | 2000 | 1200 | 8*6=48 | 75 | 28 | 75 |
5.FAQ about Planetary dispersion kneader :
1.A:I want to produce the silicone sealant,PU,Liquid, which type suit for me?
B:Greats, pls don't hesitate to contact Mr James.
3.A:Can the planetary mixer used for Ink, cosmetics or food?
B:Exactly,but the structure is a bit difference.
4.What's the MOQ?
B:1 set.
5.A:What's the delivery port?
B:Shanghai, Nanjing, Guangzhou, Shenzhen,etc.
6.A:Delivery time?
B:Some type in stock, ordinary 45~50 days.
7.Payment terms?
B:Negotiable, T/T,L/C,etc.

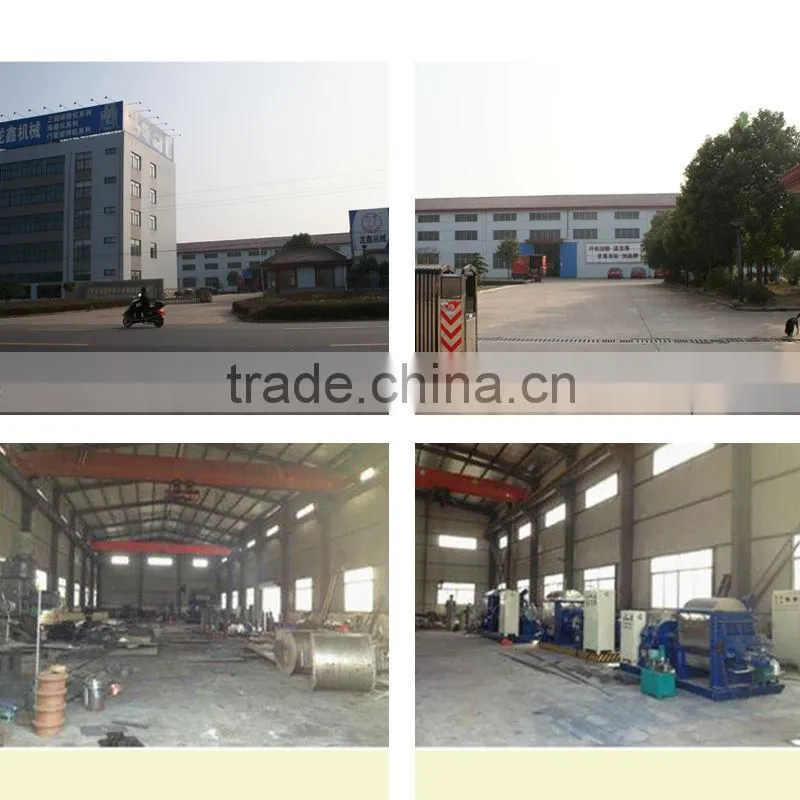

6.Longxin TM & Huabao TM Honor(Parts):
Warmly welcome friends come here visiting! Wish you become one of the giants in this photo!
7.Not only one Award:
The Longxin company is the Permanent Chairman of the Chinese Daily Chemical Industry Association. Besides, the Longxin is AAA contract sign up company.
8.Feel free contact your personal account manager:
