Specifications
1.TM double sigma mixer for silicon test.2.With ISO & CE verified.
3.Viscous fluid mixer.
4.Stainless steel.
5.Whole line

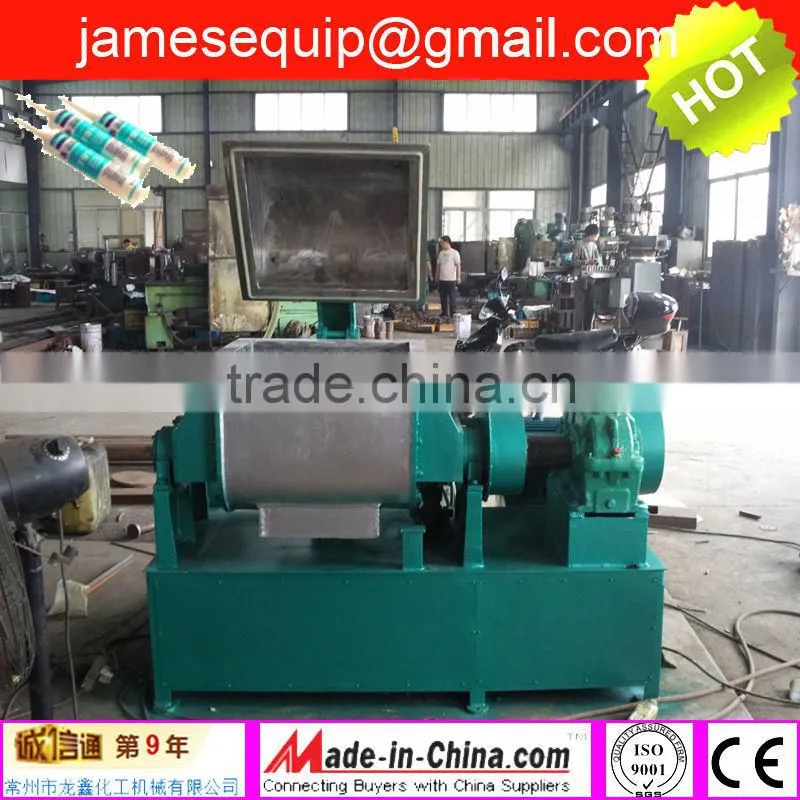

1.LXNHZ-50L silicon kneader double sigma mixer for silicon test 50L with vacuum for produce Silicon sealant:
LXNHZ means the Longxin Company Unique design Vacuum Kneader,Huabao is a famous trade mark belongs to the Longxin company, 50Ltr means the Chamber is 50Liters,wich could filling 50*60%=30Liters Material.
2.Pre-Mixing for silicone sealant (Viscous Fluid):
The Vacuum silicone kneader double sigma mixer is Special Mixer which designed for High Viscous Fluid or Sticky Material.
E.g.:
a,Chewing gum,Bubble gum, Double Mint;
b,Silicone Rubber+ Silicon Dioxide;
c,Oil Ink, Li-ion Battery Paste,etc.

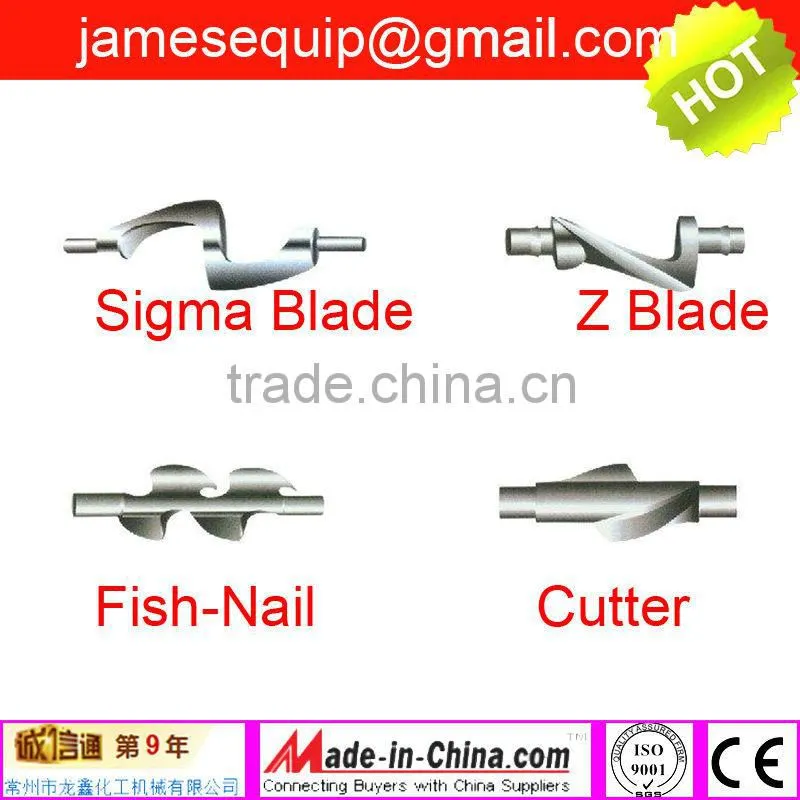

3.Blade Feature:
Sigma type Blades,Z blades, Fish Nail Blades, Cutter Type Blades,etc.
4.Technical Parameters:
|
Model
|
Chamber Volum(L) |
Drive motor power (KW) |
Mixing Speed (rpm) |
Discharge mode |
Heating |
|||||
Full volume |
Feeding amount |
Paddle fast / slow paddle |
Optional parameters | Optional parameters | ||||||
LXNHZ-5 |
5 |
3 |
2.2-4 |
75/50 |
Manual / Hydraulic tilting |
Running Hot oil |
Electrical heating |
Pressure Steam |
||
LXNHZ-20 |
20 |
12 |
3-5.5 |
63/42 |
||||||
LXNHZ-50 |
50 |
30 |
4-7.5 |
63/42 |
||||||
LXNHZ-100 |
100 |
60 |
5.5-7.5 |
43/29 |
||||||
LXNHZ-200 |
200 |
120 |
7.5-15 |
43/29 |
Hydraulic tilting |
The bottom pumping |
Screw extruding |
|||
LXNHZ-300 |
300 |
180 |
11-18.5 |
43/29 |
||||||
LXNHZ-500 |
500 |
300 |
18.5-30 |
43/29 |
||||||
LXNHZ-1000 |
1000 |
600 |
22-55 |
32/22 |
||||||
LXNHZ-1500 |
1500 |
900 |
30-90 |
32/22 |
||||||
LXNHZ-2000 |
2000 |
1200 |
45-110 |
32/22 |
||||||
LXNHZ-3000 |
3000 |
1800 |
55-130 |
33/22 |
||||||
|
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Frequency inverter control the main motor speed,if necessory. | ||||||||||
5.Characters & Constructions:
1) Vacuum Silicone Rubber Kneader mixers consist:normal pressure one, high pressure one and vacuum type.
2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.
3) Discharge method: tilt dump, bottom dump and screw discharge.
4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.
5) The cover is controlled by hydraulic system.

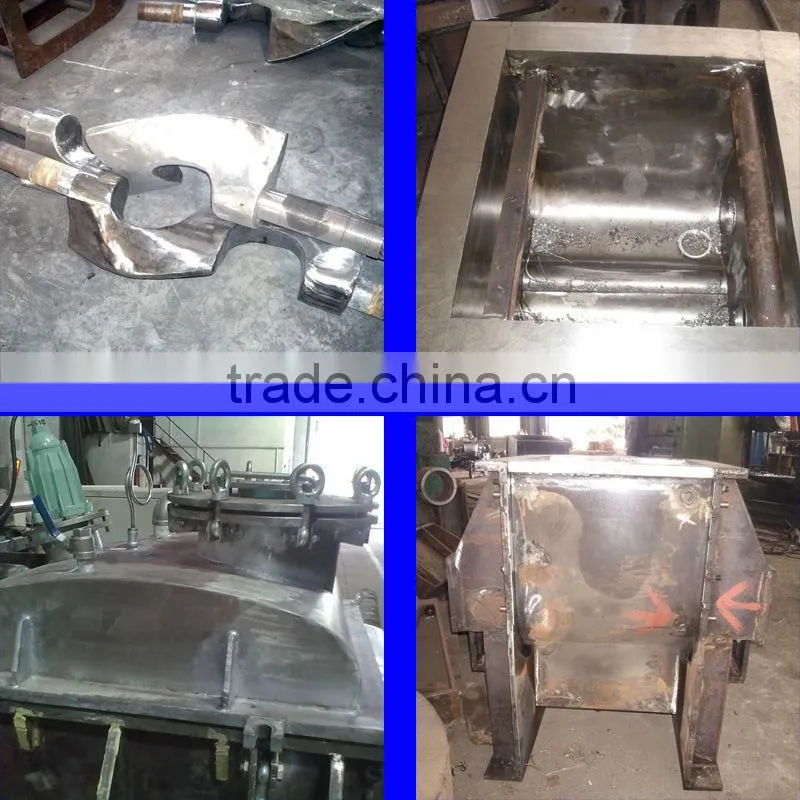

6.Longxin & Huabao Honor(Parts):
Warmly welcome friends come here visiting! Wish you become one of the giants in this photo!

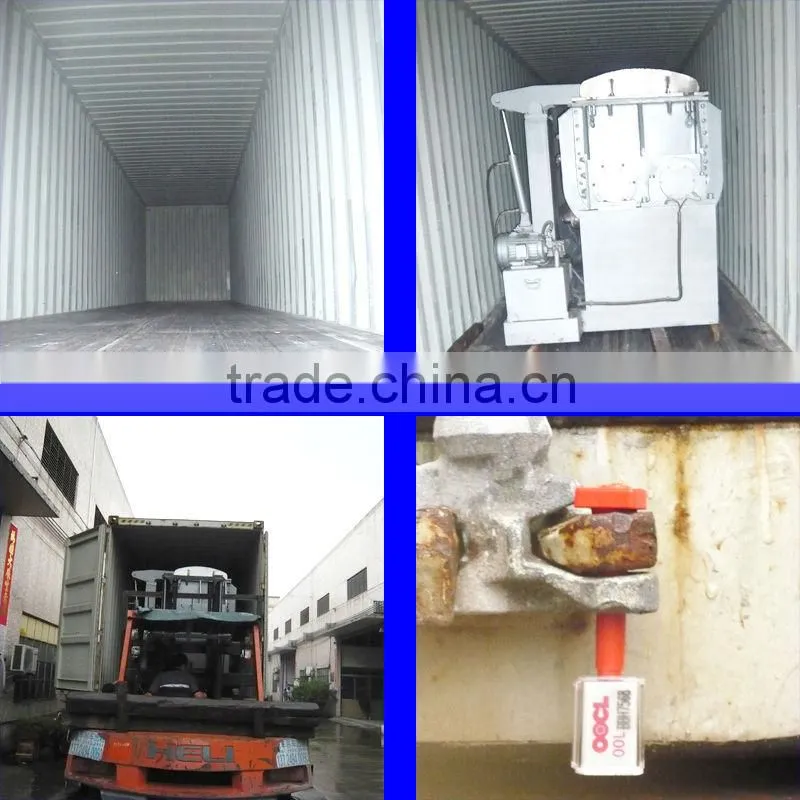

7.Viscousity Material Mixers for Uploading:
Three Mixers in a 40'HQ.Mixers to Middle East.
8.Not only one Award:

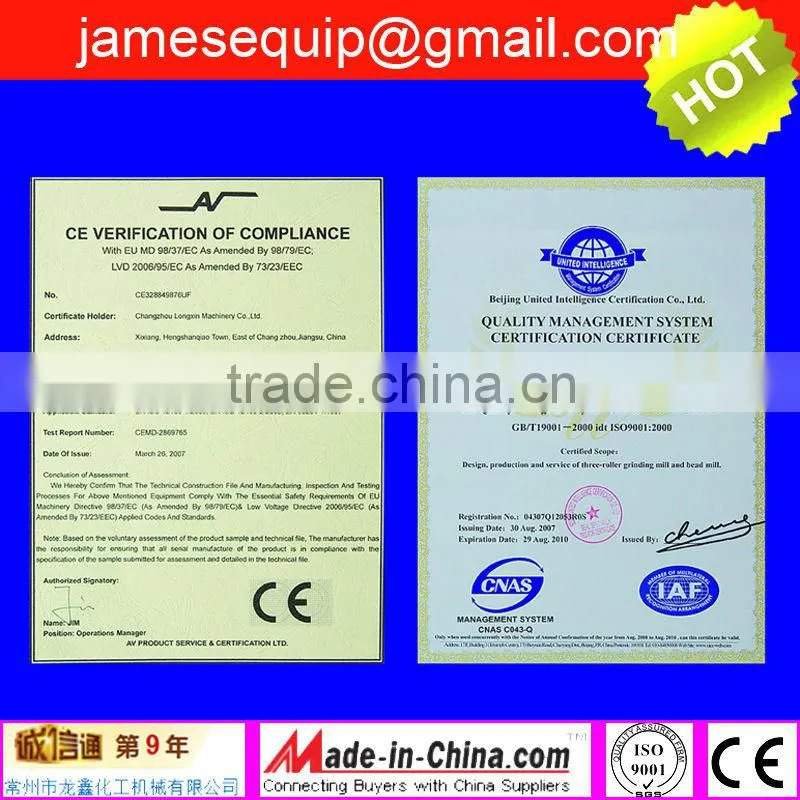

The Longxin company is the Permanent Chairman of the Chinese Daily Chemical Industry Association. Besides, the Longxin is AAA contract sign up company. The machine awards ISO9001:2000&CE verification.
9.Feel free contact your personal account manager:
