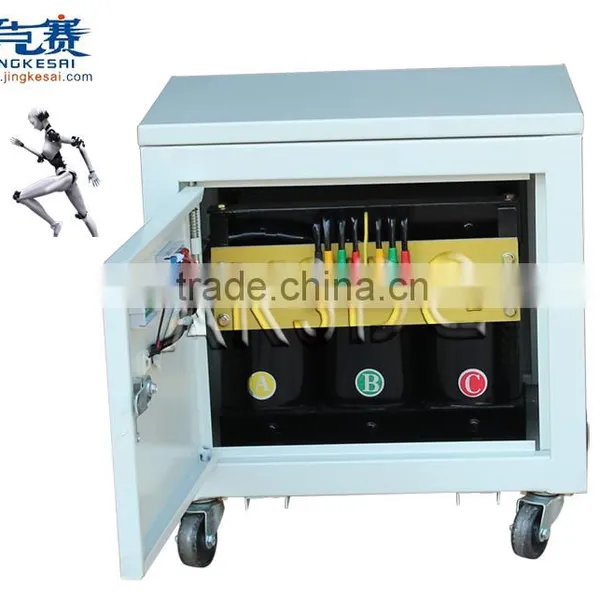

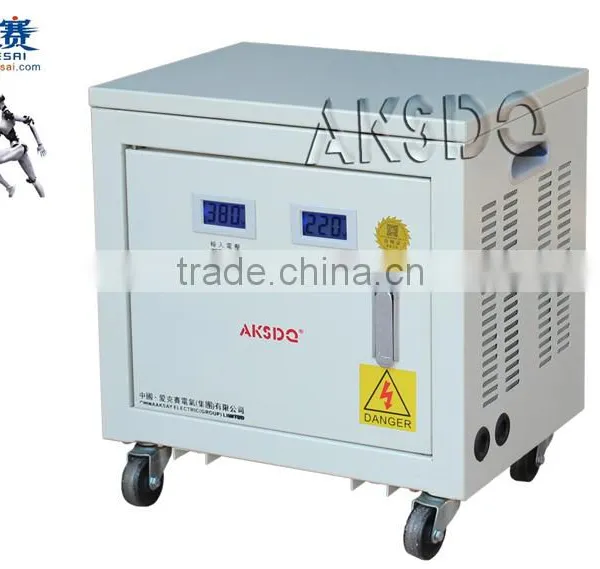

Price Three Phase Dry Type Step Down Voltage Transformer or Toroidal Winding Isolation Transformer for Machine Made in Yueqing Quality Choice
- 5000 Set / Sets per Month
- Ningbo or Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | AKSDQ | Model Number: | SG |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Product Description
Price Three Phase Dry Type Step Down Voltage Transformer or Toroidal Winding Isolation Transformer for Machine Made in Yueqing
Specifications
Isolation Transformers
1.Customer first
2.Sincere cooperation
3.Mutually beneficial
4.Joint development
Isolation Transformer Description:
Isolation Transformers
DG, SG series of single, three phase dry type transformer is our company for many years in high-quality materials and advanced process technology and production, with fire, moisture, safety and reliability, save energy and maintenance advantages of convenience, to look deep into the load center can be used subway, high-rise buildings, airports, railway stations, docks, tunnels, power transmission and distribution businesses and places.
DG, SG series of single, three phase dry type transformers, mainly for the exchange of 50-60Hz, voltage not exceeding 1000V supply a variety of places, products of various input and output voltage, join groups, tap line group capacity allocation, can be designed according to user requirements and manufacturing.
Isolation Transformers Product performance & basic parameters
1.Input Voltage:Rated voltage ± 10%
2.Output Voltage : Rated voltage ± 5% (no load)
3.Frequency :50-60Hz
4.Efficiency :98%
5.Waveform distortion: No additional waveform distortion
7.Features : With input voltage output voltage and current directions, etc.
8.Protection :With over-current protection, continuous work unattended
9.Ambient temperature : -15 º C-± 40 º C
10.Insulation resistance : ≥ 50M Euro
11.Overload :Twice the rated current, 1 min
13.Electric strength :Frequency sinusoidal voltage 2000V lasted 1 minute no breakdown and flashover
14.Altitude :<5000M
15.Relative Humidity :<90%
Isolation Transformers
Note: No serious impact place to install the transformer insulating gas vapors, chemical deposition, dust, dirt and other explosive and corrosive media.
Spec. | Body Size (cm) | Shell Size (cm) | Weight (kg) | Spec. | Body Size (cm) | Shell Size (cm) | Weight (kg) |
SG-10KVA | 52×42×52 | 70×35×77 | 115 | SG-150KVA | 85×37×68 | 750 | |
SG-15KVA | 52×42×52 | 70×35×77 | 165 | SG-180KVA | 95×45×83 | 930 | |
SG-20KVA | 55×28×65 | 80×40×87 | 176 | SG-200KVA | 95×45×83 | 1080 | |
SG-30KVA | 55×28×65 | 80×40×87 | 200 | SG-250KVA | 95×45×83 | 1180 | |
SG-40KVA | 60×26×38 | 80×40×87 | 245 | SG-300KVA | 105×45×95 | 1450 | |
SG-50KVA | 60×26×38 | 80×40×87 | 270 | SG-320KVA | 105×45×95 | 1700 | |
SG-60KVA | 65×30×45 | 90×50×95 | 330 | SG-350KVA | 105×45×95 | 1950 | |
SG-70KVA | 65×30×45 | 90×50×95 | 360 | SG-400KVA | 115×55×105 | 2150 | |
SG-80KVA | 75×35×68 | 100×50×105 | 430 | SG-450KVA | 115×55×105 | 2450 | |
SG-100KVA | 75×35×68 | 100×50×105 | 500 | SG-500KVA | 120×60×115 | 2700 | |
SG-120KVA | 75×35×68 | 100×50×105 | 580 | SG-600KVA | 120×60×115 | 2950 |
Regarding the quality as our life from beginning, our company has gained IOS9001 certification for international qualified quality system and what's more, the products have obtained CB, CCC&CE approval.Our products have passed ISO9001 quality management system certification and ISO14001 environment system certification.
Regarding the quality as our life from beginning, our company has gained ISO9001 certificate for international qualified quality system and what's more,the products have obtained CB,CCC & CE approval. Our company has established long term business connection with clients from all over the world. Enjoying high reputation on the market is a result of excellent quality and first-class services.
1. What's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
2. How's the delivery time ?
A. Usually it will takes about 15-35 days for production, we try to ensure quality, while reasonable to complete the production.
