SG series three roll grinder

Specifications

1.three roll grinder for chemicals
2.Warranty:1 year
3.CE&ISO&SGS
4.Advanced version

SG series three roll grinder

1 Brief introduction

     Three roll mill is the ideal grinding machine for paste materials, such as ink, paint, coating, pigment, cosmetic, electronic and so on.

The roll is molding centrifugally, casting by chilled-alloy steel (15-25mm, HS 68-75). The three rolls are cambered to match the grinding and prolong the working life. Different cambers satisfy the fineness and efficiency. For the common materials, the grinding times is depending on the original particle size and the hardness. The end particle is about 3-18 micron after grinding for one to more times.

2 The working principle

   The three roll is composed of three horizontally positioned rolls rotating in opposite directions and at different speeds. The materials to be milled is placed between the feed and center rolls and gets transferred from the center roll to the apron roll by adhesion. Milled materials are scraped from the apron mill by a take-off knife. The cycle can be repeated to improve dispersion or until particle size equilibrium is reached. The shear forces between adjacent rolls generate the dispersion. Decreasing the distance between rolls produces greater shear but also reduces throughput.

The three roll mill is equipped the cooling water system in the rolls. It can adjust the flow of cooling water to change the temperature of roll, then to work continuously.



Parameters of SG series three roll grinder

Model		SG6”	SG9”	SG12”	SG16”	SG16” Length
Roller diameter(mm)		150	260	305	406	406
Roll working length(mm)		300	675	760	810	1000
Height of outlet (mm)		660	580	650	820	820
Roll rotating speed	Low speed roll	34	23	15.8	14	14
	Medium speed roll	78	64	47.4	43	43
	High speed roll	181	183	142	130	130
Main motor power (KW)		3	7.5	11	18-30	22
Machine weight (kg)		500	2000	3800	5300	5800
Overall dimension LxWxH (mm)		920*880*1150	1690*1330*1300	1655*1490*1400	2150*1795*1600	2350*1750*1600
Packing dimension LxWxH (mm)		1000*1000*1400	1800*1450*1800	1750*1600*1750	2250*1850*1950	2450*1850*2000
Productivity (kg/h)		5-40	20-80	30-110	40-150	40-150





3.The Longxin S-series three roller milling machine is designed for milling
E.g.:
a,Guar Gum,Soap, Offset ink, Printing ink;
b,RTV Silicone Rubber+ Silicon Dioxide;
c,Oil Ink, Li-ion Battery Paste,etc.

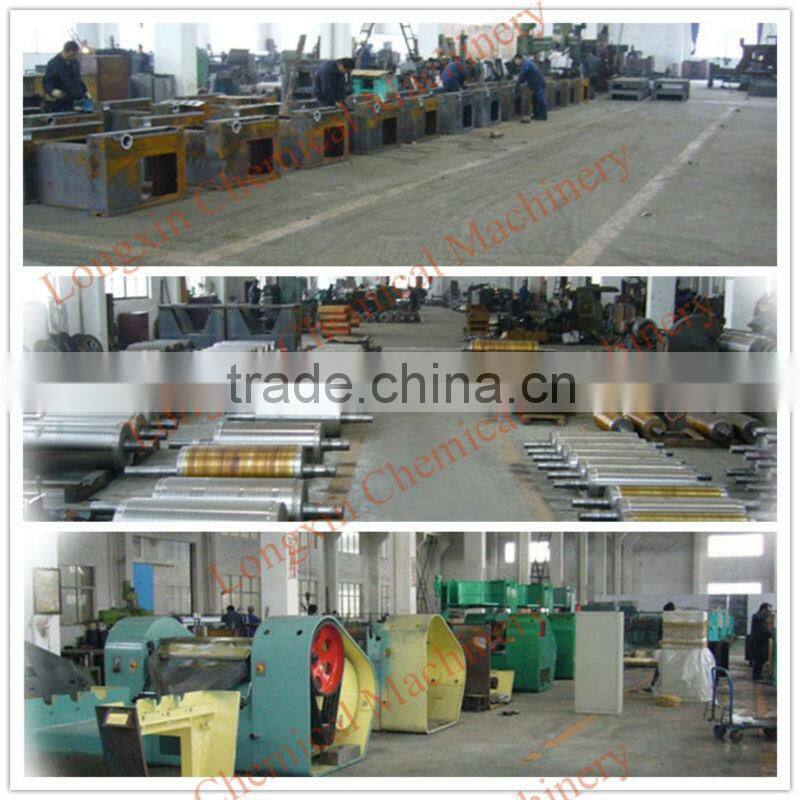

4.Partial photos of our workshop&project
