Help CenterAC Full Automatic Voltage Regulator Spare Part
Related Products
-
Mitsubishi Alternator Voltage RegulatorUS$ 1,305.3 - 1,631.6MOQ: 1 Set -
SVC/TND 5000w Single Phase High Prcision Automatic ac Voltage Stabilizer /YueQing WenZhou ChinaUS$ 71.19 - 82.5MOQ: 1 Set
-
2014 New Product Servo Motor Voltage RegulatorUS$ 1,305.3 - 1,631.6MOQ: 1 Set
-
AVR Voltage StabilizerUS$ 49.5 - 66MOQ: 1 Set
-
Automatic Voltage Stabilizer/regulator 5000vaUS$ 66 - 82.5MOQ: 10 Sets
Specifications
1)0.5K,1k,2k,3k,5k,8k,10k,15k,20kva
2) servo motor voltage stabilizer
3) one year warrant
Performance
| Input voltage | 150V-260V |
Output voltage |
220 ± 3% with 110V ± 3% |
| Phase | Single-phase |
| Frequency | 50Hz/60Hz |
| Response time | Within 1 see. against 10% input voltage deviation |
| Environment temperature | -5 degree—+40degree |
| Opposite degree of humidity | Less than < 95% |
| Waveform distortion | No-lack distortion |
| Insulation resistance | Comply with majority international standard |
General

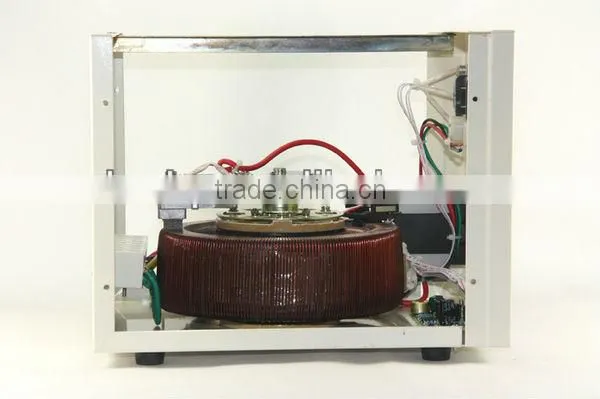

SVC single-phase high accuraty full automatic AC voltage stabilizers Series is key series of our products, It is made of contact type selfcouping voltage regulator, servo motor, automatic controlcircuit and so on. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carton brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
Having the advantages such as wide varieties, complete specifications, beautiful appearance,etc. and the characte ristics such as undistorted waveform,high efficiency, reliable performance, long-term operation,etc., and also being provided with the protective functions such as timedelay, over-voltage, etc., the series of stabilizers, of the gen eral type, are the ideal voltage stabilizer soruces which can be widely can be applied o any occasions requiring power to assure the normal operation of your power driven equipment.
Application
For office equipment,test equipment,medical equipment,industrial equipment,household appliance,lighting system,commucation system,etc.
