Specifications
LXS260 three roller grinder machine for Ink1.warranty:1 year
2.High efficiency
3.Lower consumption
4.ISO& CE

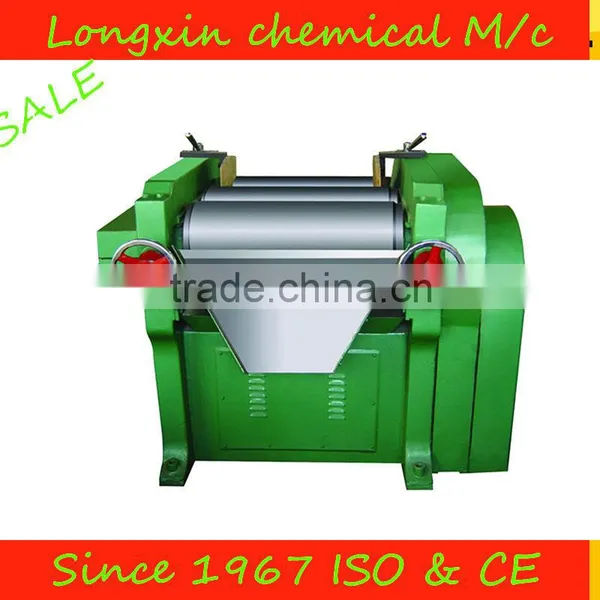

1.LXS260 three roller mill/grinder mill/rolling mill Three roller grinder Calender machine for ink or silicon sealant base material:
LXS260 means the Longxin TM Common DN260 size three roller calender machine. The Roller size is 260mm. The other parameters are given below.
2.Milling or Grinding for Viscous Fluid(Ink & Silicone sealant):
The Longxin S260 three roller milling machine is designed for milling the viscous fluid or Sticky Material.
E.g.:
a,Guar Gum,Soap, Offset ink, Printing ink;
b,RTV Silicone Rubber+ Silicon Dioxide;
c,Oil Ink, Li-ion Battery Paste,etc.

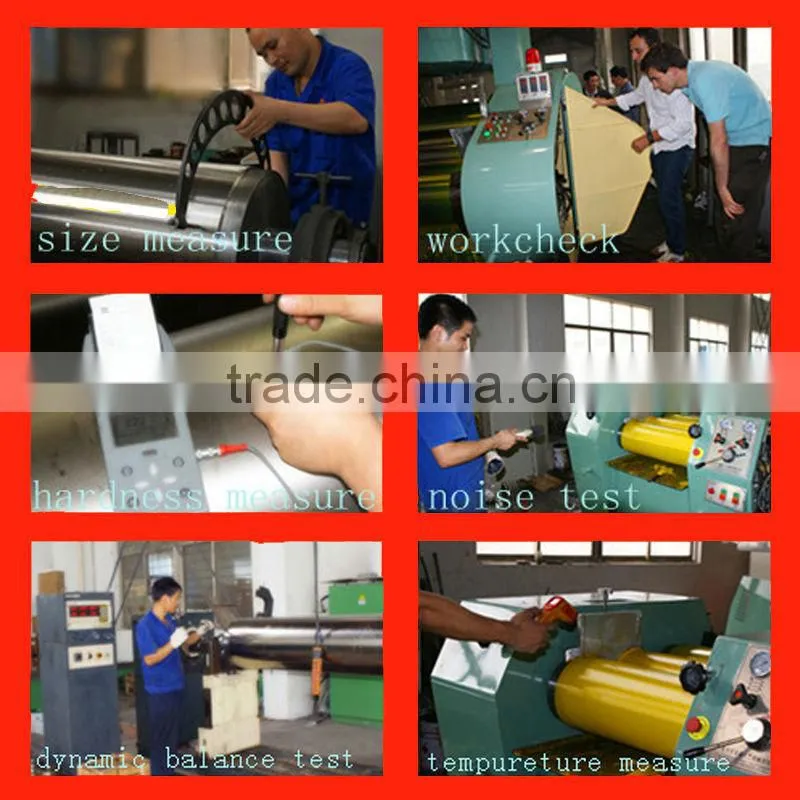

3.Fine checking during manufacturing:
The three roller working in different speed, The speed is setted according to the over 40 years experience, nowadays, all the same factory follows the Longxin.

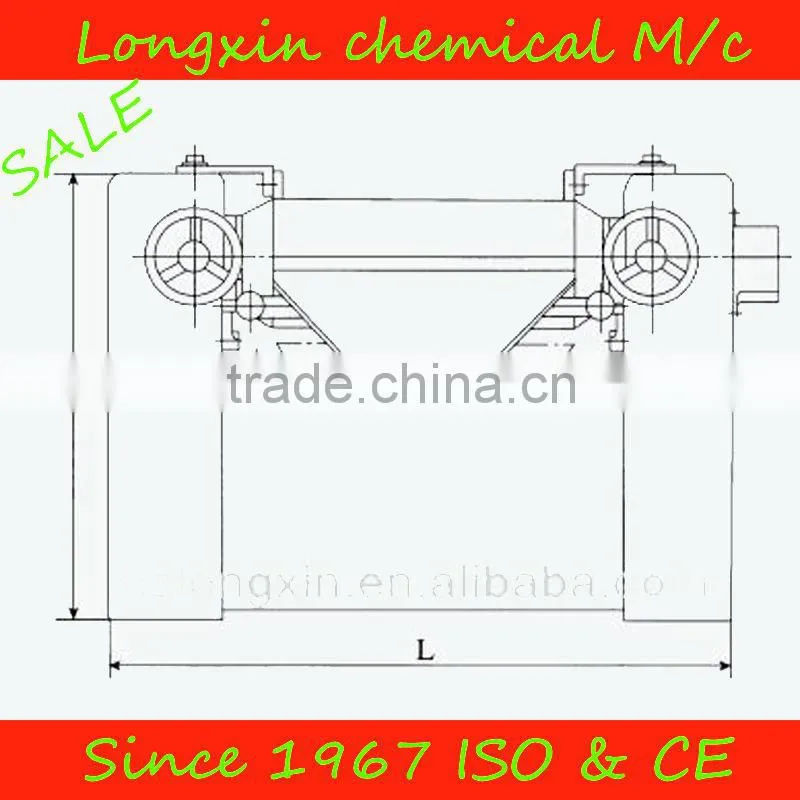

4.Technical Parameters:
Type |
Roller Diameter (mm) |
Roller Working Length (mm) |
Roller Speed (RPM) |
Motor Power (KW) |
Gross Weight (kg) |
Dimensions (mm) |
LXS-65 |
Φ65 |
130 |
145/70/26 |
0.75 |
60 |
500×500×520 |
LXS-150 |
Φ150 |
300 |
181/71/34 |
2.2 |
500 |
1000×1000×1250 |
LXS-260 |
Φ260 |
675 |
183/64/25 |
7.5 |
2100 |
1800×1450×1400 |
LXS-405 |
Φ405 |
810 |
130/42/14 |
15/18.5 |
52000 |
2050×2000×1800 |
LXS-405L |
Φ405 |
1000 |
130/42/14 |
18.5/22 |
5800 |
2250×2000×1800 |

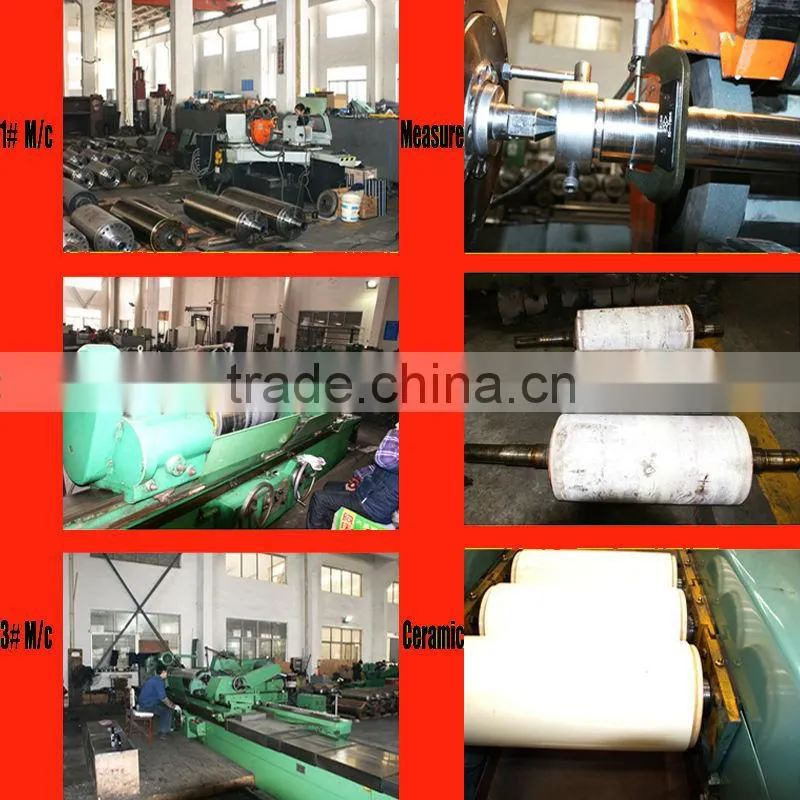

5.Roller Machinging by Longxin ourselves:
There are many sets machining machine:Normal Turning lathe, DS Turning lathe, Grinding machine, planing machine,arm milling machine, etc.All the east China Three Roller mill machine are all machinged by the Longxin company.
6.Longxin & Huabao Honor(Parts):
Warmly welcome friends come here visiting! Wish you become one of the giants in this photo!

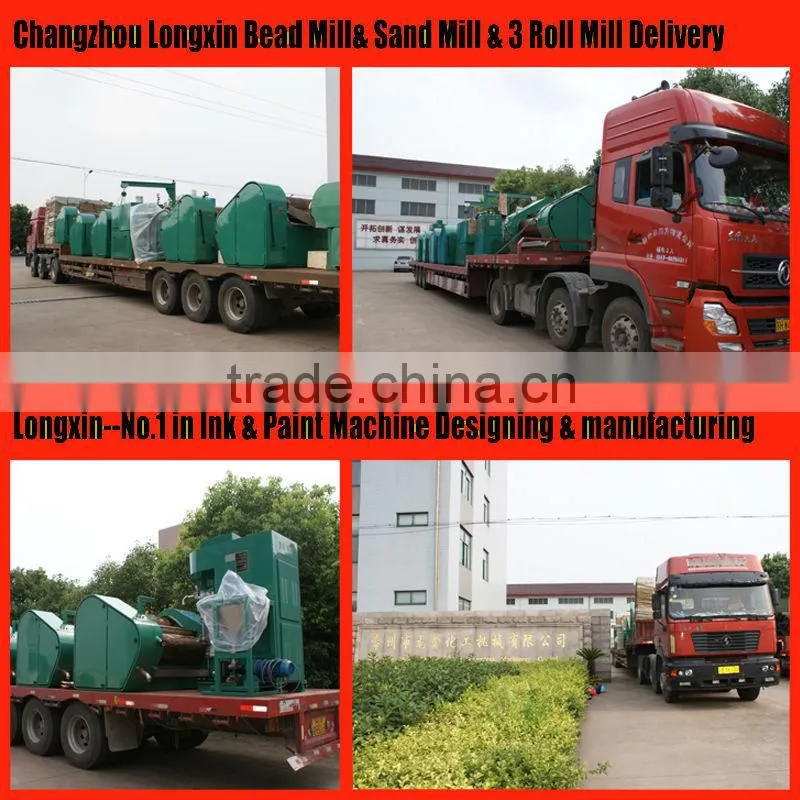

7.Viscous Material Three roller mill for Uploading:
Three roller calender machine uploading, to Japan company.
8.Not only one Award:
The Longxin company is the Permanent Chairman of the Chinese Daily Chemical Industry Association. Besides, the Longxin is AAA contract sign up company. The machine awards ISO9001:2000&CE verification.

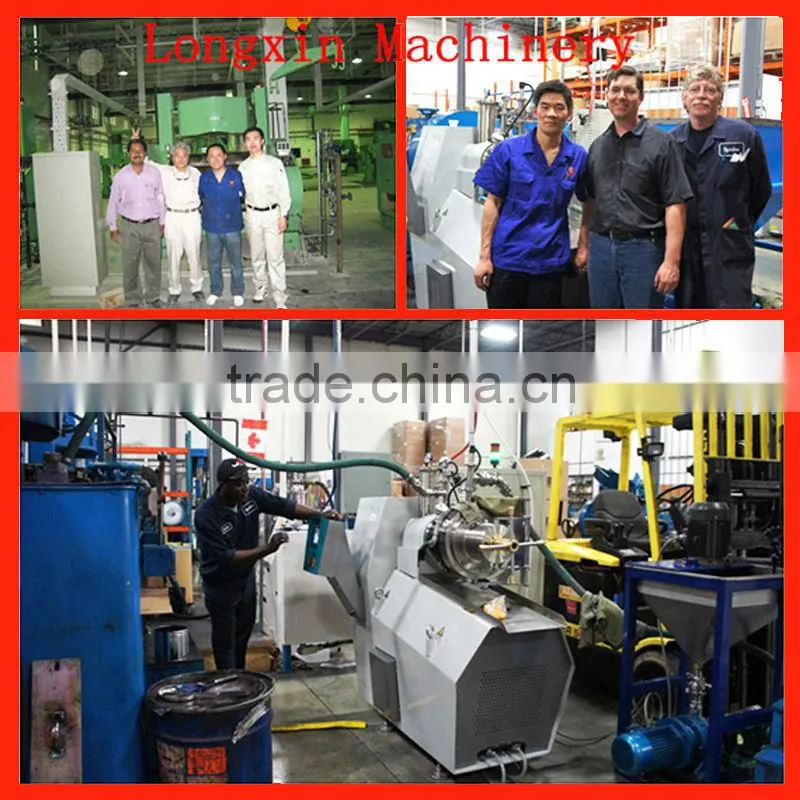

9.Overseas commissioning & installation
The Longxin engineer from Taiwan & mailand could go abroad commissioning & installation.
10.Feel free contact your personal account manager:
