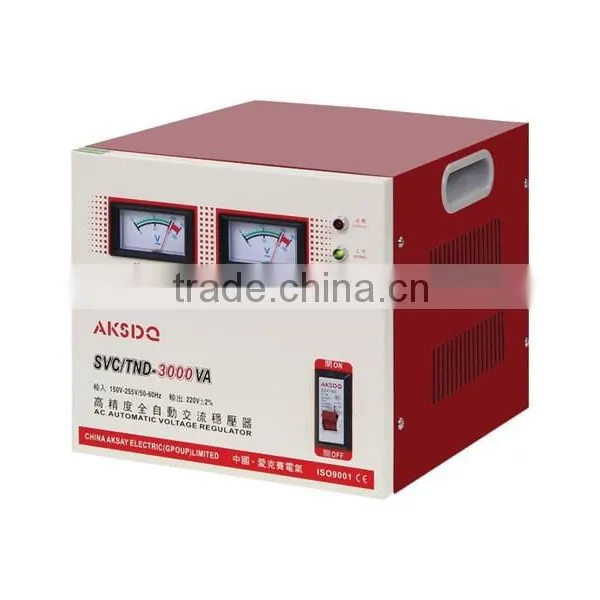

AVR 3000VA Automatic voltage SVC stabilizer

Specifications

1.reasonable price,high quality
2.reliable performance
3.long-term operation
plete specification
5.high efficiency

Specifications

1)0.5K,1k,2k,3k,5k,8k,10k,15k,20kva
2) servo motor voltage stabilizer
3) one year warrant



Performance

Input voltage	150V-260V
Output voltage	220 ± 3% with 110V ± 3%
Phase	Single-phase
Frequency	50Hz/60Hz
Response time	Within 1 see. against 10% input voltage deviation
Environment temperature	-5 degree—+40degree
Opposite degree of humidity	Less than < 95%
Waveform distortion	No-lack distortion
Insulation resistance	Comply with majority international standard



  General



    SVC single-phase high accuraty full automatic AC voltage stabilizers Series is key series of our products, It is made of contact type selfcouping voltage regulator, servo motor, automatic controlcircuit and so on. When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carton brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.



    Having the advantages such as wide varieties, complete specifications, beautiful appearance,etc. and the characte ristics such as undistorted waveform,high efficiency, reliable performance, long-term operation,etc., and also being provided with the protective functions such as timedelay, over-voltage, etc., the series of stabilizers, of the gen eral type, are the ideal voltage stabilizer soruces which can be widely can be applied o any occasions requiring power to assure the normal operation of your power driven equipment.



Application



For office equipment,test equipment,medical equipment,industrial equipment,household appliance,lighting system,commucation system,etc.
