Top sale ink laboratory three roller mill

Specifications

1. Laboratory three roll mill.
2.Roll is made of ZrO2.
3.Water cooling system.
4.Easy to clean.

three roller mill/three roll mill/triple roller mill/laboratory three roller mill/paint making three roller mill/offset ink coating rolling mill/high viscosity grinding machine

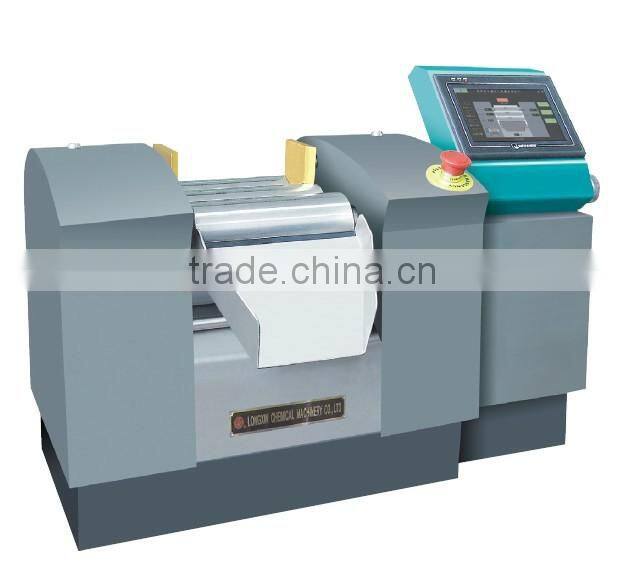

Laboratory three roller mill

Three roll mill is mainly used for various liquid paste materials such as paint,printing ink,pigment,food etc.(not suitable for materials with acid-base ingredients or paint which would lead to roller corrosion)  in preliminary experiment.It provides the correct data for mass production.
Application

DS series computerized numerical control three roller mill is designed for the manufacturer of the fine particles with its precise control. Its range of applications covers ink, paint, cosmetics, and the nanoparticles dispersed in the electronic pastes. DS series three roller mill provides a highly effective and highly accurate means of dispersion and particles-reduction. For product development, small-scale production, the establishment of small production lines, DS can provide flexible and precise control to meet your requirements. And process parameters are the basic datum for larger-producing.

Model parameter

Roller diameter:80mm

Length of roller:200mm

Ratio of speed:1:3:9

Roller material:ZrO2

Motor power:1.1kw

Overall dimension L*W*H:720*410*470

Weight:115kg

Features:



1.Pressure mode displays the pressure value set by user, the actual distance and the actual pressure. (Unit: Newton/ mm)
2.Gap mode displays the gap distance value set by user and the actual stress values. (Unit: micron and Newton/ mm)
3.Roller gap control system is real-time monitoring and adjusting to make sure the pre-set.
4.Independently set distance of gap, and this can be operated in different modes.
5.Operator can change the pressure mode and gap mode in operating.
6.Operating parameters can be stored up to 3,000 groups at any time for different materials stored in PLC data base.
7.Roller speed and distance can be set as a parameter (any mode).
8.Touch screen controlling is convenient to understand and easy to operate. The control system in two operating modes can provide real-time control of display (zoom in nature).



After sales service

 We will give you one year warranty except the vulnerable parts and human factors,free parts will be sent to you with technical guidance.

Payment terms

30% deposit by T/T before production, 70% balance should be paid by T/T before shipment.

shipment

we usually take FOB,but we also accept CIF,CNF.

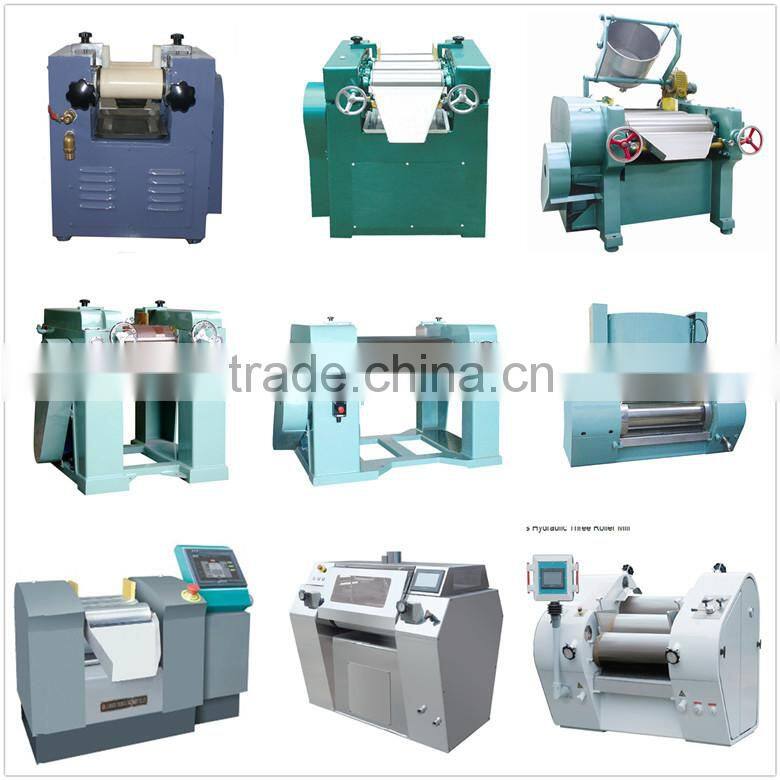

Products show

Our customers

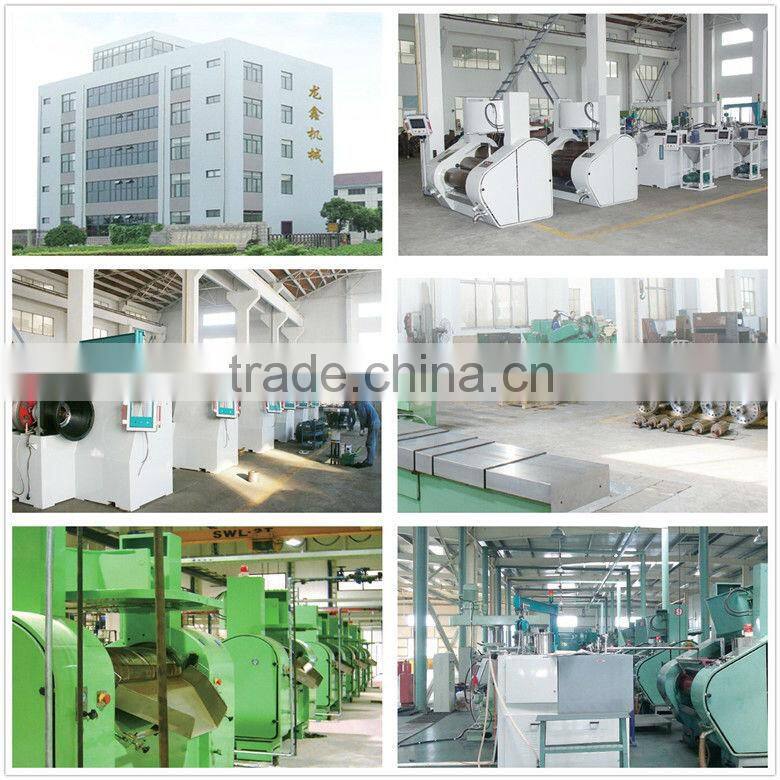

About us



Established in1967,Changzhou Longxin Machinery Co.,Ltd. is a leading manufacturer and trader specialized in research and production of Three Roller mill, Bead mill,Sand mill, Sigma mixers, Planetary mixer, Reactors, etc. We are located in Changzhou city,with an easy access which only takes about 2 hours’ drive from Shanghai.
Our products are widely used in printing ink, paint, pigment, food and cosmetics etc. Longxin, the brand of items, enjoys a high reputation both at home and abroad,not only because of its high quality but also its well-done after-sale service.We have established a long-term relationship with DIC,TOYO,ENCRES DUBUIT and SINOPEC etc.Besides,we also have a ready market in North America,Western Europe,Southeast Asia,Africa and so on.
High quality,low prices and customer satisfaction are our objectives.If you have any questions,please do not hesitate to contact us.
