SMT Automatic Pcb Soldering Machine Manufacturer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SAM

Model Number:

ZSW-350PC-B

Contact Supplier Request Quote Chat Now

Shenzhen SAM Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SAM

Model Number ZSW-350PC-B

Specifications

1 Streamline designed exterior
2 applies to the current advanced lead free soldering technique
3 wave solder machine

Features:

1. Streamline designed exterior and all tempered glass overseeing window.

2.It applies to the current advanced lead –free soldering technique, suitable for SMT and through-hole lead-free soldering. 3.Windows XP operation interface and PCL control.

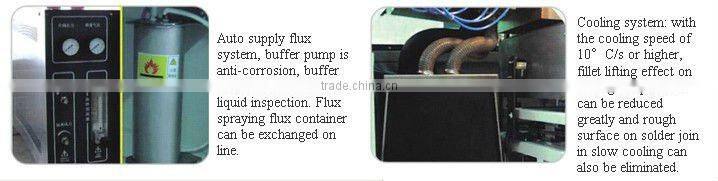

4.Flux spray nozzle self-cleaning system, auto-adjusting the spray speed & square according to the conveyor speed and PCB dimension.

5.Standard cool air knife after flux spraying and flux reclaim system to reduce the pollution of PCB and environments.

6.Special made conveyor rails to ensure no deformation; quick replacement titanium alloy fingers designed, convenient for replacement and maintenance.

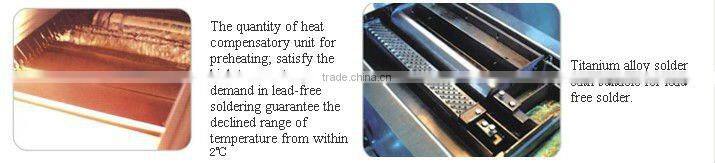

7. Equipped with thermal compensation to enable temp. Dropped ≤2°C before entering soldering zone, reduced the thermal impact on components .

8.Solder dross auto-gathering function and patented anti-oxidization sleeve design to reduce the dross significantly.

9. Equipped with over-temp. alarm & protection, emergency quick-stop system and overioad protection for all motors.

Photos

Specifications:

Model Specification	ZSW-350PC-B		ZSW-350
Power supply	3P5W.380V/220 50/60HZ 63A		3P5W.380V/220 50/60HZ 63A
Startup power	22.5KW		22.5KW
Operation power consumption	12 KW		12KW
Control system	Computer + PLC		Botton +PLC
Spray system
Transmission method	Step motor		Air cylinder
Spray pressure	0.25MPa -0.4MPa		10-100ml/min
Flux flow arrange	10-100ml/min		10-100ml/min
Auto fill flux	S		S
exhaust	Up&down exhaust		Up exhsust
Exhaust ducting diameter	200		200
Exhaust capacity	25M3/min		25M3/min
Preheating system
Preheating mode	Hot air		IR tube
Control mode	PID+SSR		PID+SSR
Preheating zone number	3		3
Preheating lenght(mm)	1800		1800
Preheating temperature	Room temperature 250°C		Room temperature 250°C
Warm-up time (min)	Approx *15 min(setting:150°C)		Approx *15 min(setting:150°C)
Blower motor	S		N/A
Conveyor system
PCB width (L*W)mm	Min 8060 ,Max 400350		Min 8060 ,Max 400350
PCB conveyor direction	L-R option:R-L		L-R option:R-L
PCB conveyor speed	0-2000		0-2000
Conveyor height	750±20		750±20
Available component height	Top:120mm bottom :15mm		Top:120mm bottom :15mm
Conveyor speed control mode	Closed loop		Closed loop
Finger	Quiek ehange finger (standard) Titanium duck jaw finger(option) Spring duck jaw finger (option) Metallic duck jaw finger(option) Resinous duck jaw finger (option)
Conveyor width control	Manual	Manual
Conveyor angle	4°- 7°	4°- 7 °
Soldering system
Solder pot style	Motor drive	Motor drive
Solder pot material	Full titanium (option:SUS 316L)	Full titanium (option:SUS 316L)
Wave height adjust	Inverter	Inverter
Heater power	380 VAC 12KW	380 VAC 12KW
Solder pot temperature	300°C	300°C
Solder pot capacity	Tin lead 720kg lead free 550kg	Tin lead 720kg lead free 550kg
Wave driver power	1/4 HP*23P 220VAC	1/4 HP*23P 220VAC
Solder pot warm-up time	Approx.180min setting 250°C	Approx.180min setting 250°C
Temperature control mode	PID+SSR	PID+SSR
Cooling system
Cooling method	Forced air/air cooler is ption	Forced air/air cooler is ption
Other
Fingrer cleaning system	Brush	Brush
Return trip lifing	S	S
option
Center support	O	O
J-sonic ultrasonic spray	O	O
Top heating	O	O
Ups protection	O	O
Nitrogen device	O	O
Feeder knife	O	O
Weight	Approx.2000kg	Approx.2000kg
Dimension (LWH)mm	453715301760	445015301710
