Energy Saving Lead-free Hot Air Reflow Oven

Energy Saving Lead-free Hot Air Reflow Oven thumbnail-1
Energy Saving Lead-free Hot Air Reflow Oven photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAM
Model Number:
ZSW-US-800
Contact Supplier Request Quote Chat Now
Shenzhen SAM Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAM
Model Number ZSW-US-800

Specifications

safe and easy to clean the chamber.
keep no deformation in long-terms
High efficient
reflow soldering



Mechanism Configuration

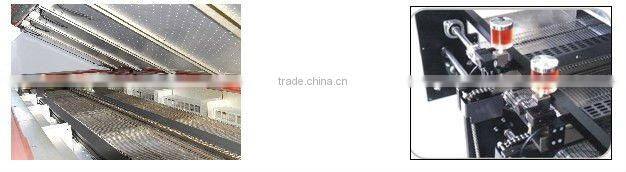

Up-cover can be wholly opened automatically, sate and easy to clean the chamber.
Tailor-made rails to keep no deformation in long-terms.
High efficient convective air management, enhance the flow of hot air in circulation. Quickly warming up with high efficient heat compensation.
 Mesh & rail keep the same pace; equipped with high quality timing motor, closed-loop controlled by computer, running stably.
Adopted timing motor to adjust the width of rails, which is controlled by operation panel.
Energy saving Lead-free hot air reflow oven
  Heating Cooling System
 Lengthening the each heating zone and minimize the space between each zone so that significantly improve the uniformity and efficiency of heating.
 Temperature controlling independently & air velocity adjustable to meet high-precision soldering requirements.
The heating efficiency was improved by 10% through adopting new air management system to get smaller T; The forced exhaust system with filters which is easy to be cleaned.
Forced convection cooling system to easily reach the requirements of strict lead free soldering processes.

Options Nitrogen System

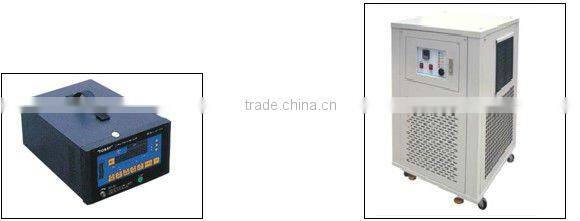

 Low nitrogen consumption design. When nitrogen consumption is 20-30m3/h, the oxygen concentration can be controlled within 450-1000ppm.(Includes water cooling system,Flux reclaim system,nitrogen flow meter and Oxygen analyzer) Outside Water Chiller Outside water chiller and easy for maintenance.
Energy saving Lead-free hot air reflow oven

Specifications:

Model ZSW-700/ZSW-700-N ZSW-800/ZSW-800-N ZSW-1000/ZSW-1000-N
Heating part parameter
Heating zone 7/7 8/8 10/10
Heating length 2639mm 3006 mm 3740 mm
Cooling zone 2(2)/  3(2)
Exhaust capacity 10m3/min×2
Conveyor parameter
Max.width of PCB 400mm
Rail adjust range 50~400mm
Conveyor direction L→R(R→L,option)
Conveyor rail fixed front or rear
Height of conveyor 900±20mm
PCBTransport system chain + mesh (Center support system)
Conveyor speed 0~1800mm/min
Controlling parameter
power supply 3 380V50/60HZ(3 220V50/60HZ)
Total Power 57 KW 67 KW 83 KW
Power of start up 34 KW 40 KW 56 KW
Power of consumption operation Approx.18KW Approx.22KW Approx.28KW
Warm-up time Approx. 20min
Range of temperature control °C/Room temperature
Temperature control PID,SSR/PID+SSR
Precision of temperature control ±1°C
PCBPrecision of temperature ±2°C

Trouble alarm
Board drop alarm

(L×W×H) Dimension(mm) (AIR)(N2) 4465×1310×1470 4832×1310×1470 5566×1310×1470
4947×1310×1470 5315×1310×1470 6050×1310×1470
Weight Approx.1700kg Approx.2000kg Approx.2400kg
Color
