Help CenterEmbossed Carrier Tape SMD Component Taping Machine
Related Products
-
SM-1000C Semi Auto Type SMD Tape and Reel Machine Quality ChoiceUS$ 3,000 - 4,000MOQ: 1 Set -
IC Semi Auto Type SMD Component Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-

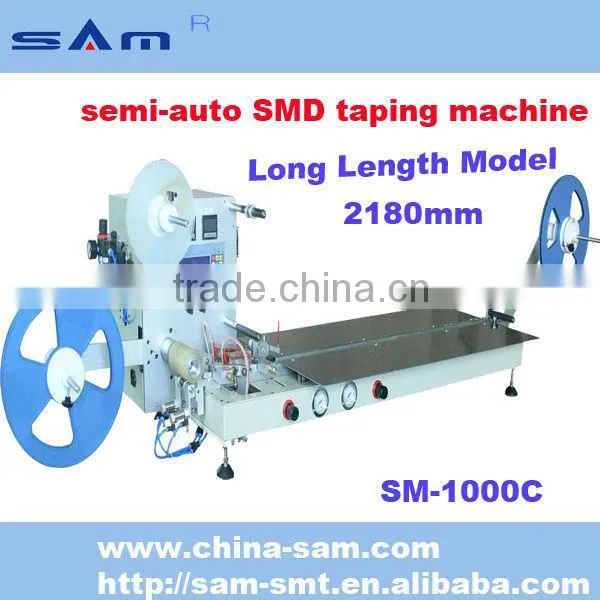

Long Length Model IC SMD Component Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
Semi-auto SMD Component Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
SM-1000A Normal Model Semi-auto SMD Component Taping MachineUS$ 3,000 - 4,000MOQ: 1 Set
Specifications
1.package 8-72 mm width carrier tape2.Semi-auto smd taping machine
3.Taping speed: 3000-7000pcs/hr,denpend on parts.
Feature:
1,Track width can work freely in the range of 8mm to 72mm,the screen is easy and convenient for operate and control.
2, Fine adjustment head installed in hot-press device, adjustment of sealing position can accurate to 0.1±mm,independent PID temperature control accurately and steadily.
3,The position of cover tape can make fine adjustment by adjust the tension of the moving cover unt by fiber-optical sensitive and equipped with leakage detection make braiding accurate.
4,Moving tape speed can be adjusted continuously and control by pedal,compatible with all ELA-481 standard plastic reels.
Specifications:
Mchine Dimension: |
2180(L)*460(W)*580(H)(MM |
Feeding: |
suitable with ELA-481 standard wheel and cover tape |
Power supply: |
AC200V50HZ |
Pressure: |
3.0kg/cm2 |
Temperature control: |
two heads and independent PID temperature control, temperature range is 20-200°C |
Taping speed: |
3000-7000PCS/hr. According to specific Component |
Calculator: |
count by fiber-optical sensitive |
Package type: |
self adhesive or hot sealing |
Weight: |
70KG |
Parts display
Package:
SAM Provide three model taping machine for your choice: SM-1000A(Normal model),SM-1000B(pocket check function ),SM-1000C(long length)
