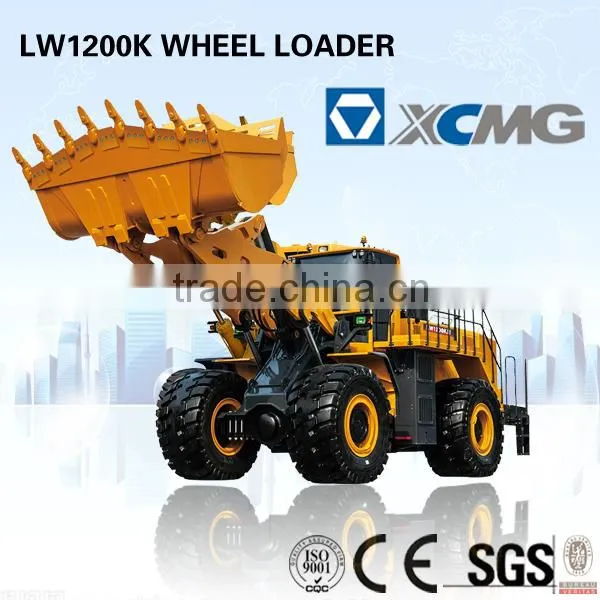

XCMG LW1200 12t wheel loader with CE
Wheel Loader with CE
12t wheel loader for sale
XCMG 12t wheel loader
cheap 12t wheel loader
small 12t wheel loader
Overall Data |
|
Steering System |
||||||||||
Bucket Capacity (m3) |
6.5 |
Type |
Hydraulic Load Sensor System |
|||||||||
Rated Payload(kg) |
12000 |
Cylinders-Bore×Stroke(mm) |
2-80×315 |
|||||||||
Operating Weight(kg) |
48000±300 |
Steering Pump |
Gear Pump |
|||||||||
Traction Force(kN) |
350±3 |
System Pressure(MPa) |
14 |
|||||||||
Breakout Force(kN) |
354±3 |
Flow Rate(L/min/rpm ) |
88/2200 |
|||||||||
Travel speeds (km/h): |
Steering Angle |
±35° |
||||||||||
|
I |
II |
III |
Hydraulic System |
||||||||
Forward |
6.5 |
12 |
32 |
Lift Cylinders-Bore×Stroke(mm) |
2-125×784 |
|||||||
Reverse |
6.8 |
12.5 |
33.5 |
Tilt Cylinder-Bore×Stroke(mm) |
1-140×553 |
|||||||
Engine |
CUMMINS |
Model of Working Pump |
Gear Pump |
|||||||||
Rated Power(kW/rpm) |
391/2200 |
Flow Rate(L/min/rpm ) |
176/2200 |
|||||||||
Peak Torque(Nm/rpm) |
500/1400-1600 |
System Pressure(MPa) |
16 |
|||||||||
Starting Voltage(V) |
24 |
|
|
|||||||||
Drive Train |
Hydraulic Cycle Time, Rated Load In Bucket(In Second): |
|||||||||||
Torque Converter |
Single-stage, Single-turbine, 3-elements |
Raise(Loaded) |
Dump |
Lower(Empty |
Total |
|||||||
Torque Ratio |
3.5 |
5.5 |
1.3 |
3.7 |
10.5 |
|||||||
Transmission |
Countershaft power shift Transmission |
Electrical System |
||||||||||
Gear |
3F/3R |
System Voltage(V) |
24 |
|||||||||
Pressure of Transmission(MPa) |
1.2-1.5 |
Battery (2 in series)(Ah) |
105 |
|||||||||
Main Reducer |
Spiral bevel, 1-stage Reduction |
Lamp Voltage(V) |
24 |
|||||||||
Final Reducer |
Planetary Reduction |
Service Refill Capacity |
||||||||||
Tire |
35/65R33 |
Fuel Tank(L) |
200 |
|||||||||
Brake System |
Hydraulic Tank(L) |
200 |
||||||||||
Service Brake |
Single Circuit Caliper, Air Brake |
Crankshaft(L) |
17 |
|||||||||
Setting Pressure (MPa) |
0.78 |
Transmission(L) |
36 |
|||||||||
Parking & Emergency Brake |
Flexible Shaft Controlled Caliper |
Front Axle(L) /Rear Axle(L) |
13/13 |
|||||||||
Air Conditioning System | ||||||||||||
Heating Capacity(W) |
5800(±10%) |
|||||||||||
Cooling Capacity(W) |
4500(±10%) |
|||||||||||
Note: The specifications are subject to change without notice.
Please contact me for more details.
