Product Details
Place of Origin: | Jiangsu, China | Brand Name: | XCMG | Model Number: | SQ12S3Q |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

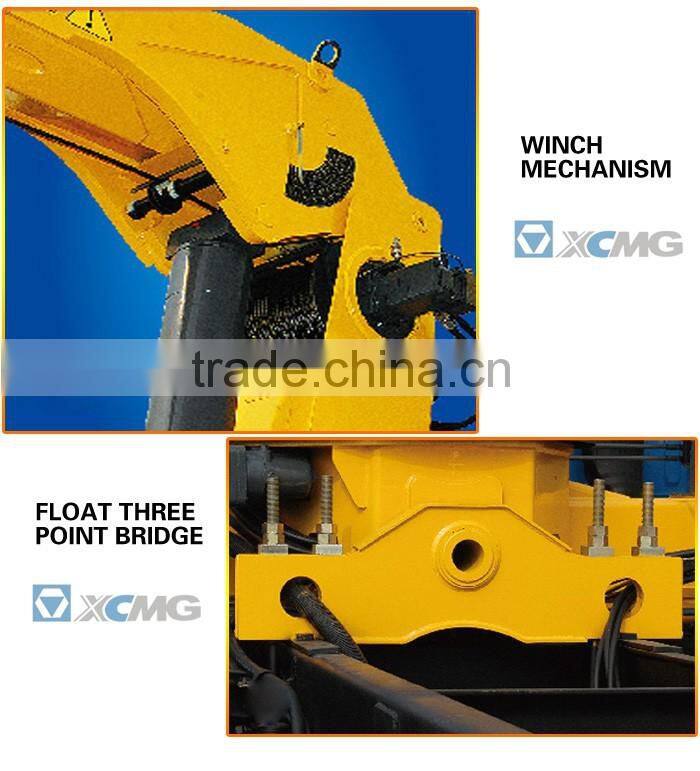

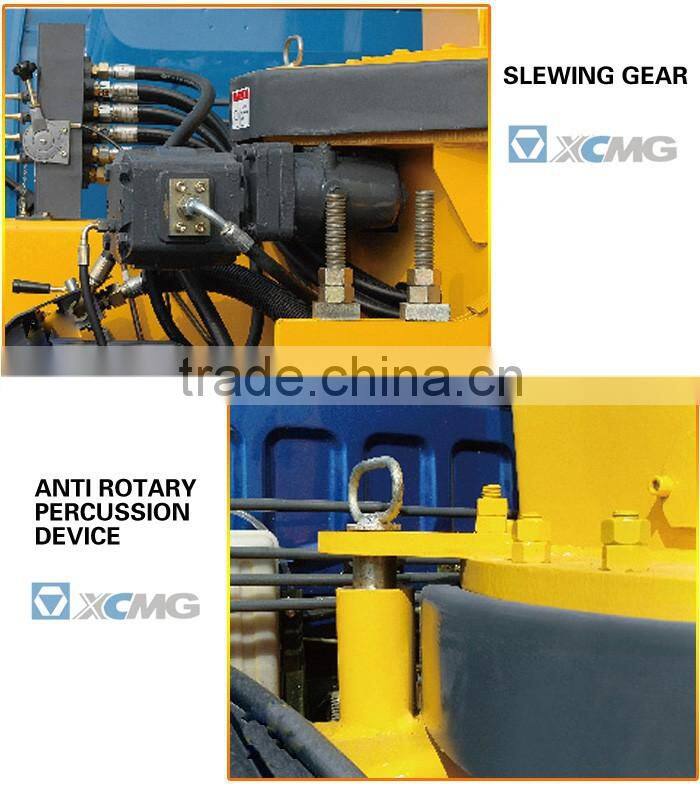

Crane SQ12S3Q with Telescopic Boom

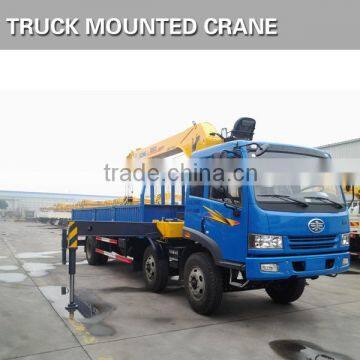

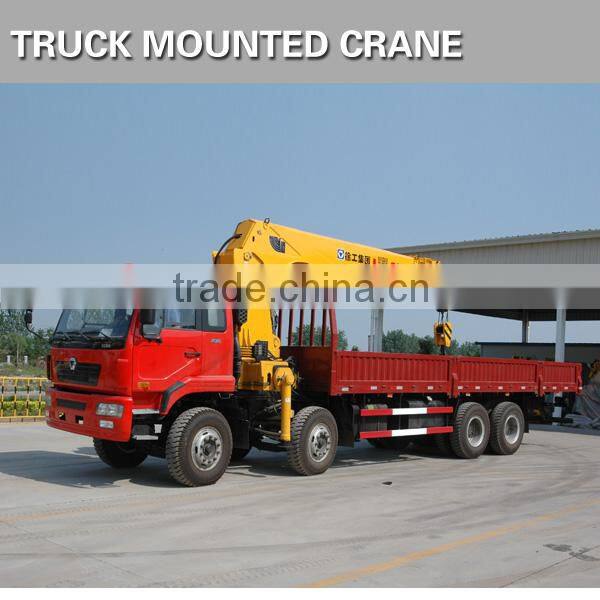

12 ton telescopic truck mounted crane
truck with 12t crane
ITEM | UNITS | Crane model |
SQ12SK3Q | ||
Max lifting capacity | KG | 12000 |
Max lifting capacity | T.M | 30 |
Recommend power | KW | 63 |
Max oil flow | L/MIN | 100 |
Max pressure | MPA | 26 |
Oil Tank Capacity | L | 160 |
Crane weight | KG | 4316 |
Installation space | MM | 1300 |
Rotation angle | DEGREE | 360 |
Extension length | MM | 12500 |
Lifting height | MM | 14500 |
Max elevation | DEGREE | 75 |
SQ12SK3Q Lifting capability diagram | |||||
Working radius (m) | 2.5 | 4.8 | 7 | 9 | 12.5 |
Lifting capacity (kg) | 12000 | 6000 | 3500 | 2700 | 1800 |
