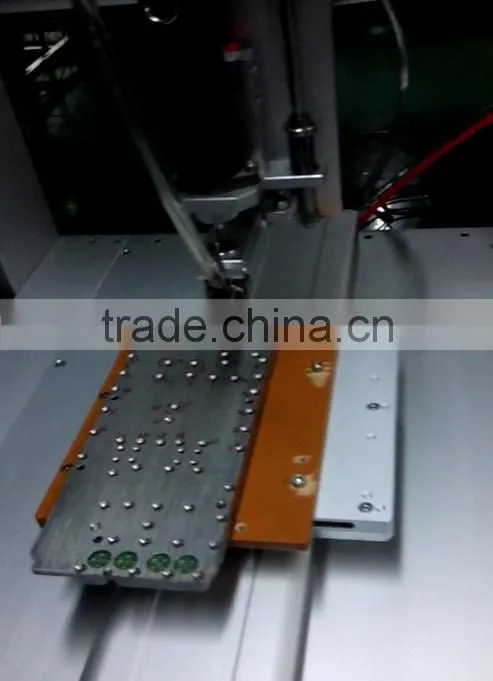

Help CenterAutomatic Desktop Electric Screwdriver Machine
Related Products
Applicable products
Keyboard, switch, socket, router, charger, calculator, remote control, plastic products, plastic
toys and other screws intensive product
Introduction:

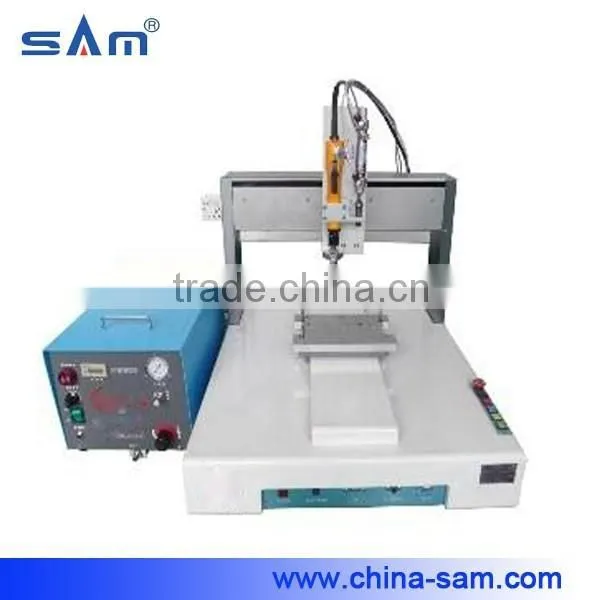

SM-6002 desktop type automatic locking screw machine biggest advantage is flexible and high efficiency. According to the set coordinates, machine automatically lock products.The Z axis can be installed at most four lock electric screwdriver at the same time , greatly improve production efficiency.For replacement products, just change coordinates point can be lock.The operation is very simple.Distribution system screw through tracheal pressure send screw to the screwdriver tip .The manipulator automatically lock according to the set coordinates .
Features :
1, Strong commonality.Small volume, can cooperate with production line operation, convenient replacement products. According to coordinates setting , and also can be read CAD document complete setting .
2, the Z axis can be installed at most four lock electric screwdriver at the same time pay, greatly improve production efficiency.For replacement products, just change coordinates point can be lock .
3, Y axis can according to need to make double location ( double Y axis), the operator can alternate products up and down.
4 L p, suitable screw specification L≥1.2 D (D = screw head diameter, L = length of screw thread) conforms to the condition screw are available this desktop blowing type automatic locking screw machine.
5, this Automatic screw feeding machine available for similar size screw length is + / - 5 mm .
Specification:
|
Machine |
Net Weight |
About 50kg |
Dimension size |
595*560*600mm |
|
Power supply |
AC 100V-230V 50-60HZ |
|
Power |
300W |
|
Temperature |
-20-40℃ |
|
Cabinet material |
Steel and aluminium alloy |
|
Control |
Machine program control |
Special control system |
Process input |
Coordinate input or computer input |
|
I/O signal |
8 input / 8 output |
|
Communication |
Serial port RS232C , Computer communication |
|
Speed and precision |
Posistion precision |
X Y : +/-0.08mm Z:+/-0.01mm |
Running speed |
500mm/sec (X-Y ) |
|
Screwdriver |
KILEW screwdriver |
Can change according to customer |
Troque |
Adjustable |
|
Application range |
X Y axis lock range |
450*400(mm), available customized |
Z axis lock range |
Available customized |
|
Testing |
Screw slippage test |
Yes |
Screw missing test |
Yes |
|
NG screw lock |
Alarming light and buzzer on |
Working vidoe Link :
