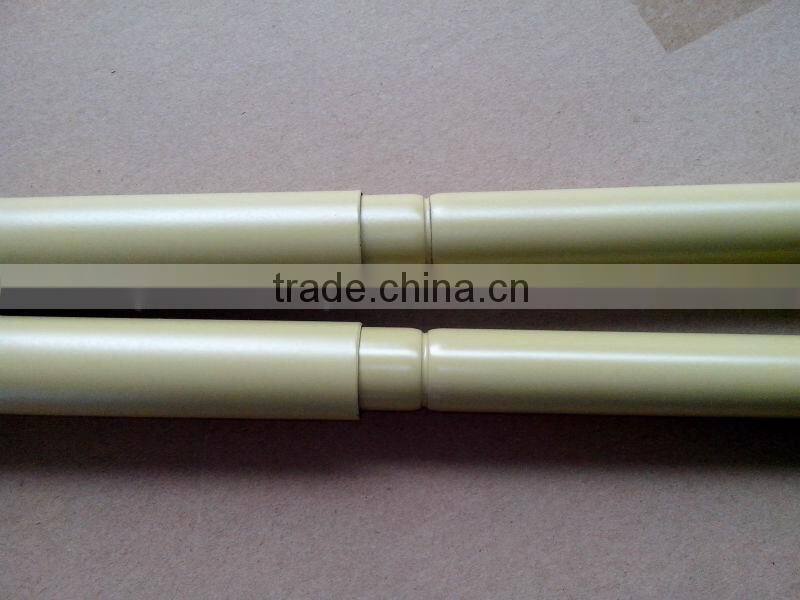

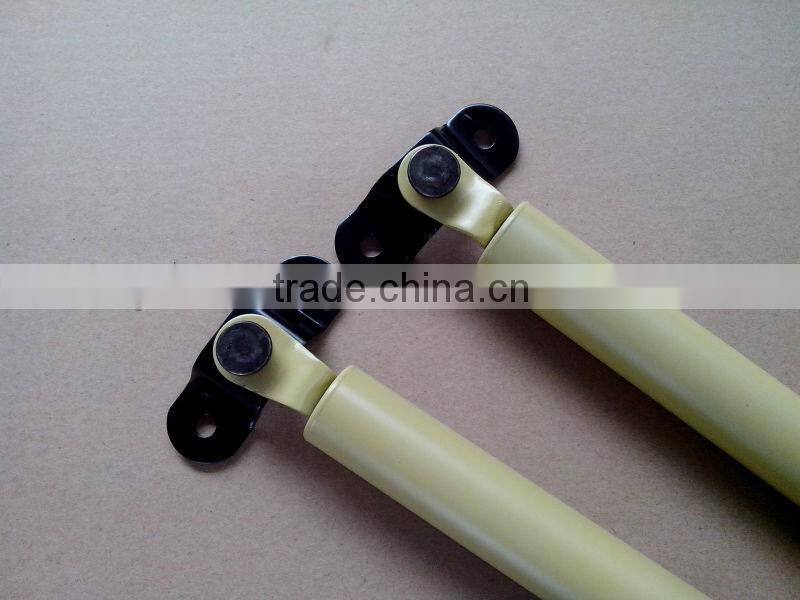

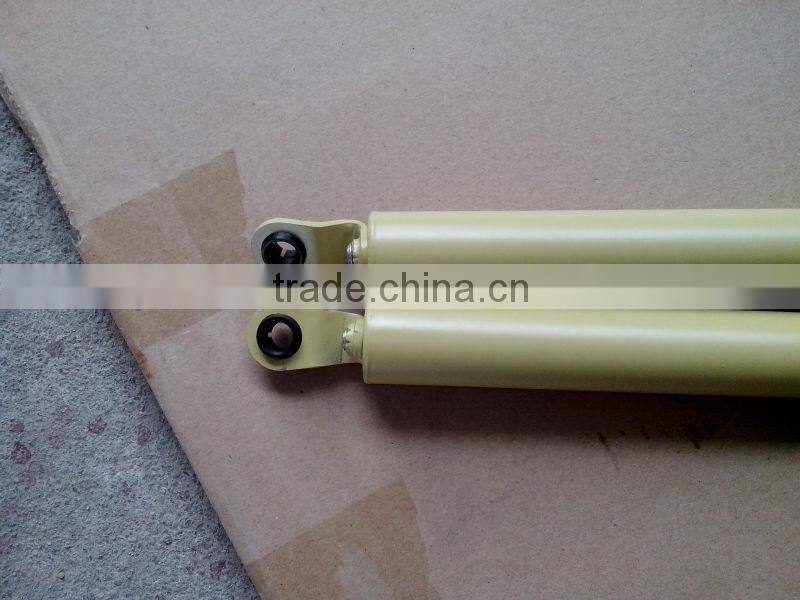

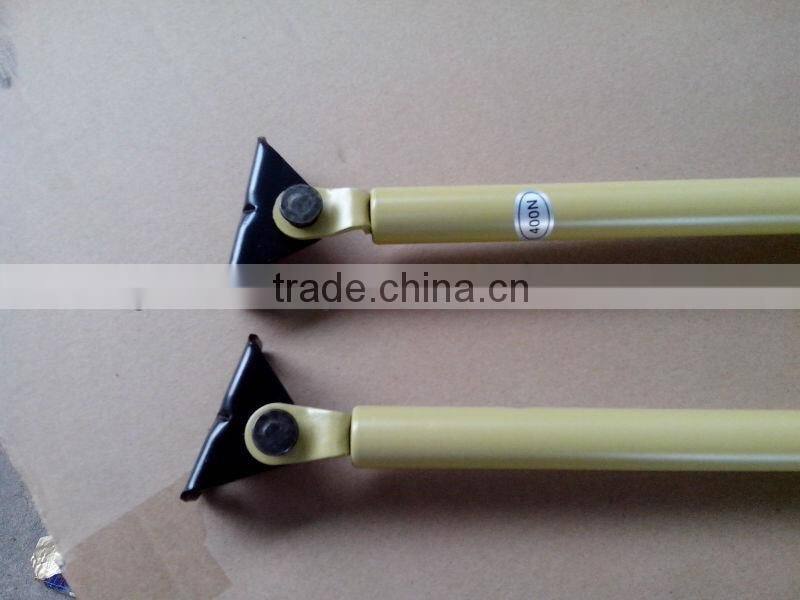

Help CenterGas Springs With Safety Lock
Related Products
-
Tension Nitrogen Gas LiftUS$ 2.6 - 4.8MOQ: 100 Pieces -
Pull Gas Spring Traction Gas Spring LQ 10/28-350-485(Q-Q)800US$ 8.81 - 10.57MOQ: 10 Pieces
-
Gas Spring With Rod Coverd by a Cylinder YQ10/22-280-575(A-A)550US$ 3.03 - 3.45MOQ: 50 Pieces
-
Nitrogen Gas Spring / Gas Struts YQ8/18-30-208(Q-Q)650US$ 1.63 - 1.96MOQ: 50 Pieces
-
Gas Spring / Gas Lift for Machinery YQ10/22-190-570(L-L)350US$ 3.03 - 3.62MOQ: 50 Pieces
Specifications
1.Gas Compression Springs with Safety Shroud2.Wide Applications
3.Different colors available upon needs
Company Basic Introduction:
Our production range covers nearly all dimensions and forces which are required for your specific application. TieYing Gas Springs are used anywhere in the industrial field.
Besides the automobile and furniture industry, there are innumberable applications in the machinery and equipment design. We can also offer special solutions to meet the requirements in the medical and aircraft industry. The continuous production of special sizes and our extensive stock enable us to meet nearly all requirements within a remarkable short time.
Normal Specifications For Gas Compression Springs
Rod |
Cylinder |
Stroke |
Extended Length (mm) |
Extension Force(F1) |
4mm/0.157" |
12mm/0.472" |
10-150mm - 0.393-5.9" |
2x stroke +30 |
7-200 - 1.54-44lbs |
6mm/0.236" |
15mm/0.590" |
10-150mm - 0.393-5.9" |
2x stroke +30 |
10-400 - 2.25-90lbs |
8mm/0.315" |
18mm/0.708" |
10-300mm - 0.393-11.81" |
2x stroke +48 |
30-700 - 6.75-154lbs |
8mm/0.315" |
22mm/0.866" |
10-300mm - 0.393-11.81" |
2x stroke +48 |
30-700 - 6.75-154lbs |
10mm/0.394" |
22mm/0.866" |
20-800mm - 0.787-31.49" |
2x stroke +47 |
50-1300 - 11.25-286lbs |
12mm/0.472" |
28mm/1.102" |
20-1000mm - 0.787-39.37" |
2x stroke +60 |
100-1700 - 22-375lbs |
14mm/0.551" |
28mm/1.102" |
20-1000mm - 0.787-39.37" |
2x stroke +60 |
150-2600 - 33-573lbs |
Tube Finishing
Black Painted (standard)
Different colors available upon request
Galvanized, Chrome
Stainless Steel (SAE304)
Piston Rod
Hard Chrome plated
Stainless Steel (SAE304)
End Fittings
If not otherwise stated material of the end fittings is metal.
Damping
The spring comfort of a gas spring can be regulated according to your individual requirement.
Damping in extension, in compression, in both directions or without any damping.
Extension Speed
The extension speed is adjustable, within the physical limits, according to your individual request.
Working Temperature
Standard -30 °C to + 80 °C
On request up to -45 °C
On request up to + 200 °C
The Working principle of gas springs
Gas springs are a proven and reliable method of counterbalancing covers, flaps and objects. A gas spring is an energy-storage device filled with nitrogen. A gas spring stores energy by compressing the nitrogen gas within the gas spring. While the gas spring is compressed, the gas chamber volume is reduced due to the intrusion of the shaft into the gas spring tube; thereby causing the gas pressure to rise-storing more energy. This stored energy produces a force in the extension direction making the gas spring extend. More versatile than mechanical springs, TIEYING Gas Springs offer the advantages of speed-controlled dampening, cushioned end motion, simple mounting, compact size, at force curve, and a wide range of available forces.
Any Interests, pls feel freely to contact :
Ally Zhang
Skype: ally--ty
Mob: +86 139 2516 4780
