Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120

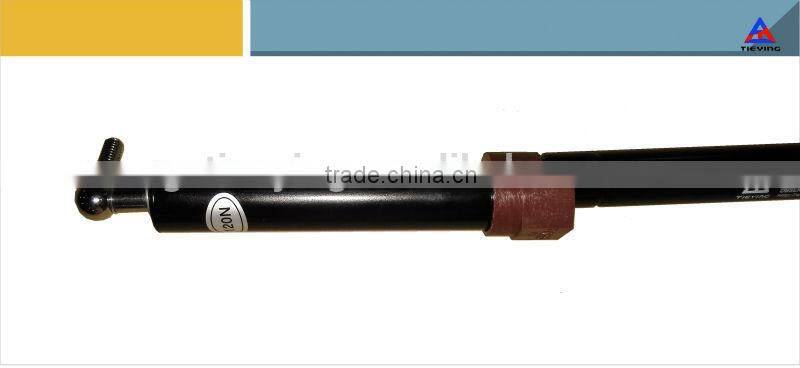

Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-1

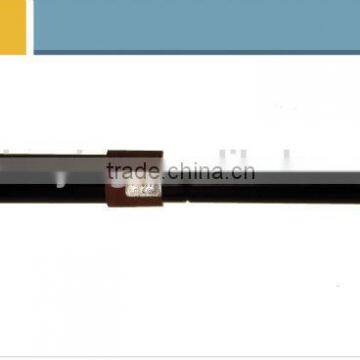

Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-2
Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-3
Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-4
Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-5
Safety Locking Self Locking Gas Spring YQ10/22-145-475(a-a)120 photo-6
US$ 3.98 - 4.35 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TY
Model Number:
TY10200
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name TY
Model Number TY10200
Style Cylinder
Load Type Compression
Material Steel
Usage Industrial



Safety locking self locking gas spring YQ10/22-145-475(a-a)120



A safety locking spring utilizes a mechanical locking device to lock the gas spring in a

fully extended position.



These springs are fitted in applications where failure means risk of health or life.



When the gas spring is fully extended the safety locking shroud springs into place and blocks

the moving way of the piston rod, thus preventing the gas spring from compressing.



To compress the gas spring again, the operator has to press the marked “PRESS” button.



The shroud moves over the pressure tube when the gas spring closes.







Features



1. Gas: Nitrogen(99.999%).



2. Material: Finishing rolling seamless steel tube for cylinder, steel for piston rod.



3. Surface: Spray painting for cylinder, chrome plating for piston rod.



4. Color : Black,or as your requirement.



5. Quality: 100,000 cycles; ISO/TS16949; ISO9001:2008.



6. Operating Temperature Range-15~+80℃(5~176℉)as standard; -50~+80(-58~+176) or -15~200(5~392) are available.





Specifications

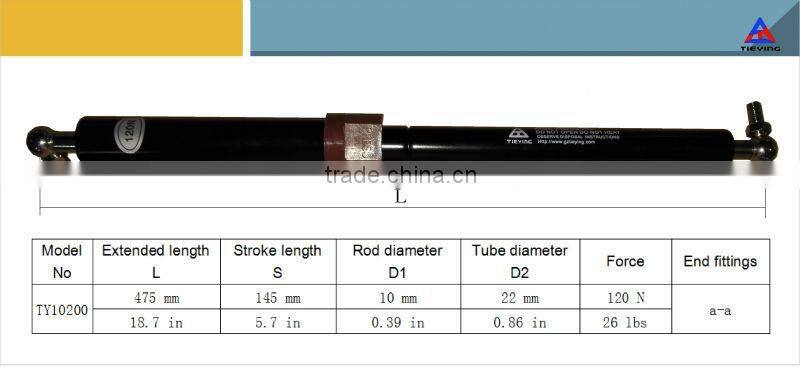

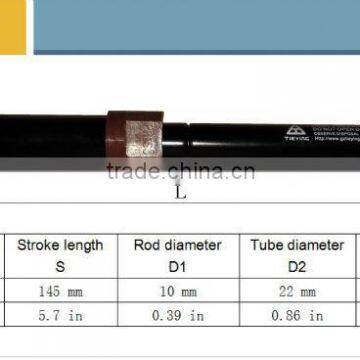

Safety locking self locking gas spring YQ10/22-145-475(a-a)120

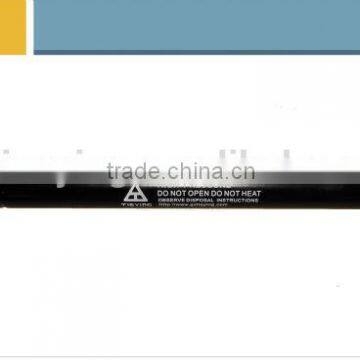

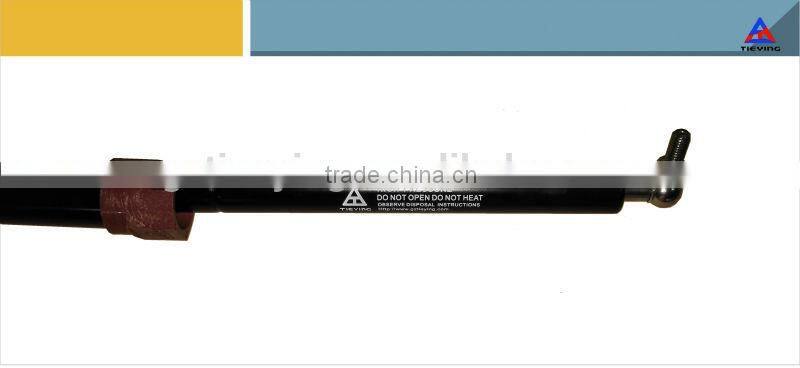

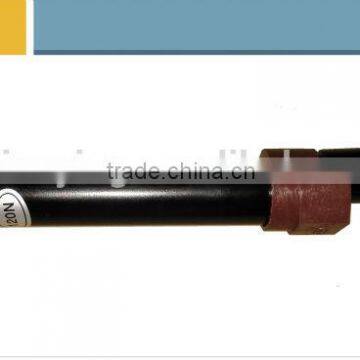

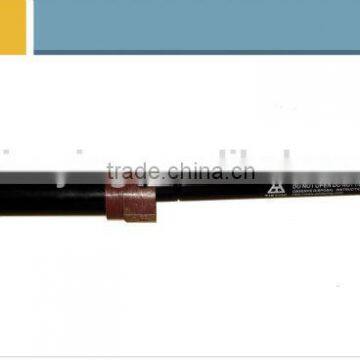

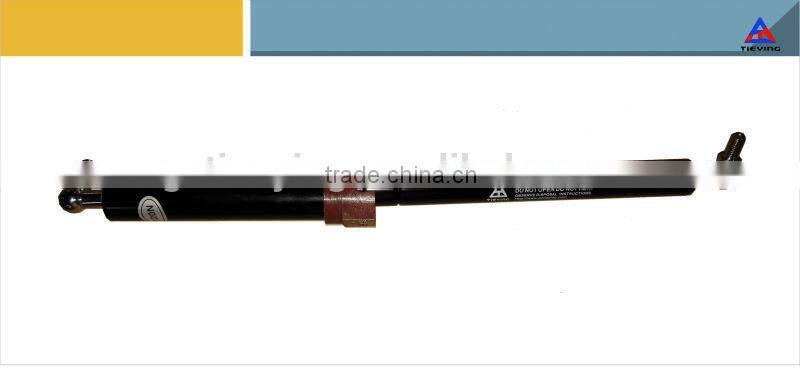

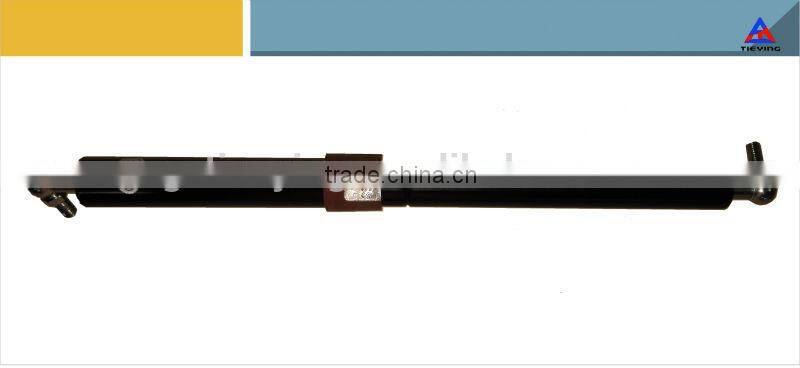

Pictures



Safety locking self locking gas spring YQ10/22-145-475(a-a)120  Safety locking self locking gas spring YQ10/22-145-475(a-a)120Safety locking self locking gas spring YQ10/22-145-475(a-a)120Safety locking self locking gas spring YQ10/22-145-475(a-a)120Safety locking self locking gas spring YQ10/22-145-475(a-a)120



Connectors for Safety locking self locking gas spring YQ10/22-145-475(a-a)120

Safety locking self locking gas spring YQ10/22-145-475(a-a)120





Packaging & Shipping



1. 1 piece in bubble pack or poly bag, 50pcs/carton or as your requirement.



2. Delivery time:7-10days after deposited.



3. Delivery term: FOB & Western Union& Exw.



4. Shipment: your appointed forwarder is acceptable.





Our Services



1. Customization and OEM are welcome.



2. Free samples are available.



3. Trade assurance orders are favored.



Contact Us

 For free samples or more information about gas springs, feel free to contact us.



Attn:Yogi Lu

Skype:Yogi Lu

mobile:+86 13978545423

WhatsAPP:+86 13978545423

QQ:1065002043
