Hydraulic Gas Spring/Struts/Parts For Recliner Mechanism/Chairs Quality Choice
- 6900 Piece / Pieces per Month
- GuangZhou/ShenZhen
- T/T Credit Card PayPal
- sand casting railway engineering machinery parts steel casting for railway
- customer designed steel casting for gearbox cover
- China supplies cast iron casting pump body parts
- precision casting polymeric Insulator flange post insulator fitting
- polymeric insulator fittings railway insulator fittings
- composited insulator end tongue and clevis fitting
Product Details
Place of Origin: | Guangdong, China | Brand Name: | TY | Model Number: | YQ |
Style: | Cylinder | Load Type: | Gas | Material: | Steel |
Usage: | Furniture |
Product Description
Specifications
1. Smooth Functioning2. Durability
3. Lightweight
4. Relialbe
5. Speed Controlled Operation
Rod Diameter: 14mm
Cylinder Diameter: 28mm
Whole Center Length: 802mm
Stroke: 350mm
Force Capacity: 1500N
With Metal End Fittings
Fully damped springs contain separator pistons .This separate the oil from the gas inside the spring ,so that the damping can be very closely controlled in either compression or extension .
1.this gas spring mainly used for machine,Medical Equipment, Machinery ect.
2. 120,000 open and close times guarantee.
3, lead time : sample needs 2-3days to be delivery.
orders need 5-7days to be delivery.
4,MOQ: 50pcs, just can accept exw price for 50pcs.
5,payment terms: T/T, Western Union, Escrow ect.
Rod | Cylinder | Stroke | Extended Length (mm) | Extension Force(F1) |
4mm/0.157" | 12mm/0.472" | 10-150mm - 0.393-5.9" | 2x stroke +30 | 7-200 - 1.54-44lbs |
6mm/0.236" | 15mm/0.590" | 10-150mm - 0.393-5.9" | 2x stroke +30 | 10-400 - 2.25-90lbs |
8mm/0.315" | 18mm/0.708" | 10-300mm - 0.393-11.81" | 2x stroke +48 | 30-700 - 6.75-154lbs |
8mm/0.315" | 22mm/0.866" | 10-300mm - 0.393-11.81" | 2x stroke +48 | 30-700 - 6.75-154lbs |
10mm/0.394" | 22mm/0.866" | 20-800mm - 0.787-31.49" | 2x stroke +47 | 50-1300 - 11.25-286lbs |
12mm/0.472" | 28mm/1.102" | 20-1000mm - 0.787-39.37" | 2x stroke +60 | 100-1700 - 22-375lbs |
14mm/0.551" | 28mm/1.102" | 20-1000mm - 0.787-39.37" | 2x stroke +60 | 150-2600 - 33-573lbs |
Tube Finishing
Black Painted (standard)
Different colors available upon request
Galvanized, Chrome
Stainless Steel (SAE304)
Piston Rod
Hard Chrome plated
Stainless Steel (SAE304)
End Fittings
If not otherwise stated material of the end fittings is metal.
Damping
The spring comfort of a gas spring can be regulated according to your individual requirement.
Damping in extension, in compression, in both directions or without any damping.
Extension Speed
The extension speed is adjustable, within the physical limits, according to your individual request.
Working Temperature
Standard -30 °C to + 80 °C
On request up to -45 °C
On request up to + 200 °C
The Working principle of gas springs
Gas springs are a proven and reliable method of counterbalancing covers, flaps and objects. A gas spring is an energy-storage device filled with nitrogen. A gas spring stores energy by compressing the nitrogen gas within the gas spring. While the gas spring is compressed, the gas chamber volume is reduced due to the intrusion of the shaft into the gas spring tube; thereby causing the gas pressure to rise-storing more energy. This stored energy produces a force in the extension direction making the gas spring extend. More versatile than mechanical springs, TIEYING Gas Springs offer the advantages of speed-controlled dampening, cushioned end motion, simple mounting, compact size, at force curve, and a wide range of available forces.
1 pcs/ polybag, 50 pcs/Carton, 50 cartons/pallet
Can print the logo on the gas struts as per your kind requests
Can use your appointed forwarder or use our forwarder for the delivery
OEM is welcome
We are gas spring factory, with the most competitive price and good quality products, short lead time
Located in GuangZhou, near the seaport, connvenient for the delivery
Will be on your kind service at all the times
With professional enginners and workers
Company Basic Introduction:
Our production range covers nearly all dimensions and forces which are required for your specific application. TieYing Gas Springs are used anywhere in the industrial field.
Besides the automobile and furniture industry, there are innumberable applications in the machinery and equipment design. We can also offer special solutions to meet the requirements in the medical and aircraft industry. The continuous production of special sizes and our extensive stock enable us to meet nearly all requirements within a remarkable short time.

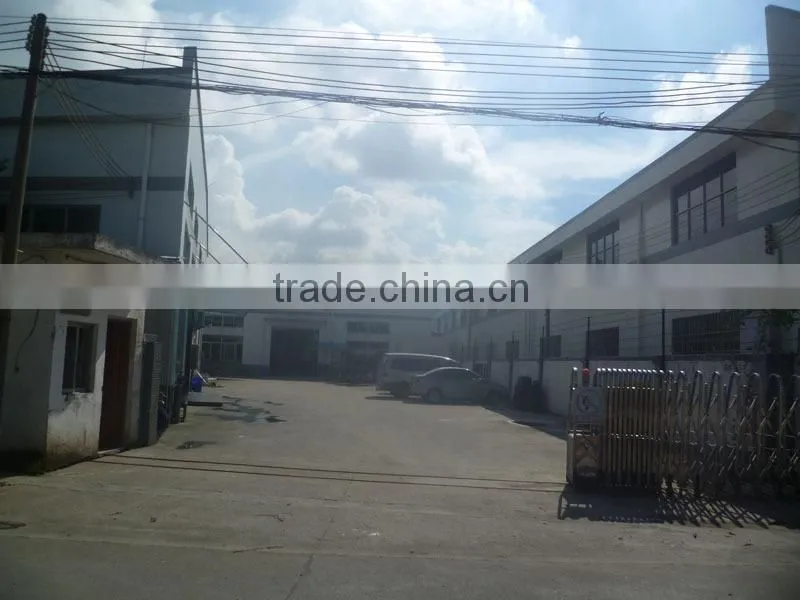

Factory Overview:

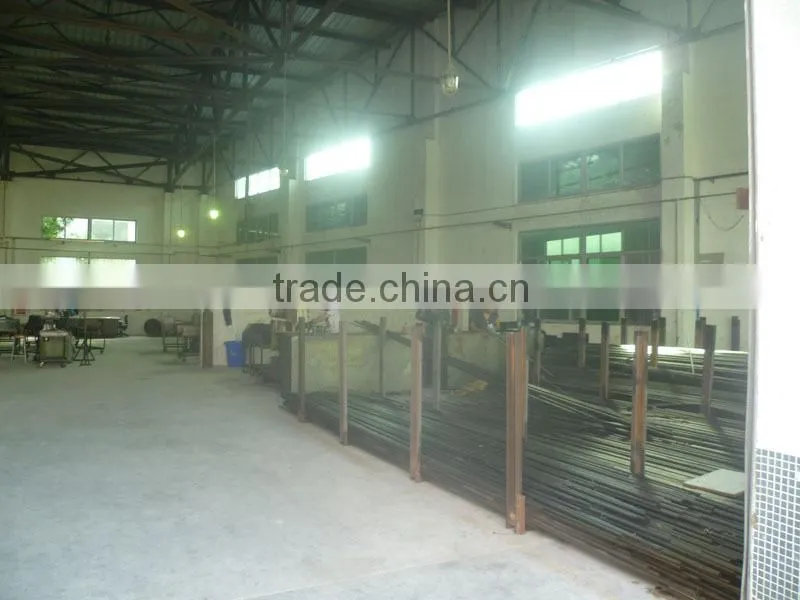

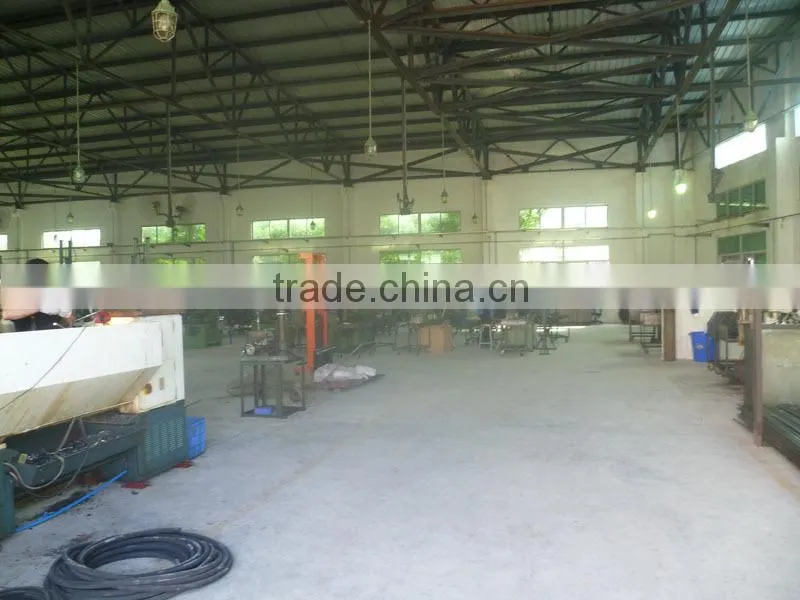

Workshop:

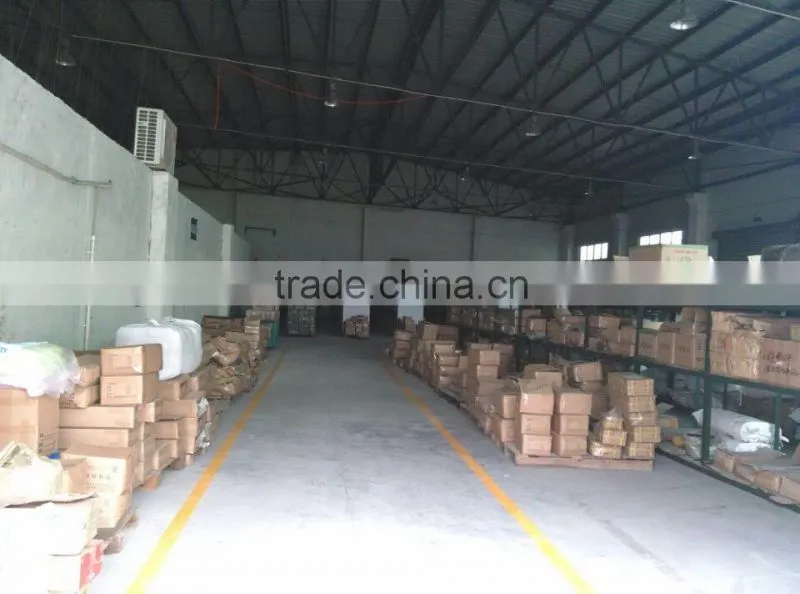

Warehouse:
SGS Certificate:

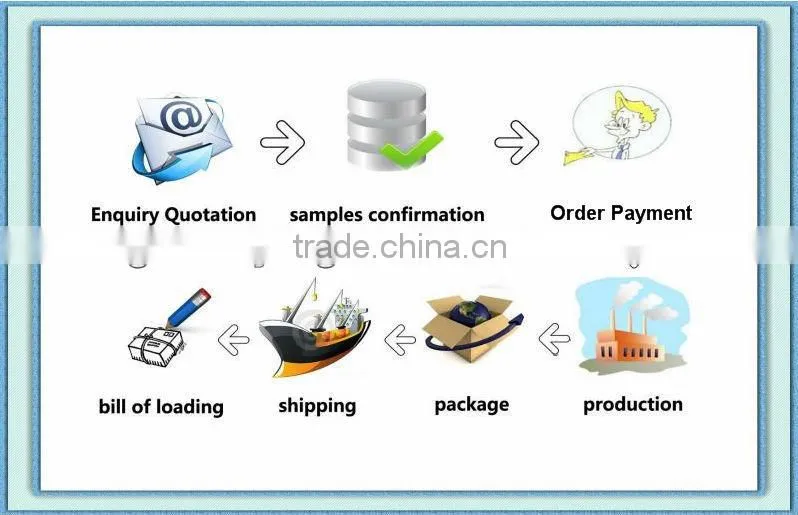

Easy Steps to Order Our Gas Struts:
Many thanks for your kind visit of our Website
Any Interests, pls feel freely to contact :
Ms Ally Zhang
Skype: ally--ty
Mob: +86 139 2516 4780
