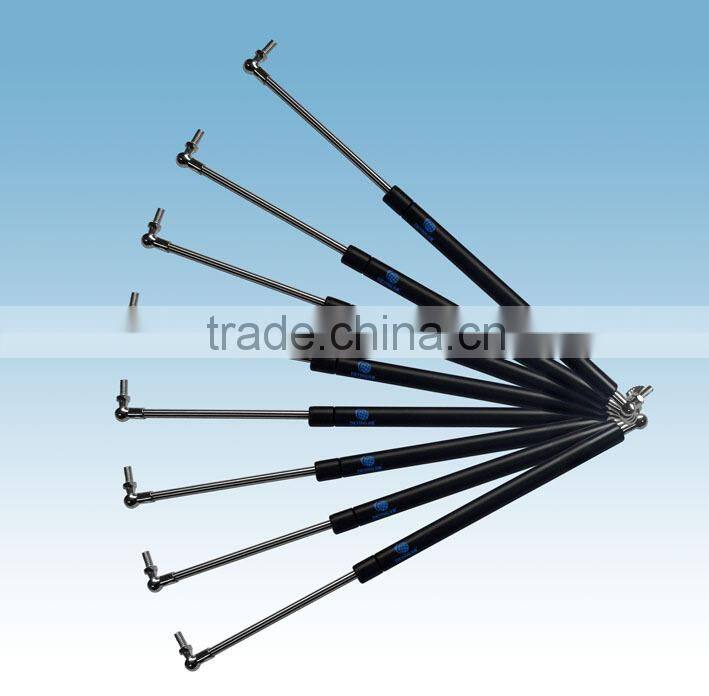

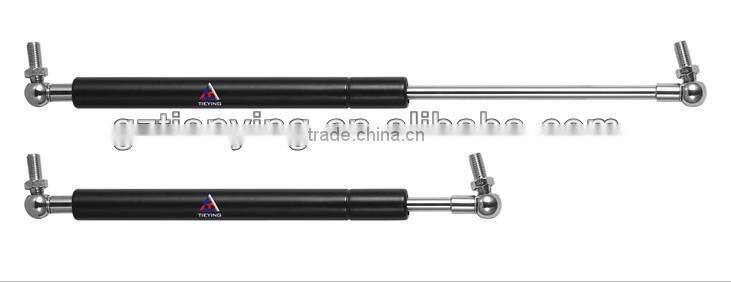

Adjustable Damper/Gas Struts/Prop Lift Springs
Rod |
Cylinder |
Stroke |
Extended Length (mm) |
Extension Force(F1) |
4mm/0.157" |
12mm/0.472" |
10-150mm - 0.393-5.9" |
2x stroke +30 |
7-200 - 1.54-44lbs |
6mm/0.236" |
15mm/0.590" |
10-150mm - 0.393-5.9" |
2x stroke +30 |
10-400 - 2.25-90lbs |
8mm/0.315" |
18mm/0.708" |
10-300mm - 0.393-11.81" |
2x stroke +48 |
30-700 - 6.75-154lbs |
8mm/0.315" |
22mm/0.866" |
10-300mm - 0.393-11.81" |
2x stroke +48 |
30-700 - 6.75-154lbs |
10mm/0.394" |
22mm/0.866" |
20-800mm - 0.787-31.49" |
2x stroke +47 |
50-1300 - 11.25-286lbs |
12mm/0.472" |
28mm/1.102" |
20-1000mm - 0.787-39.37" |
2x stroke +60 |
100-1700 - 22-375lbs |
14mm/0.551" |
28mm/1.102" |
20-1000mm - 0.787-39.37" |
2x stroke +60 |
150-2600 - 33-573lbs |

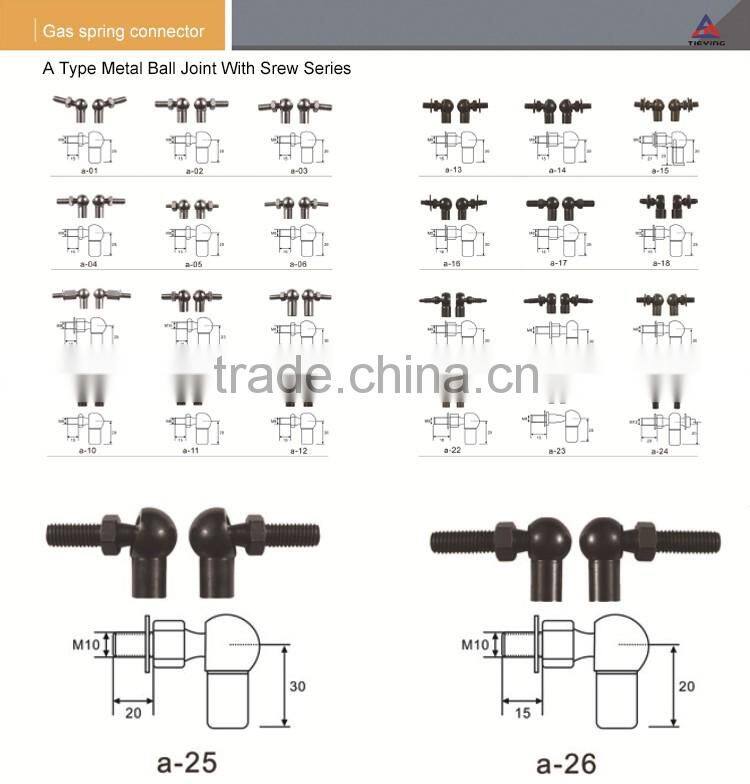

More gas spring connector
Different colors available upon request
Galvanized, Chrome
Stainless Steel (SAE304)
Piston Rod
Hard Chrome plated
Stainless Steel (SAE304)

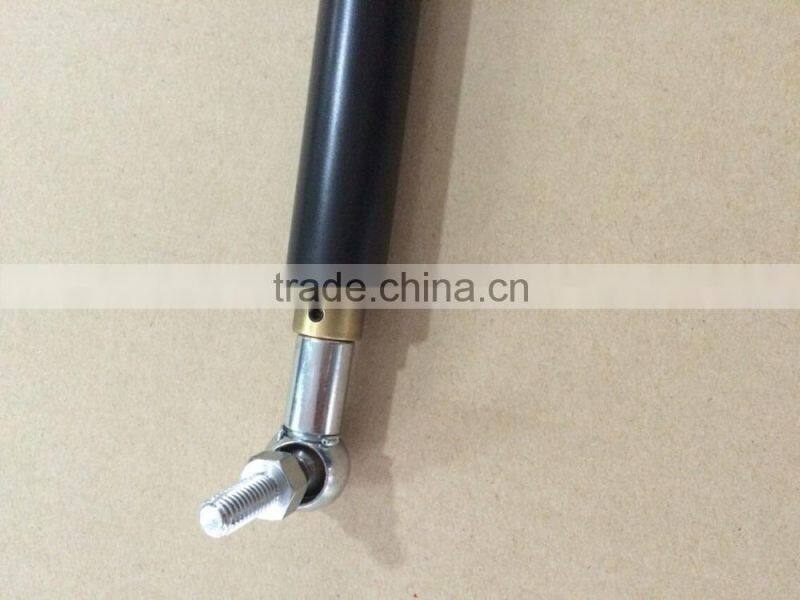

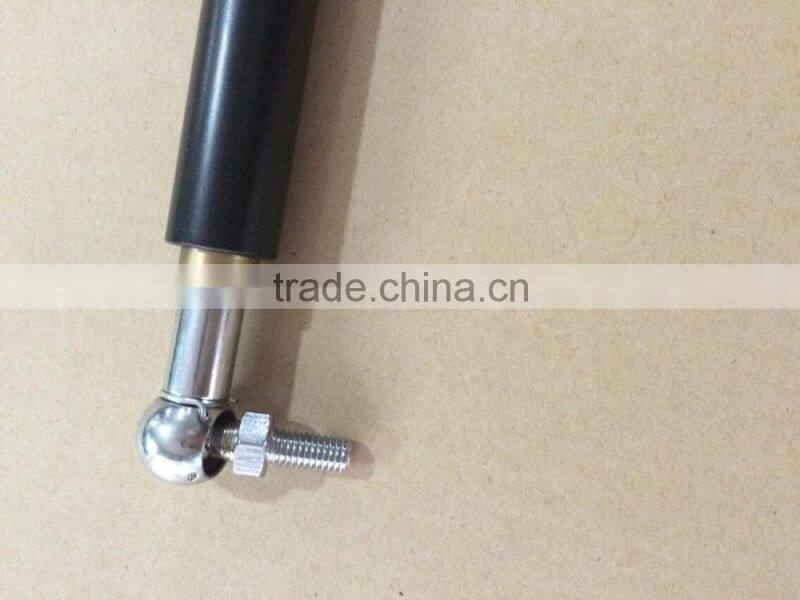

End Fittings
If not otherwise stated material of the end fittings is metal.
Damping
The spring comfort of a gas spring can be regulated according to your individual requirement.
Damping in extension, in compression, in both directions or without any damping.
Extension Speed
The extension speed is adjustable, within the physical limits, according to your individual request.
Working Temperature
Standard -30 °C to + 80 °C
On request up to -45 °C
On request up to + 200 °C
The Working principle of gas springs
Gas springs are a proven and reliable method of counterbalancing covers, flaps and objects. A gas spring is an energy-storage device filled with nitrogen. A gas spring stores energy by compressing the nitrogen gas within the gas spring. While the gas spring is compressed, the gas chamber volume is reduced due to the intrusion of the shaft into the gas spring tube; thereby causing the gas pressure to rise-storing more energy. This stored energy produces a force in the extension direction making the gas spring extend. More versatile than mechanical springs, TIEYING Gas Springs offer the advantages of speed-controlled dampening, cushioned end motion, simple mounting, compact size, at force curve, and a wide range of available forces.
Don't hesitate to contact us or send us inquiry if you like our products. (*^_^*).
