Home > Products > New Products > 10/100M Dual Fiber Optic Media Converter
10/100M Dual Fiber Optic Media Converter
Negotiable
/ Piece
10 Pieces(Min.Order)
- 3000 Piece / Pieces per Month
- SHENZHEN
- T/T Credit Card
You May Like
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | Media Converter |
Product Description

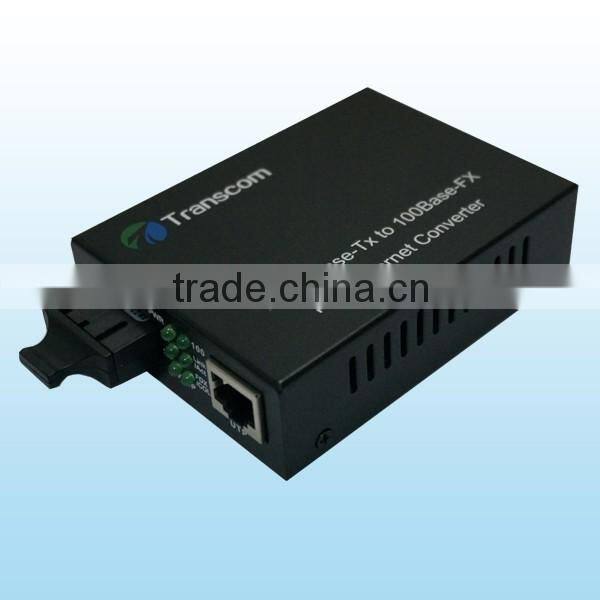

10/100M Dual Fiber Optic Media Converter
Parameter
Parameter | Specifications | ||||||
Access mode | 10/100Mbps | ||||||
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree | ||||||
Wavelength | Mulitmode:850/1310nm; | ||||||
Single-mode:1310/1550nm | |||||||
Transmission distance | Multi-mode: 550m~2 km; | ||||||
single-mode:20~120km; | |||||||
Port | One RJ45 port: For connecting STP/UTP category-5 twisted pairs | ||||||
One or two optical ports | MM: SC/ST/FC (fiber size: 50,62.5/125µm) | ||||||
SM: SC/ST/FC (fiber size: 9/125µm) | |||||||
Conversion means | Media conversion, store-and-forward/cut-through | ||||||
MAC address table | 1K | ||||||
Buffer space | 1Mbit | ||||||
Flow control | Full duplex: flow control; | ||||||
Half duplex: back pressure | |||||||
Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs | ||||||
BER | <19-9 | ||||||
MTBF | 100,000 hours | ||||||
Power supply | DC5V 1A (external) | ||||||
AC220 0.5A/DC-48 (internal) | |||||||
Power consumption | <2W | ||||||
Operating temperature | -10~55ºC | ||||||
Operating humidity | 5%~90% | ||||||
Maintaining temperature | -40~70ºC | ||||||
Maintaining humidity | 5% ~ 90% non-condensing | ||||||
Dimensions | 26mm (H) * 70mm (W) * 94 mm (D) (external power supply) |
Feature
* 10/100m Media Converter | ||||||
* Complies with IEEE802.3 and IEEE802.3u 10/100Base-TX and 100Base-FX | ||||||
* 10/100Mbps and full/half duplex automatically configure in TP port | ||||||
* MDI/MDI-X Auto Negotiation | ||||||
* WDM Technology Combines Dual Fiber Cables into Single Fiber .Greatly save the Installation | ||||||
cost of Expensive Fiber Cable | ||||||
* Wavelength: TX1310nm/RX1310nm or BIDI TX1310nm/RX1550nm;TX1550nm/RX1310nm | ||||||
* Connector: RJ-45 Jack and Fiber optic connectors: SC connector | ||||||
* Cable Model and Length: Twisted pair Cat.5 UTP Cable: 100m |
For more details, pls contact us directly, thanks a lot.
