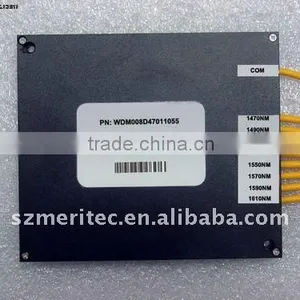

WDM Module CWDM Mux-Demux
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM service offered
Model Number:
WDM Module CWDM Mux-Demux
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDM Module CWDM Mux-DemuxNegotiableMOQ: 10 Pieces -
WDM Module CWDM Mux-DemuxNegotiableMOQ: 10 Pieces
-
Fiber Optic Products---WDM Module CWDM Mux-DemuxNegotiableMOQ: 1
-
Fiber Optic Products---WDM Module CWDM Mux-DemuxNegotiableMOQ: 5 Pieces
-
Telecommunication Equipment---WDM Module CWDM Mux-DemuxNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OEM service offered
Model Number
WDM Module CWDM Mux-Demux
Specifications
WDM NetworkLine Monitoring
Low Insertion Loss
Wide Pass Band
WDM Module CWDM Mux-Demux
Features:
Low Insertion Loss
Wide Pass Band
High Channel Isolation
Epoxy Free Design
High reliability
Application:
WDM Network
Line Monitoring
Telecommunication
Local Area Networks
Testing instruments
Specifications:
Parameter |
4 Channel |
8 Channel |
16 Channel |
|||
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
|
Central Wavelength (nm) |
1270,1290,…1610 |
|||||
Operating Bandwidth(nm) |
CW+/-6.5 |
|||||
Channel Spacing(GHz) |
20 |
|||||
Insertion Loss(dB) |
2.0 |
2.8 |
3.6 |
|||
Uniformity(dB) |
1.0 |
1.0 |
1.6 |
|||
Channel Ripple(dB) |
0.3 |
0.3 |
0.3 |
|||
Adjacent Channel Isolation(dB) |
N/A |
30 |
N/A |
30 |
N/A |
30 |
Non-adjacent Channel Isolation(dB) |
N/A |
40 |
N/A |
40 |
N/A |
40 |
PDL(dB) |
0.10 |
|||||
PMD(ps/nm) |
0.1 |
|||||
Return Loss(dB) |
45 |
|||||
Directivity (dB) |
50 |
|||||
Power Handling(mW) |
300 |
|||||
Operating Temperature (° C) |
-5 ~ +70 |
|||||
Storage Temperature (° C) |
-40 ~ +85 |
|||||
Package Dimensions(mm) |
L120 x W80 xH11.6 |
L142 x W102 x H14.5 |
||||
Note: 1.Insertion Loss does not include connector; each connector will add 0.2dB loss.
2. Other specifications can be made upon customer’s request.
