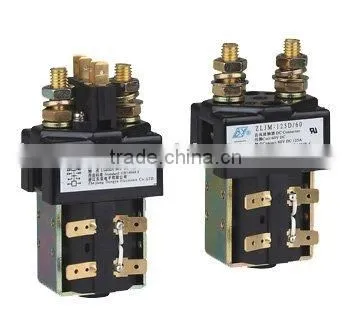

125a DC CONTACTOR RELAY 125D

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

ZLJM-125D

Yueqing Haohua Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OEM

Model Number ZLJM-125D

Electricity Type DC

Number of Pole 2

Main Circuit Rating Voltage Other, 12VDC-120VDC

Main Circuit Rating Current Other, 125A

Model No.	ZLJM—125D/
Contact Arrangement	1H (SPST-NO)
Contact Material	AgCdO(12)
Contact Rating(at Resistive Load)	125A 80VDC 125A 250VAC
Max. Switching Voltage	80VDC,250VAC
Max. Switching Power	25000VA
Endurance of Over Loading Current(7Ie/10S)	875A/10S
Coil Rated Voltage	12,24,48,60,72,96,120VDC,etc
Pick-up Voltage	(40~70) % of coil rated voltage
Drop-out Voltage	(5~30) % of coil rated voltage
Contact Pressure Drop	At most 30mv when 100A
Insulation Resistance	Min. 100MΩ at 500VDC
Dielectric Strength (Between Insulated Electric Parts)	1000VAC 50 HZ/60 HZ (1 minute)
Operate Time	Max. 50mSec.
Release Time	Max. 50mSec.
Ambient Temper	-25℃~+60℃
The shocking of fixed point	(10~200)HZ,Acceleration≤3.5g
Shocking	(60~100) ops/minute,Acceleration≤4g
Mechanical Life	100,000 Operations (no load)
Electrical Life	50,000 Operations (at rated load)

Model No.	ZLJM—125D/
Contact Arrangement	1H (SPST-NO)
Contact Material	AgCdO(12)
Contact Rating(at Resistive Load)	125A 80VDC 125A 250VAC
Max. Switching Voltage	80VDC,250VAC
Max. Switching Power	25000VA
Endurance of Over Loading Current(7Ie/10S)	875A/10S
Coil Rated Voltage	12,24,48,60,72,96,120VDC,etc
Pick-up Voltage	(40~70) % of coil rated voltage
Drop-out Voltage	(5~30) % of coil rated voltage
Contact Pressure Drop	At most 30mv when 100A
Insulation Resistance	Min. 100MΩ at 500VDC
Dielectric Strength (Between Insulated Electric Parts)	1000VAC 50 HZ/60 HZ (1 minute)
Operate Time	Max. 50mSec.
Release Time	Max. 50mSec.
Ambient Temper	-25℃~+60℃
The shocking of fixed point	(10~200)HZ,Acceleration≤3.5g
Shocking	(60~100) ops/minute,Acceleration≤4g
Mechanical Life	100,000 Operations (no load)
Electrical Life	50,000 Operations (at rated load)
