Specifications

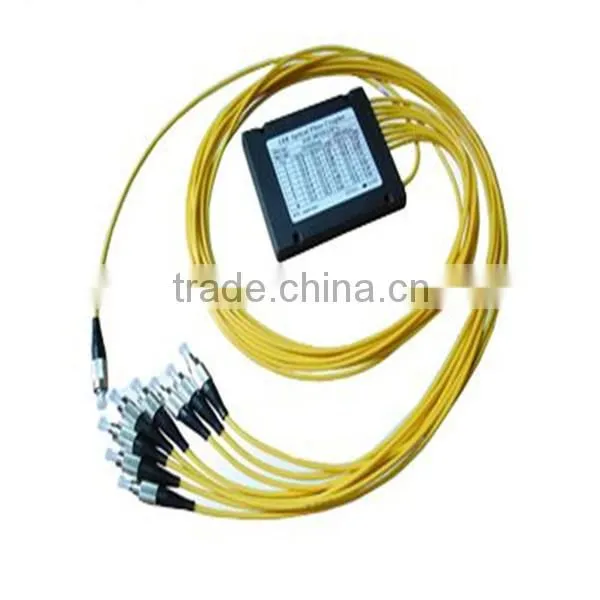

1x8 fiber optic splitterOptical splitter divides light from a single fiber into two or more fiber channels.
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Parameter:
Parameter |
Configuration |
|||
|
N x 4 (N=1,2,4) |
N x 8 (N=1,2,8) |
N x 16 (N=1,2,16) |
N x 32 (N=1,2,32) |
|
Operate Wavelength(nm) |
1310/1550, or customized |
|||
Bandwidth(nm) |
±20 |
|||
Max.Excess Loss(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
Typ.Insertion Loss(dB) |
6.2 |
9.3 |
12.4 |
15.5 |
Max.Insertion Loss(dB) |
6.8 |
10.2 |
13.6 |
17 |
Uniformity(dB) |
1.2 |
1.8 |
2.4 |
3 |
PDL(dB) |
0.08 |
0.12 |
0.16 |
0.2 |
Thermal Stability(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
Directivity(dB) |
≥60 |
|||
|
Operate Temperature(°C) |
-20~+70 |
|||
Lead Length(m) |
customized |
|||
Lead Type(mm) |
φ3.0, φ2.0, φ0.9 |
|||
