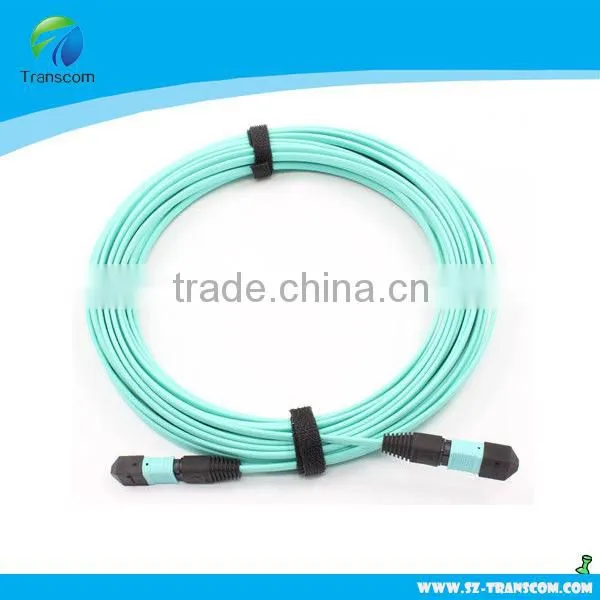

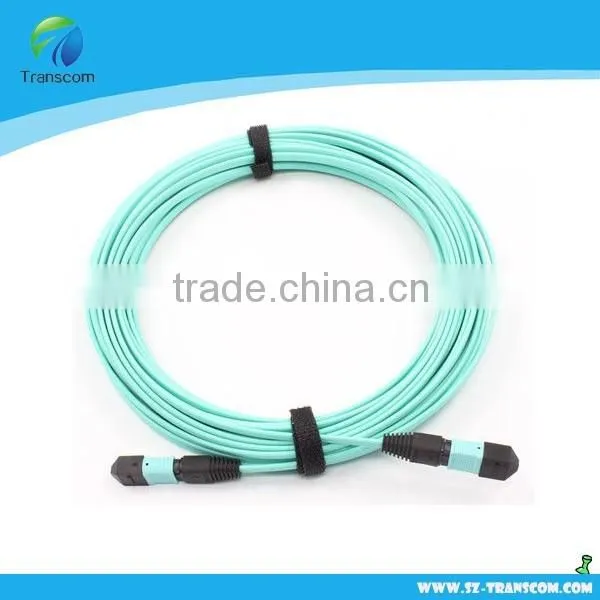

Aqua 5M OM3 Multimode MPO Fiber Jumper Cord LSZH
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
Fiber Optic Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fast Delivery GYTY53 Underground Fiber Optic Cable Manufacturer With High Quality and Competitive PriceUS$ 0.1 - 10MOQ: 2 Kilometers -
GYTA Stranded Loose Tube Cable With LAP Sheath Fiber Optic CableUS$ 0.1 - 10MOQ: 2 Kilometers
-
GYTS Armored Steel Tape Layer Loose Tube Outdoor Optic Fiber Cable Supplier With Cheap Price per MeterUS$ 0.1 - 10MOQ: 2 Kilometers
-
GYXTW Outdoor Armoured Fiber Optic Cable-- Telecommunication EquipmentUS$ 0.1 - 10MOQ: 2 Kilometers
-
Cheap 8 Core Singlemode Double Armored and Double Sheathed Central Loose Tube Outdoor Fiber Optical G.652 Cable: GYXTW53US$ 0.1 - 10MOQ: 2 Kilometers
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
Fiber Optic Cable
Aqua 5M OM3 Multimode MPO Fiber Jumper Cord LSZH
MPO Fiber Jumper Cord Parameter
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
| TIA/EIA-455-107 | ≥55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
MPO Fiber Jumper Cord Standards Compliance
| -Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating. | |||||
| -Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC. | |||||
| -MPO connector complies with IEC-61754-7 & EIA/TIA-604-5. |
|
||||
