Specifications

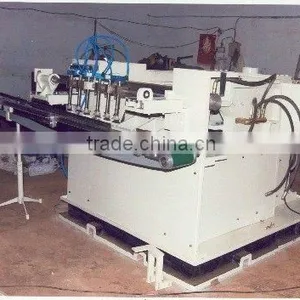

2 Cavity Pneumatic controlled Band less OR Banded Soap Stamping Machine complete with Parallel Feed & Delivery Conveyors,2/4/6 Cavity Pneumatic controlled Band less OR Banded Soap Stamping Machine complete with Parallel Feed & Delivery Conveyors, 3HP Compton Motor with Gear box, A/C drive, safety Guards, safety switches, all the shafts made out of alloy steel , EN-36 Helical Gears are hardened and ground, slide with Cam and boll bearing, Star with Clutch, S.S Die holding plate, Helical Gear with cam for soap pusher, Air function for die insert’s ejecting arrangements, Festo vacuum system for Section cups pick up the soap from the die and deliver it to the delivery conveyor, Section cups holder, Die set with super chilled water circulation facility, spring loaded insert ejecting arrangements to release the soap from the Die, and Trimming plate, Starter with speed variation 40 to45 stroke P/M to get an out put of 110 cakes to120 cakes P/M.
AIR COMPRESSOR.
Automatic slow speed heavy duty air compressor unit 7.5 HP. model tsbr30 air cooled two stage two cylinder set pressure 10.0 kg/cm² piston displacement 28.0 cfm v-belt driven by 7.5 h.p. a.c. 3ph/415v 50hz electric motor and both mounted on a base plate on air receiver of approx 270 litres and supplied with electric motor automatic pressure control switch check valve intake suction filter safety valve pressure gauge drain cock delivery valve belt guard starter etc.
