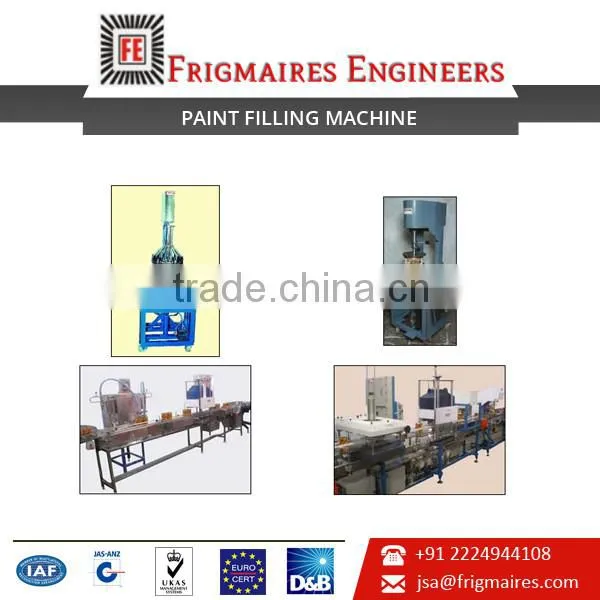

Low Price High Quality Paint Filling Machine with Good Machine Stroke

Paint Filling machine suitable for filling of 30 Ltrs/min of Paint/ Distemper in Tins or Pouches. The machine is also suitable for filling 1 and 4 ltrs cans. The machine is complete with SS 304 contact parts & an electronic counter, one set of spare 'O' rings. The machine is provided with a S.S. 304, 40 liters capacity hopper for paint. The paint is to be fed / pumped into the hopper after straining if necessary.

The machine is driven 0.75 HP, 440 VAC, 3 Phase, and 50 Hz electric motor. The machine is provided with an electronic, two digits and digital preset counter for multi stroke filling. Thus the operator can preset the number of strokes to be filled on the counter enabling the machine to fill quantities upto 99 liters/kgs. Machine stroke can be set at say 1.0 kg per stroke and the counter at 05 strokes.

Therefore the machine, once actuated, can fill 5.0 kgs & stop in each cycle.
Accuracy+/-0.5%. Filling capacity / stroke 200 to 1100 cc adjustable. Actuation By foot switch. Overall dimensions 500 mm W x 600 mm L x 1500 mm H.
Loading & Unloading Manual. Nominal speeds 30 strokes per minute.

Frigmaires an ISO 9001-2008 Company offers complete Plant on Turn Key basis along with the know how / training / formulation to Manufacture Paints, Inks, Dry Mix Mortars , Lubricants , Grease etc.

Over the years as the country was aiming towards self reliance and industrialisation, our firm jointly with our clients took up the challenge in finding solutions and developing cost effective equipment's & process for meeting their stringent requirements. Along with the growth of our clients grew our reputation, experience and knowledge of the manufacturing process and technologies which we wish to pass on to industrialists & entrepreneurs desirous of setting up new industries, expanding or diversifying, their present range of activity.

We have been working closely with our clients to tailor machines to their requirements. We offer trial runs on lab machines to get the manufacturing process right the first time.

Our manufacturing facilities are equipped with machinery and fabrication equipment. Over 90% of our jobs are carried out in house with a team of skilled work force and qualified engineers. Each stage of manufacture is closely inspected for quality and workmanship.
