Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | DYD MOTOR | Model Number: | as per specs |
| Material: | Tungsten Cobalt Alloy | Diameter: | 4 - 20mm | Type: | End Mill |
| Coating: | AlTiN | Overall Length: | 50-150mm |
Product Description
Detailed Description:

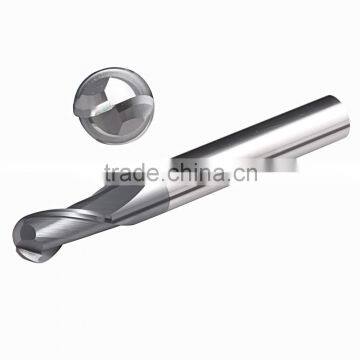

High Quality Cost Effective Wearable Tungsten Solid Carbide Ball nose end mill
Number of Flutes: 2~6
Coating: ALTIN
Quality Grade: A(HRC ≤60°);B(HRC ≤55)°;C(HRC ≤45°)
Product Alias:Ball Nose End Mill, End Mill Product ,Solid Carbide End Mills, Monobloc Milling Tools, CNC Cutting Tolls, Carbide End Mill, Carbide End Mills, Tungsten Carbide End Mill, Cemented End Mills
Other Specifications:
Out Side | Shank | Flute | Overall |
R0.50 | 4 | 2 | 50/75 |
R0.75 | 4 | 3 | 50/75 |
R1.00 | 4 | 4 | 50/75 |
R1.25 | 4 | 5 | 50/75 |
R1.50 | 4 | 6 | 50/75 |
R1.75 | 4 | 7 | 50/75 |
R2.00 | 4 | 8 | 50/75 |
R0.50 | 6 | 2 | 50/75 |
R0.75 | 6 | 3 | 50/75 |
R1.00 | 6 | 4 | 50/75 |
R1.50 | 6 | 6 | 50/75 |
R2.00 | 6 | 8 | 50/75 |
R2.50 | 6 | 10 | 50/100 |
R3.00 | 6 | 12 | 50/100 |
R4.00 | 8 | 16 | 60/100 |
R5.00 | 10 | 20 | 75/100 |
R6.00 | 12 | 24 | 75/100 |
R8.00 | 16 | 30 | 100/150 |
R10.0 | 20 | 30 | 100/150 |
Detailed Description:
High Quality Cost Effective Wearable Tungsten Solid Carbide Ball nose end mill
Number of Flutes: 2~6
Coating: ALTIN
Quality Grade: A(HRC ≤60°);B(HRC ≤55)°;C(HRC ≤45°)
Product Alias:Ball Nose End Mill, End Mill Product ,Solid Carbide End Mills, Monobloc Milling Tools, CNC Cutting Tolls, Carbide End Mill, Carbide End Mills, Tungsten Carbide End Mill, Cemented End Mills
Other Specifications:
Out Side | Shank | Flute | Overall |
R0.50 | 4 | 2 | 50/75 |
R0.75 | 4 | 3 | 50/75 |
R1.00 | 4 | 4 | 50/75 |
R1.25 | 4 | 5 | 50/75 |
R1.50 | 4 | 6 | 50/75 |
R1.75 | 4 | 7 | 50/75 |
R2.00 | 4 | 8 | 50/75 |
R0.50 | 6 | 2 | 50/75 |
R0.75 | 6 | 3 | 50/75 |
R1.00 | 6 | 4 | 50/75 |
R1.50 | 6 | 6 | 50/75 |
R2.00 | 6 | 8 | 50/75 |
R2.50 | 6 | 10 | 50/100 |
R3.00 | 6 | 12 | 50/100 |
R4.00 | 8 | 16 | 60/100 |
R5.00 | 10 | 20 | 75/100 |
R6.00 | 12 | 24 | 75/100 |
R8.00 | 16 | 30 | 100/150 |
R10.0 | 20 | 30 | 100/150 |
