Home > Electrical & Electronics > Electric Motor > DC Motor > 63JW/63ZY 12v 100W dc Motor for Winch 3000rpm
63JW/63ZY 12v 100W dc Motor for Winch 3000rpm
US$ 30 - 120
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DYD MOTOR; DONGZHENG MOTOR
Model Number:
63JW/63ZY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63ZY127-63JW 12V DC Worm Gear Motor With EncoderUS$ 38 - 120MOQ: 50 Pieces -
115ZY245/RV050i50 High Efficiency 12 Volt Worm Gear Motor 1 2 hpUS$ 145 - 900MOQ: 20 Pieces
-
63JW/63ZY 12v 100w Worm Drive Gear Motor dcUS$ 27 - 100MOQ: 50 Pieces
-
24V DC Worm Gear Break MotorUS$ 30 - 800MOQ: 50 Pieces
-
12V, 24V Brushed DC Planetary/Spur/Right Angle/Stepping/Worm Gear Motors High RpmUS$ 6 - 500MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
DYD MOTOR; DONGZHENG MOTOR
Model Number
63JW/63ZY
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Motion Control
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, ISO9001
Type
Other, DC Worm Gear Motor
Torque
Up to 100N.m
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Other, Totally Enclosed, Enclosed
Speed(RPM)
100~5000RPM
Continuous Current(A)
Current
Output Power
30W, 100W, 500W
Voltage(V)
12V 24V 36V 40V 48V
Efficiency
IE 1

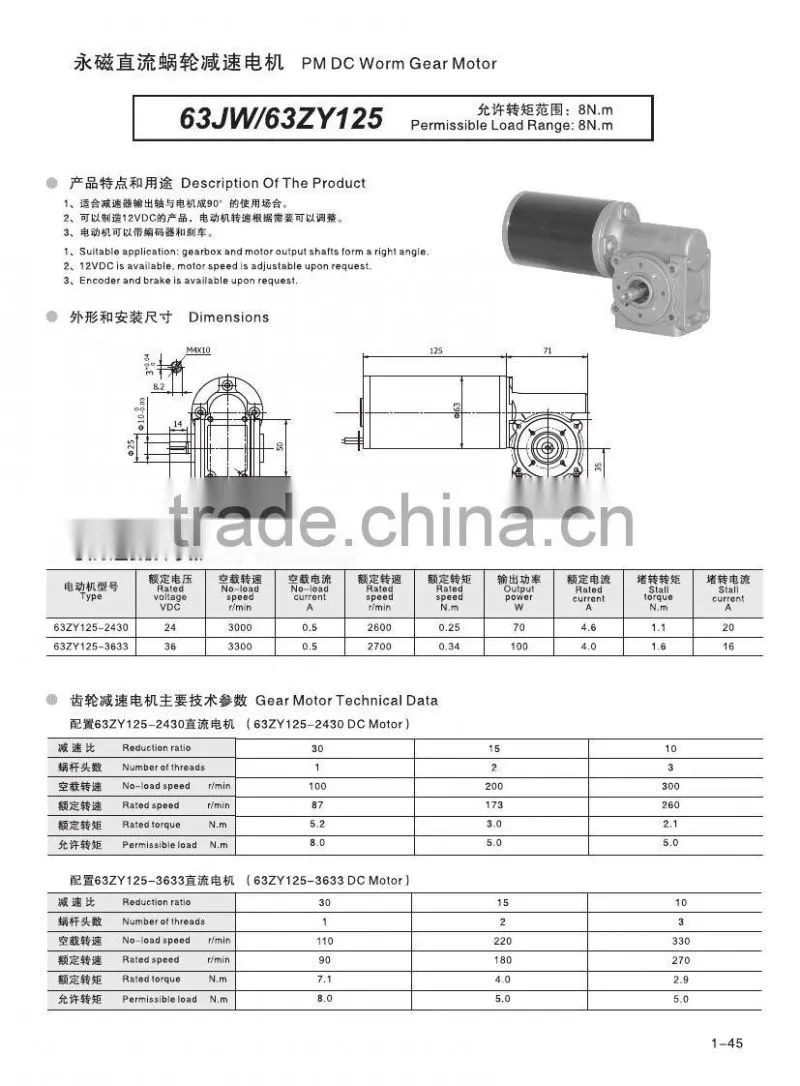

DC WORM GEAR MOTOR/ DC RIGHT ANGLE GEAR MOTOR
Motor technical specifications:
Voltage: 6V DC ~ 440V DC
Speed: 800rpm ~ 6000rpm
Output power: 20W, 25W, 30W, 70W, 100W,150W(customizable)
Motor Outer Diamter 63MM
Motor body length: 105mm; 125mm
DC worm gear motor technical specifications:
Gear ratio: 10:1, 15:1, 30:1, 50:1, 70:1
Optional output shaft: right side shaft, left shaft, hollow shaft, rear end shaft
Output shaft dimensions are customizable.
Optional Accessories
a) 2-channel magnetic encoder(2ppr, 4ppr, 8ppr, 12ppr, etc.), 2-channel or 3 channel optical encoder
b) Power-on/ power-off brake
c) Timing/drive pulleys
d) Connector
e) Optional gear material: plastic, metal; bronze
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
10,000-30,000 square meters
Total Employees
201 - 300 People
