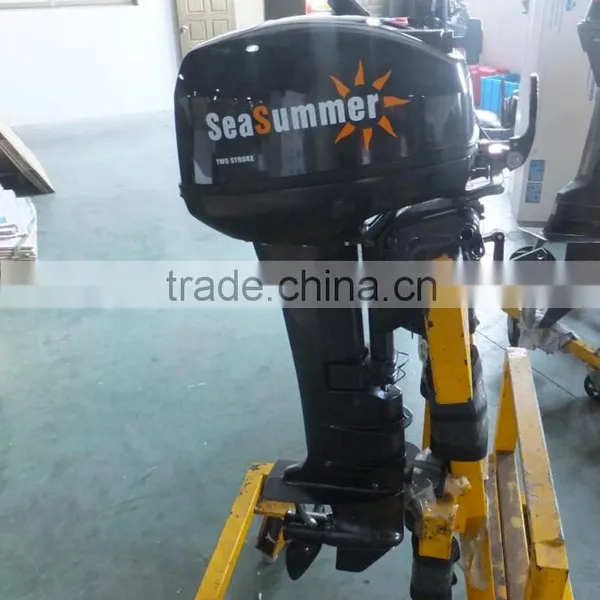

Gasoline engine long shaft T15BML Inflatable rubber boat motor for Australia market

H.P.

15HP

(mm/in)OVERALL LENGTH

873(34.4)

(mm/in)OVERALL WIDTH

330(13.0)

(mm/in)OVERALL HEIGH

1167(45.9)

(mm/in)TRANSOM HEIGH

567(22.3)

ENGINE TYPE

2 stroke

DISPLACEMENT(cc)

246

BORE*STROKE(mm)

56*50

MAX. OUTPUT(hp/kw)

11(15)

RPM

4500-5500

STARTING SYSTEM

MANUAL

IDLING SPEED(IN NEUTRAL)

700-800

TRIM METHOD

MANUAL

IGNITION SYSTEM

CDI

CONTROL SYSTEM

TILLER

GEAR POSITIONS

Forward-neutral-reverse

PROPELLER(in)

3*9 1/4"*8"

Integral fuel tank capacity(L)

Separate fuel tank capacity(L)

24

WEIGHT(KG)

37.5

Fuel :Oil RATIO

50:1

PACKED CASE SIZE(cm)

134.5*80*51

CONTAINER LOADING20/40/40HQ)

48/96/120
