Help Center200N Load 11.5mm/s 2000mm Stroke 12/24V Linear Actuator for Skylight Window-blinds Patient Lifter LA15
Related Products
-
Luxury Electric Hospital Bed With Wooden Head Board and Foot Board Old People Home CareUS$ 800 - 1,000MOQ: 1 Piece -
2014 Hotsale Tin Sign Hanging Poster Wall Decoration Metal Picture Promotional GiftUS$ 1 - 5MOQ: 3000 Pieces
-
Christmas Tree Shaped Tin Boxfor Cookie Tin Can for FoodUS$ 0.1 - 1MOQ: 3000 Pieces
-
2015 Hotsale Wall Decoration Tin Sign Metal Picture Promotional GiftUS$ 0.1 - 2MOQ: 300 Pieces
-
18Liters Medical Dental Autoclave Steam Sterilizer B Class With CE ISO 13485 3 Years WarrantyUS$ 846 - 876MOQ: 1 Piece
For some manufacturer, they think the service is end when they get your payment. But for me, I am serious to after-sales-service as I fully understand how important it is for end user.

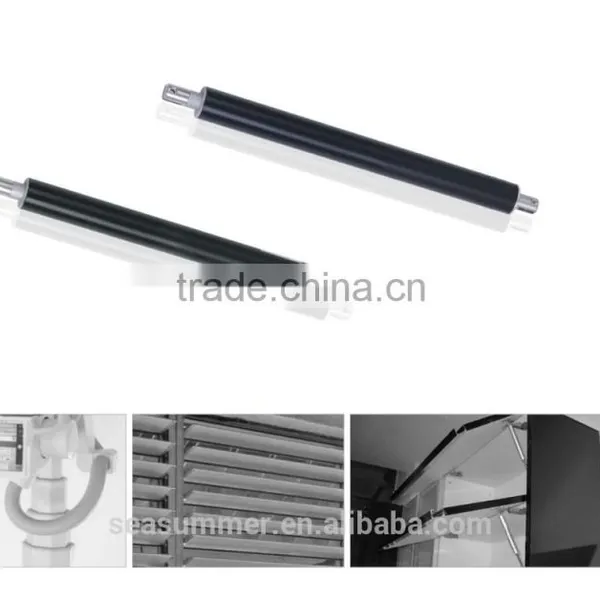

A linear actuator or linear motor is an equipment that creates motion in a straight line. Linear actuators and linear motors are widely used in machine tools and automatical industrial, car window,carboot, in computer peripherals such as disk drives and printers, in valves and dampers, and in many other places where linear motion is required. It can save much human resource and improve working efficiency.
There are 2 recommend LA14 types, different speed, different load. Customer can choose it according to requirement.

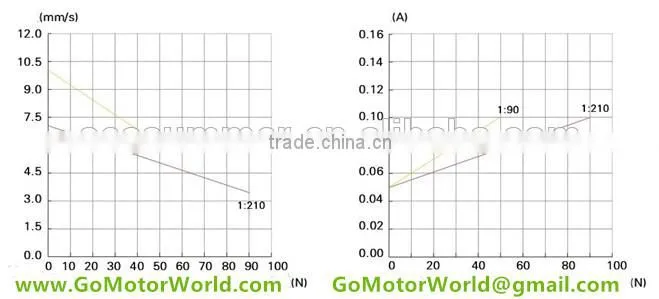

| Type | Load: N | Unload speed:MM/S | Load speed:MM/S | Ration |
Max unload current 24V |
Max load current 24V |
Duty cycle:% |
| LA15-11.5 | 120 | 11.5 | 6.3 | 1:99.5 | 0.04 | 0.36 | 10% |
| LA15-7 | 200 | 7 | 4.5 | 1:107 | 0.04 | 0.36 | 10% |

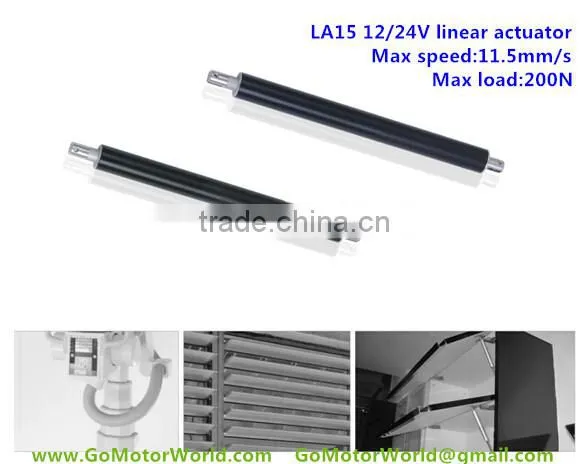

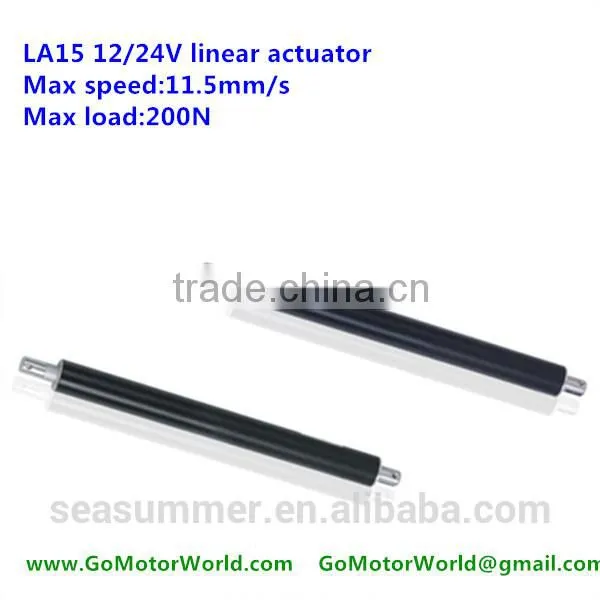

12V 24V DC linear actuator 12V 24V DC motor for car window or carboot with CE LA15 type
Spec:
| Type | LA15 |
| Input option | 12/24VDC |
| Diameter | 30mm |
| Load(Thrust) capacity option | 120~200N|15~20KG|33~44LBS |
| Speed option | 4.5~11mm/s|0.18~0.44inch |
| Limited switch | Built-in (not adjustable) |
| Duty cycle | 10% |
House material |
Aluminum Alloy |
| Inner tube material | Stainless steel |
| Stroke length option | 0~2000mm|0~80inch |
| Noise | ≤52dB |
| Color option | Grey/black |
| Operation temperature | -26°C ~ +65°C |
| Max IP class | IP65 |
| Safety certificate | CE |
Drawing:
Lmin = Retracted length= 210mm + Stroke
Lmin means the length when linear actuator 100% fully retracts, meanwhile, it will touch the tail limited switch.
Lmax = Max extended length= Lmin + Stroke = 210mm + 2*Stroke
Lmax means the length when linear actuator 100% fully extends, meanwhile, it will touch the head limited switch.
The product is packed with thick foam and export wooden box. It can help product prevent from damage during delivery.
Our company is located in Jiaxing, in the south of Shanghai, 30mins by high speed train. The team is with 8 engineers and 40 workers. The production capacity is more than 10000pcs linear actuator per month. We work with Zhejiang University to build another R&D research center since 2010.
We accept Paypal, Western union, T/T and Escrow payment. If custom wants to pay via other method, please inform us firstly.
If you want OEM service, please let me know.
Small order is acceptable.
