Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > Energy Storage System (20kWh)

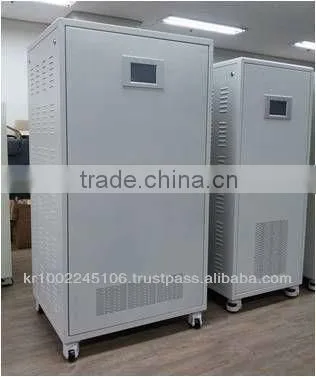

Energy Storage System (20kWh)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Seoul, South Korea
Brand Name:
Hande Co.,Ltd.
Usage:
UPS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Seoul, South Korea
Brand Name
Hande Co.,Ltd.
Usage
UPS
Weight
502 kg
Specifications
Fast charge in one cycle without cell balancing discharge process - Patented[Standard product – 20 kWh with 6 kW PCS]
| Battery | Rated storage energy | 20, 720 Wh |
| Cell type | 200 Ah lithium ion polymer | |
| Cell configuration | 14S2P200Ah | |
| Output voltage ranges | 38 VDC to 58 VDC | |
| Fast charge | 6,000 Watt | |
| Active cell balancing | CC/CV charging 6A (4.15V) | |
| AC output | Output power (Continuous) | 6,000 Watt |
| Waveform | True sine wave | |
| Phase | Single | |
| Frequency | 60±0.1 Hz | |
| Total harmonic distortion | < 5% | |
| Efficiency (CEC Weighted) | 93% | |
| Power factor corrected charging | 0.99 | |
| Emissions | FCC Class B | |
| UPS | Transfer time | 8 ms |
| Transfer relay | 60A | |
| Physical | Dimension (W x D x H) | 920 x 760 x 1,760 mm |
| Weight | 502 kg |
[Feature]
1) Fast charge in one cycle without cell balancing discharge process – Patented
2) 6 kW PCS (Schneider CE/FCC approved) integrated
3) Maintenance by cell module, not battery module
