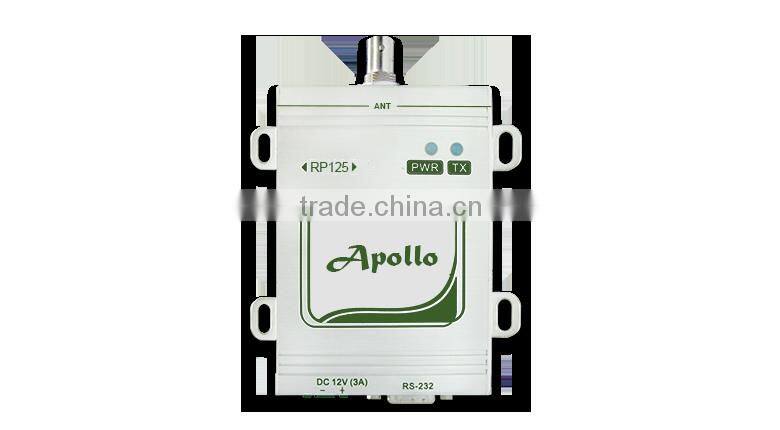

Help CenterGOLD APOLLO - Uhf Radio Repeater Vhf Repeater Uhf Repeater
Related Products
-
GOLD APOLLO - Handheld POCSAG USB Transmitter / UHF Transmitter / VHF TransmitterUS$ 1 - 9,999MOQ: 1 Set -
GOLD APOLLO - Handheld POCSAG USB Transmitter / Vhf Wireless Transmitter/ Uhf Wireless TransmitterUS$ 1 - 9,999MOQ: 1 Set
-
GOLD APOLLO - Vhf Uhf Amplifier Signal Amplifier Wireless AmplifierUS$ 1 - 9,999MOQ: 1 Set
-
GOLD APOLLO - Wireless Paging System Transmitter / Desktop Transmitter / Receiver and TransmitterUS$ 1 - 9,999MOQ: 1 Piece
-
GOLD APOLLO - Guest Paging System Restaurant Guest Paging System Wireless Guest Paging SystemUS$ 1 - 9,999MOQ: 1 Piece
Paging Technology has to be provided the critical communication. Even today pager has more reliable, survivable and affordable. Gold Apollo offers paging solution, both with POCSAG & FLEX, message display including Alphanumeric / Numeric / Tone only / Voice type and paging transmitter for many industries such like hospital, system integrated or any emergency organization necessary.
|
|
Additional Information
| Frequency | 135~174 MHz, 430~470 MHz |
|---|---|
| Channel Spacing | 12.5KHz / 25KHz |
| Output Power | 1W / 5W |
| Modulation Type | F3D, F3E |
| Intermediate Frequency | 45 MHz & 450 KHz |
| Power Supply | DC 10V 14V |
| Current Consumption | Standby: 100mA; TX (5W): < 1.2~1.8A; TX (1W): < 0.5 ~0.9A |
| Transmitter | ————————————– |
| Carrier Power | HI: 5W ±0.5dB; LO: 1W ±0.5dB |
| Frequency Stability | ±5 ppm@VHF; ±3ppm@UHF |
| Frequency Deviation | 12.5kHz Channel Spacing: 2.5kHz ~ 1.8kHz (Peak), 25 kHz Channel Spacing: 5kHz ~ 3.8kHz (Peak) |
| Adjacent Channel Power | < 80dBc |
| Conducted Spurious Emission | -57dBc |
| Receiver | ————————————— |
| Sensitivity | -WB 512 bps<-120 dBm, WB 1200bps<-199 dBm, WB2400 bps <-116 dBm |
| Receiver AF Response | DC ~ 1.2kHz-3dB |
| ACS | 12.5 kHz Channel Spacing: > 52 dB, 25 kHz Channel Spacing: > 60dB |
| Spurious Response Rejection | 70 dB |
| Image Response | > 70 dB |
| IF Response | > 70 dB |
| IRR | ±25kHz / 50kHz: 65dB; ±50kHz / 100kHz: 65dB |
| Dimension (mm) | 65.50 (W) x 30.05 (H) x 95.00 (D) |
| Weight | Approximately 245g (Without Antenna) |
KEY WORD: uhf radio repeater, vhf repeater, uhf repeater
|
|
Contact Detail:
Teresa |
Sales Representative: Teresa Wu Company Name: Gold Apollo Co., Ltd Phone: 886-2-26988888 #13 Skype: teresa_apollo Region in charge: Middle East, Oceania, Asia |
Alston |
Sales Representative: Alston An Company Name: Gold Apollo Co., Ltd Phone: 886-2-26988888 #16 Region in charge: South America, North America |
Elvis |
Sales Representative: Elvis Wang Company Name: Gold Apollo Co., Ltd Phone: 886-2-26988888 #27 Skype: elvis_goldapollo Region in charge: Africa, Europe |
