GOLD APOLLO - guest pager waterproof pager wireless pager

Guest calling paging system is simple, affordable and a perfect solution for restaurants, food court, coffee shops and bars. Our guest calling paging system supports the idea of wanting to improve guest dining experiences, and customers may now roam around freely with our guest calling paging system such as A02, A05, A06 and A07 series in hand while their order/table is being prepared. The guest calling paging system increases revenues, also provides good quality of customer services and improves your overall satisfaction.

GOLD APOLLO - guest pager waterproof pager wireless pager

GOLD APOLLO - guest pager waterproof pager wireless pager

GOLD APOLLO - guest pager waterproof pager wireless pager

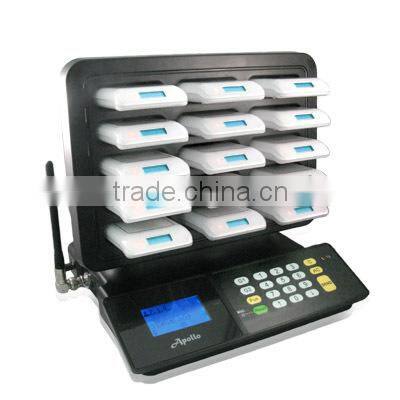

Transmitter  A07 TCP Product Description

  • Desk type Wireless POCSAG Transmitter with charger
  • Guest call application
  • Friendly user interface
  • 15 pagers for one set ; extension up to 60 pagers ; 3 extentions smart charger via cable
  • Large LCD display, easy to read
  • Manual chage alert type
  • Find pager ,Range, test , pager off functions
  • 2 Group call buttons; pre-programmable message to call staff.



Application Guest Paging and Staff Call
Frequency range TX VHF 138~174 MHz, UHF 430~470MHz
Modulation Type FSK
Channel Spacing 12.5 KHz / 25 KHz
Output Power 1W
Maximum Deviation ±2.5KHz / 4.5 khz
Harmonic Radiation 60dBc of less -36dBm
Frequency Stability ±2.5 ppm at -10°C~+60°C
Output Connect BNC (F)
Current Consumption Standyby: 120mA; Transmit: 420mA
Dimension (mm) 274.53 (W) x 242.69 (H)
Weight 2170 g











 GOLD APOLLO - guest pager waterproof pager wireless pager

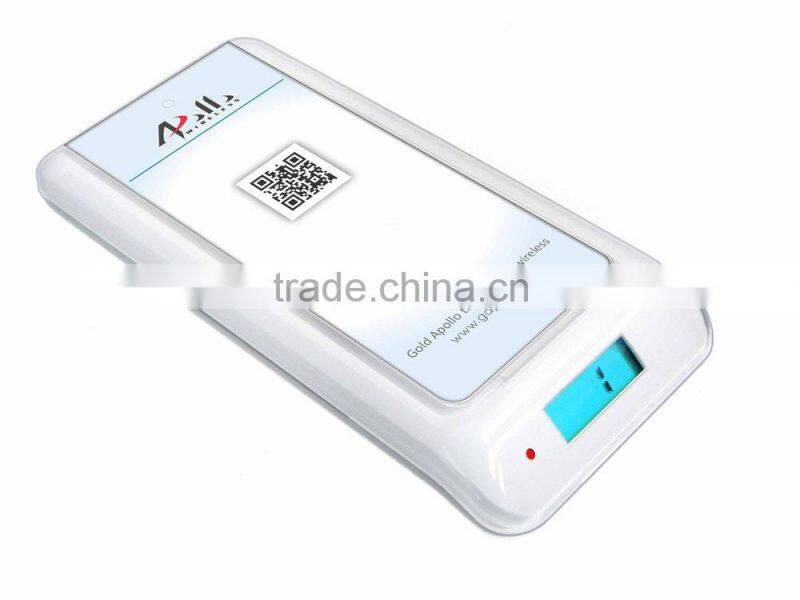

Waterproof Pager  A07 Product Description

  • Large area for advertisement ( 45x 107 mm)
  • For guest paging / Compact size
  • Highly recommend to use with Desktop transmitter
  • Waterproof pager / Dust Proof IP67
  • LCD Display ( 00~899 digits ) with blue backlight
  • PC programmable
  • Tone, vibrate, and flashed (dual color LED) alert
  • Over the air “off “
  • 4 addresses (with four functions per address)
  • Two LED (Heartbeat, Alert, Out of range, Low battery)
  • Ni-MH Rechageable battery






Frequency 430~470 MHz
Paging Sensitivity 1200bps -- 7uV/M
Bit Rate 1200bps for POCSAG
Channel Spacing 12.5KHz / 25KHz
Code Format POCSAG
Spurious Rejection 40db below carrier
Alert Tone Loudness 78db @ 10 cm
Capcodes 4 Capcodes for POCSAG
Dimension (mm) 135(L) x 63(W) x 18(H)
Weight (with battery) 127g





Q & A

Q1: How long does it take for A07 pager’s first charging?

A: At least 13 hours.

Q2: How to program A07 pager?

With automatic programming function, you don’t have to program tons of pagers one after another by programming kit. A07TCP can do that very quickly at same time by itself.

Q3: What does G1 and G2 stand for on the panel of A07TCP?

A: G1 and G2 stands for “Group1” and “Group2” respectively. A07TCP can make a combination with Staff Call A03. Staffs with A03 can be set into two different groups such as waiters and managers. Once setting done, you can page them(G1, G2) by A07TCP with different purposes.



KEY WORD : guest pager  waterproof pager  wireless pager

Packaging & Shipping

Packaging & Shipping

  • Simple and protective pager box with bubble bag
  • 1 week for arrangement after receive the payment
  • Door to Door: DHL, FedEX, UPS and EMS
  • Forwarder: Sea/Air Transportation
Payment : T/T 30% for down payment, 70% balance before delivery
Our Services
GOLD APOLLO - guest pager waterproof pager wireless pager

  • Accept inquiry for requesting sample and any technical problem.
  • Well-educated sales and RD department respond with various solutions in a short time.
  • Provide essential documents, instruction or hands-on videos if necessary.
  • Sell products with best architecture and endurance compare to anyone else.
  • 18-month warranty is provided to every our customer.
