GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call

GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call thumbnail-1
GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call thumbnail-2
GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call thumbnail-3
GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call photo-1
GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call photo-2
GOLD APOLLO - Wireless Service Bell Wireless Calling System Waiter Call photo-3
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
GOLD APOLLO
Model Number:
Transmitter JD-170 / Receiver RE-300T
Contact Supplier Request Quote Chat Now
Gold Apollo Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name GOLD APOLLO
Model Number Transmitter JD-170 / Receiver RE-300T
GOLD APOLLO - wireless service bell wireless calling system Waiter Call

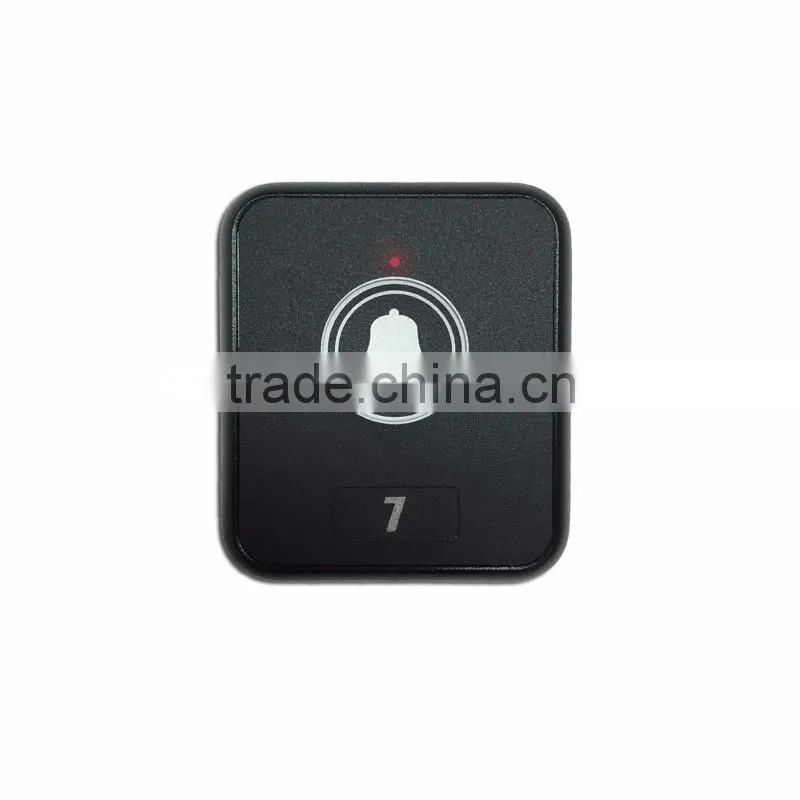

Table call button  JD-170


  • To be placed at specific place
  • Mini-size with fashion appearance
  • Enhance service efficiency
  • Durable battery life

Frequency TX 865-875 MHz
RF Code Format TI Format
Transmitting Power 10 mW
Battery Type CR2450 3V/600mA
Battery Life 20 times per day : about 1 year
Power Consumption 1200
Conducted Spurious Emission Standby mode:<8uA ; TX mode : <60mA
Dimension (mm) 47(W)×41(H)×15(D)
Weight (with battery) 22.5 g









 GOLD APOLLO - wireless service bell wireless calling system Waiter Call

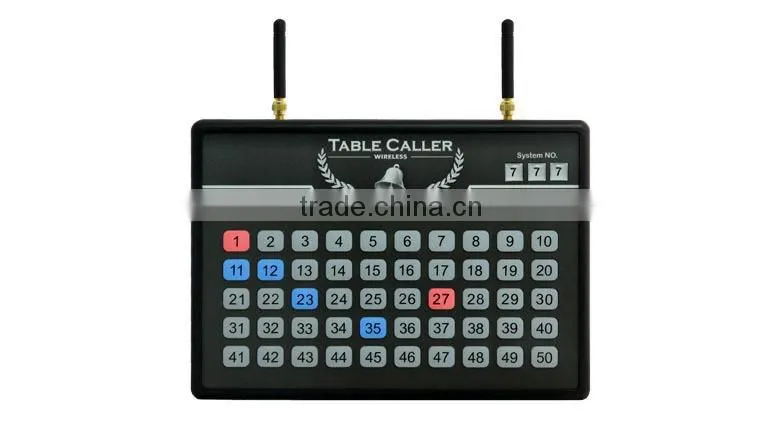

Receiver RE-300T


  • Wireless waiter call system
  • Manual programmable
  • UHF band
  • One set support 50pcs table call button
  • Easy self installation
  • Increasing service quality
  • Completely wireless
  • Dual color LED indicates the service status
  • Coverage can reach 400-meter radius in free space
  • Receiver RE-300T frequency (RX:865-875 MHz, TX:430-470)



Frequency RX 865-875 MHz
Baud Rate(bps) 1200
Channel spacing 12.5 / 25KHz
Paging Sensitivity(dBm) -122dBm @1200
Selectivity (25kHz) >=50dB
Spurious & Image Rejection >=50dBm
Frequency Stability <= ±3ppm
Receiver Type Synthesized
Frequency Deviation ±2.5KHz, ±4.5KHz
Alert Tone SPL >= 80dB@ 10cm
Operation Temperature -10º~+60º C
Storage Temperature -10º to +60ºC
Power Supply DC 5V / 1A
Dimensions (mm) 232 (L) x 170 (W) x 50 (H)



 Keyword:  wireless service bell  wireless calling system  Waiter Call



Packaging & Shipping

Packaging & Shipping

  • Simple and protective pager box with bubble bag
  • 1 week for arrangement after receive the payment
  • Door to Door: DHL, FedEX, UPS and EMS
  • Forwarder: Sea/Air Transportation
Payment : T/T 30% for down payment, 70% balance before delivery
Our Services
GOLD APOLLO - wireless service bell wireless calling system Waiter Call

  • Accept inquiry for requesting sample and any technical problem.
  • Well-educated sales and RD department respond with various solutions in a short time.
  • Provide essential documents, instruction or hands-on videos if necessary.
  • Sell products with best architecture and endurance compare to anyone else.
  • 18-month warranty is provided to every our customer.
Company Information

Welcome To Gold Apollo

Gold Apollo Co., Ltd. is a manufacturer specialized in wireless paging system, with wide spectrum of products we can offer total solution to various occasions and customized paging systems.

  • We obtained certification of international quality assurance ISO9001 by AFAQ-FNOR in 2008. Through ISO, we can continuously monitor our process and ensure to make every effort for enhancement of our products quality and reliability.

  • We have the best qualified and fully experienced R&D team to develop new solutions to serve your needs. Any customized projects are welcome.

 We Offer Are

  • System solutions for hospitality, hospital, caring center or on-site paging.

  • Wireless transmitter and receiver. Receivers with various types such as Tone only, Numeric, Alphanumeric, Voice pager or LED displays. IP standard are available. Transmitter with frequency (VHF) 138-174 MHz, (UHF) 430-470 MHz and 868.25 MHz. Output power in wide range 10mW to 5W.

  • Wireless data-transmitting or wireless control usage.

Company Profile


Company : Gold Apollo Co., Ltd.

President : HSU,CHING-KUANG

Established : October, 1995

Major Business: Wireless Communication

Employee : 40 People

Address : Rm. 1, 3F., No.77, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.)

Tel : +886 2 2698 8888

Fax : +886 2 2698 1750

Web Site : .tw
