Home > Products > LAUNCH CAR LIFT > Manufacturer directly supply High Quality cheap car lifts for sale

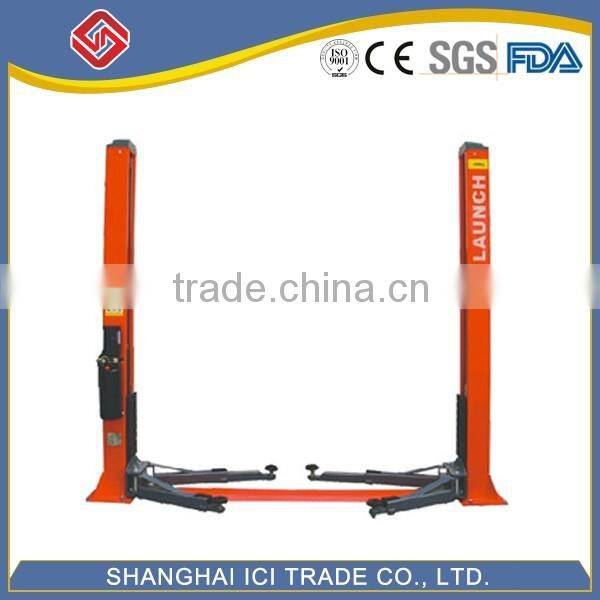

Manufacturer directly supply High Quality cheap car lifts for sale
- 1000 Set / Sets per Month
- SHANGHAI
Product Details
Design: | Two Post | Type: | Double Cylinder Hydraulic Lift | Certification: | CE |
Lifting Capacity: | 4000kg | Lifting Height(mm): | 1850mm | Overall Width(mm): | 3370mm |
Place of Origin: | Zhejiang, China | Brand Name: | LAUNCH | Model Number: | TLT240SB |
Warranty: | 1 Years |
Product Description
Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and
elegant appearance.
Double hydraulic cylinder and high strength chain drive
makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous
movement of two carriages and effectively prevents vehicle
form tilting.
24V low voltage control box(IP54 level)ensures operator's
safety .
24V cylinder travel limit switch effectively protects cylinder
and extends its lifespan .
Door rubber pad protects car door from being damaged in
collision.
More lifting pads with different height meets the
requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading
test.
Specification
Rated load: 4000kg
Lifting height: 1850mm
Initial height: 110mm
Lifting time: 50s
Lowering time: 20s 40s
Passing width: 2486mm
Overall width: 3370mm
Overall height: 2860mm
Motor power : 2 .2kw
Motor voltage: 3 phase/380v or Single phase/220V
Working noise: 75dB(A)
Working oil pressure: 18M Pa

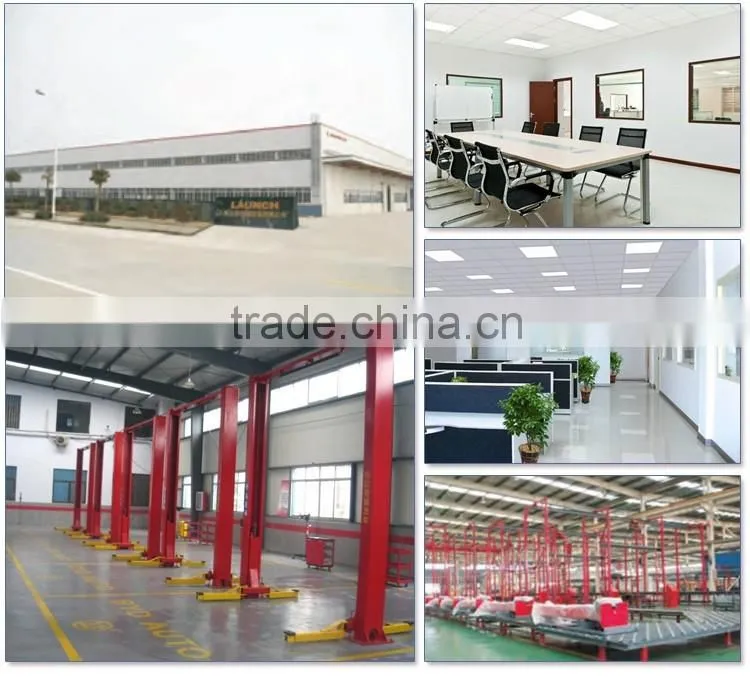

ICI has developed several production lines, including Launch shanghai Auto Diagnosis, Launch shanghai Auto Testing,Launch shanghai Auto Cleaning, Launch shanghai Tire Machine, Launch shanghai Auto Electron, Launch shanghai Hand tools, and so on.
Taking mission of Offering high-quality products, technology and service for Auto field, ICI has set up cooperation relationship with almost all the mainland Automobile Manufactories and become their full range maintenance equipment and technology supplier.
ICI adheres to People Oriented, scientific management, transcend limits and Continuous Innovation,following the road of technology management,industrialization,collectivize and internationalization to struggled forward to form a one hundred years multinational enterprise.
Contact Us
- Shanghai ICI Trade Co., Ltd.
- Contact nameICI Shanghai
- Phone86-21-64852385
- AddressRoom A093, Bldg. 10, No. 1088, Fanghe Road
